CRYSOUND acoustic cameras offer cutting-edge solutions for precise leak detection, partial discharge identification, and mechanical fault diagnosis. Equipped with high-performance microphone arrays and cutting-edge algorithms, our acoustic imaging cameras provide unparalleled precision and reliability. Each of our acoustic imagers is designed to enhance safety, efficiency, and performance across diverse industries.
NEW

CRY3012 Sound Calibrator

Frequency 1000 Hz
Frequency Accuracy < 0.5 Hz
Sound Pressure Levels (SPL) 94 dB
NEW

CRY3016 Sound Calibrator

Frequency 1000 Hz
Sound Pressure Levels (SPL) 94 dB / 114 dB
Compliance Standard IEC 60942:2017 Class 1
NEW

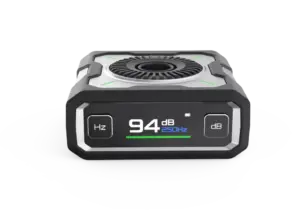

CRY3018 Sound Calibrator

Frequencies 1000 Hz, 250 Hz
Sound Pressure Levels (SPL) 94 dB / 114 dB
Compliance Standard IEC 60942:2017 Class 1

CRY3101 Free-field Microphone, 1", Prepolarized, 50mV/Pa

Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 4Hz to 16kHz±2dB

CRY3101-S01 Free-Field Microphone Set, 1", 50mV/Pa

Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 4Hz to 16kHz±2dB

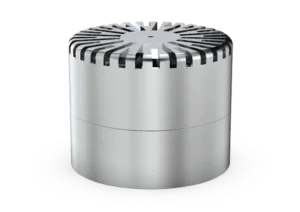

CRY3102 Pressure-field Microphone, 1", Prepolarized, 50mV/Pa

Field Type Pressure-field
Sensitivity 50mV/Pa,-26±1.5dB re 1V/Pa
Frequency Response 4Hz to 8kHz±2dB

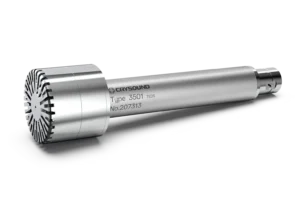

CRY3102-S01 Pressure-Field Microphone Set, 1", 50mV/Pa

Field Type Pressure-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 4Hz to 8kHz±2dB

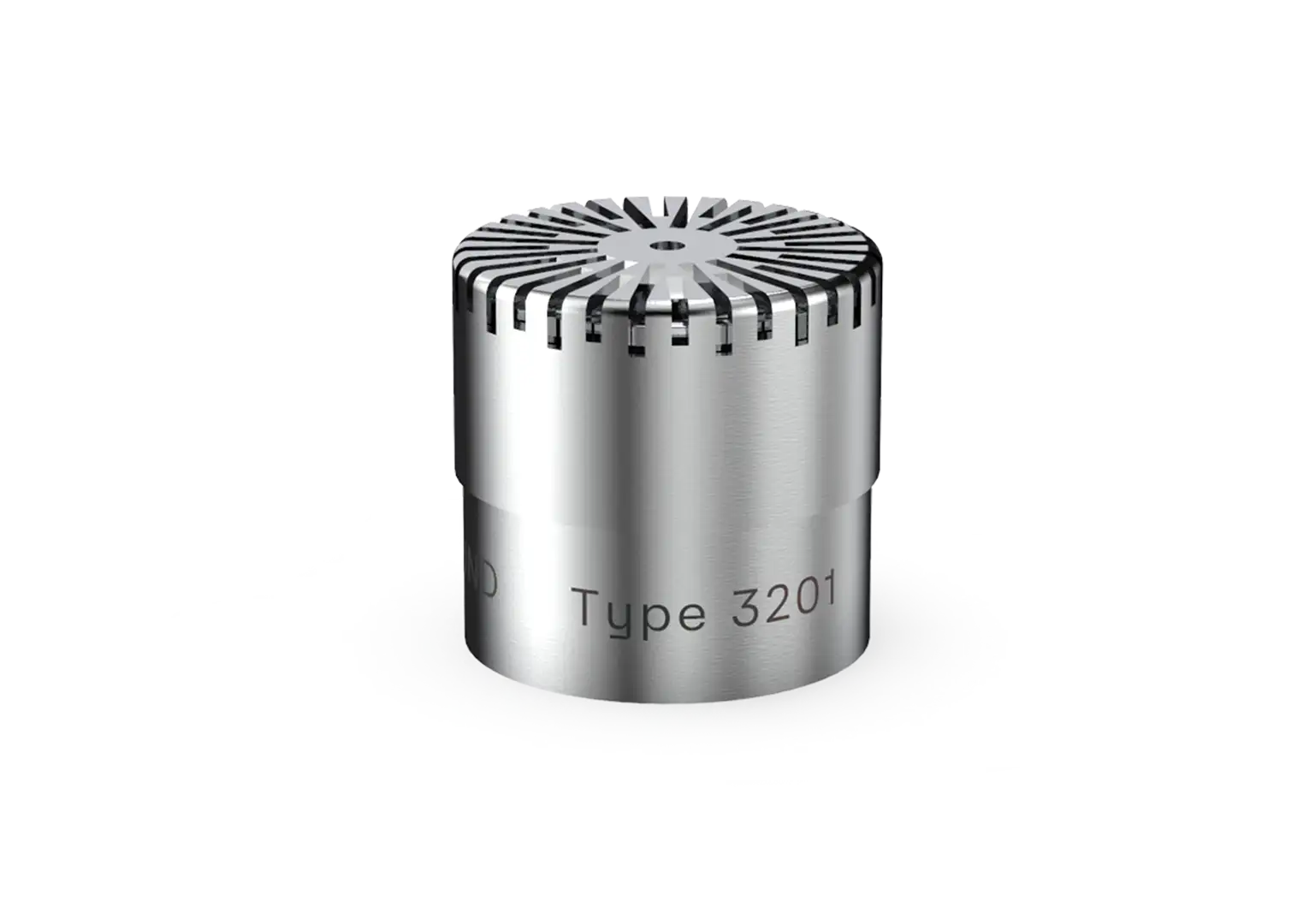

CRY3201 Free-field Microphone, 1/2", Prepolarized, 12.5mV/Pa

Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB

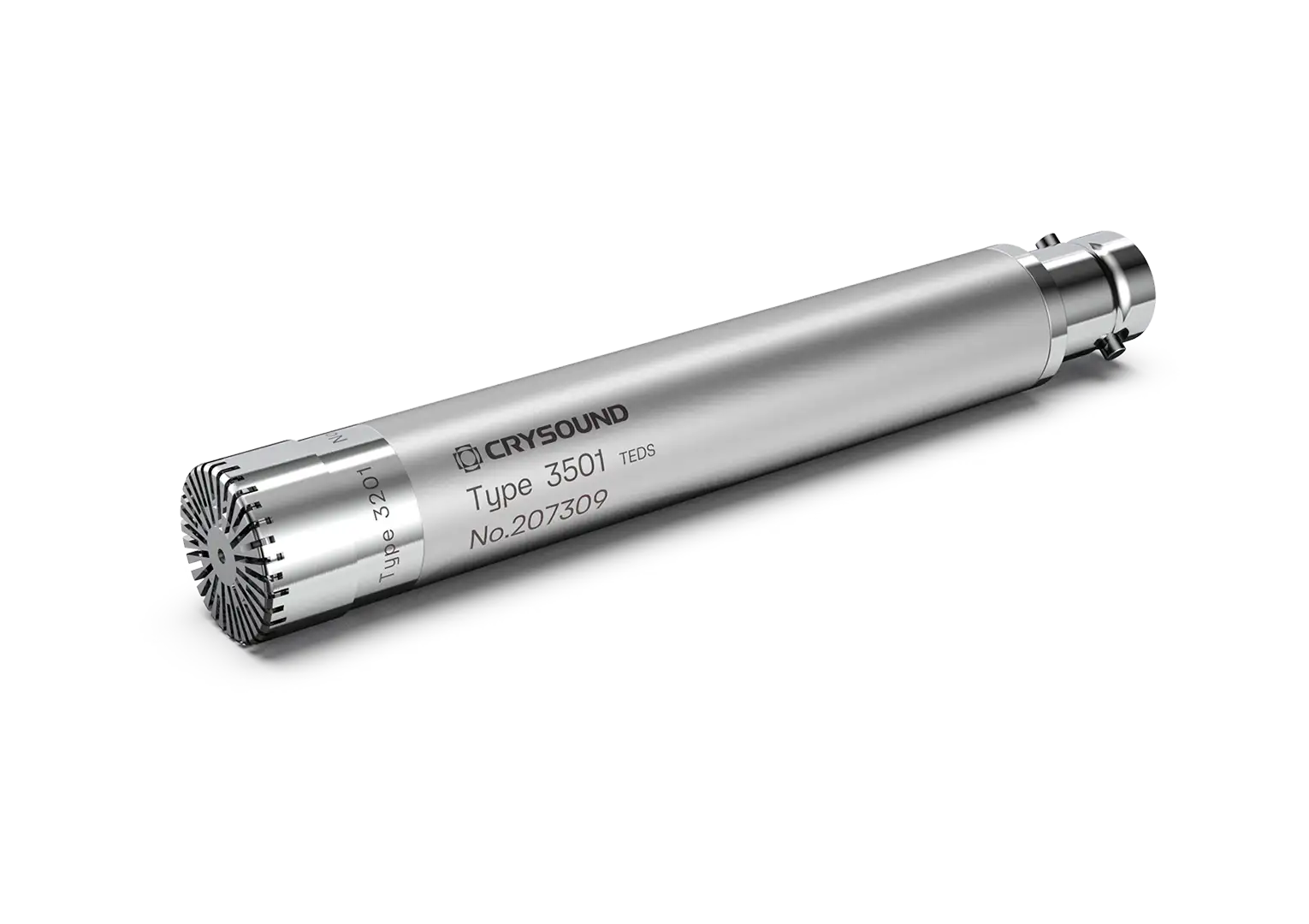

CRY3201-S01 Free-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB

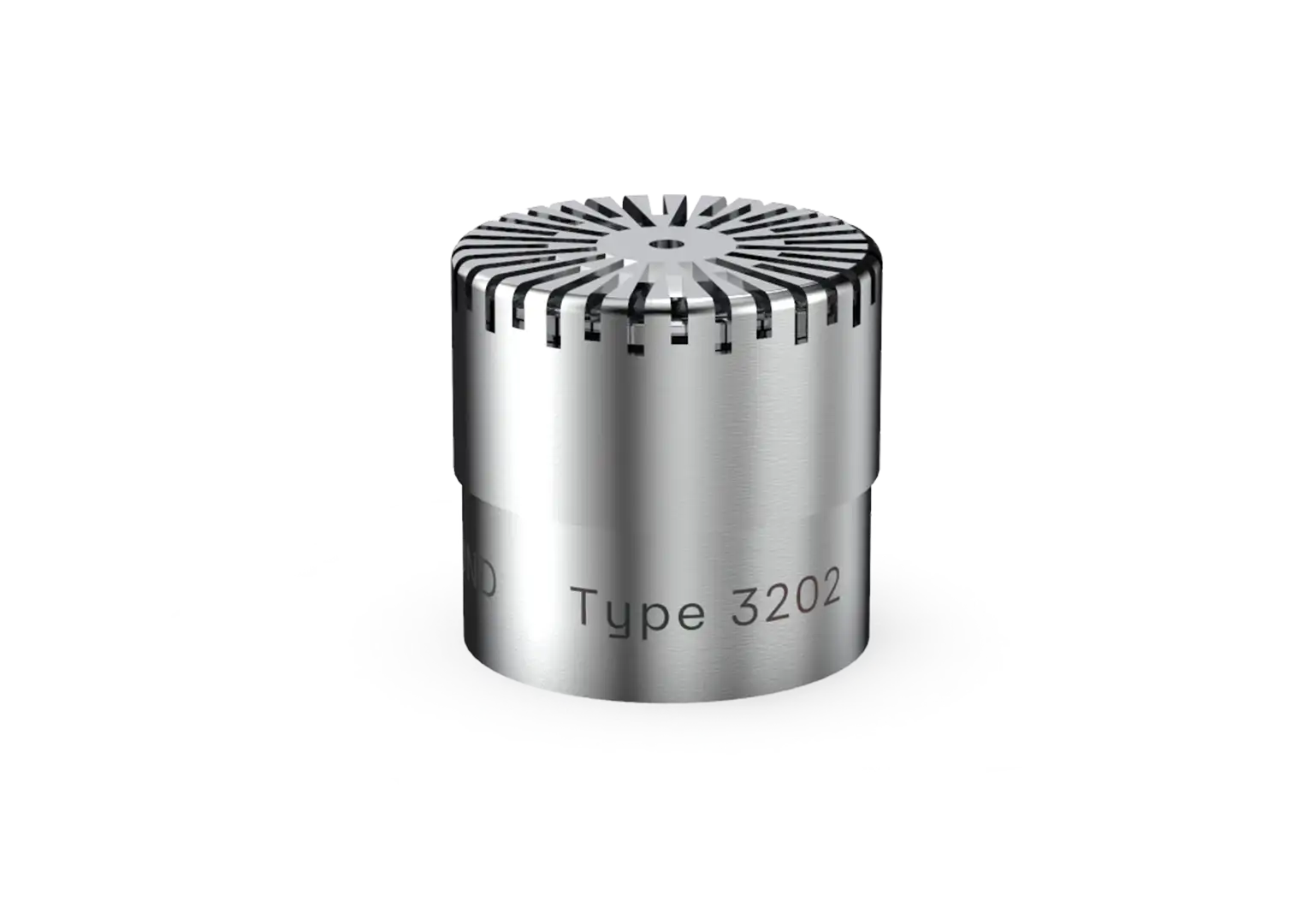

CRY3202 Pressure-field Microphone, 1/2", Prepolarized, 12.5mV/Pa

Field Type Pressure-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

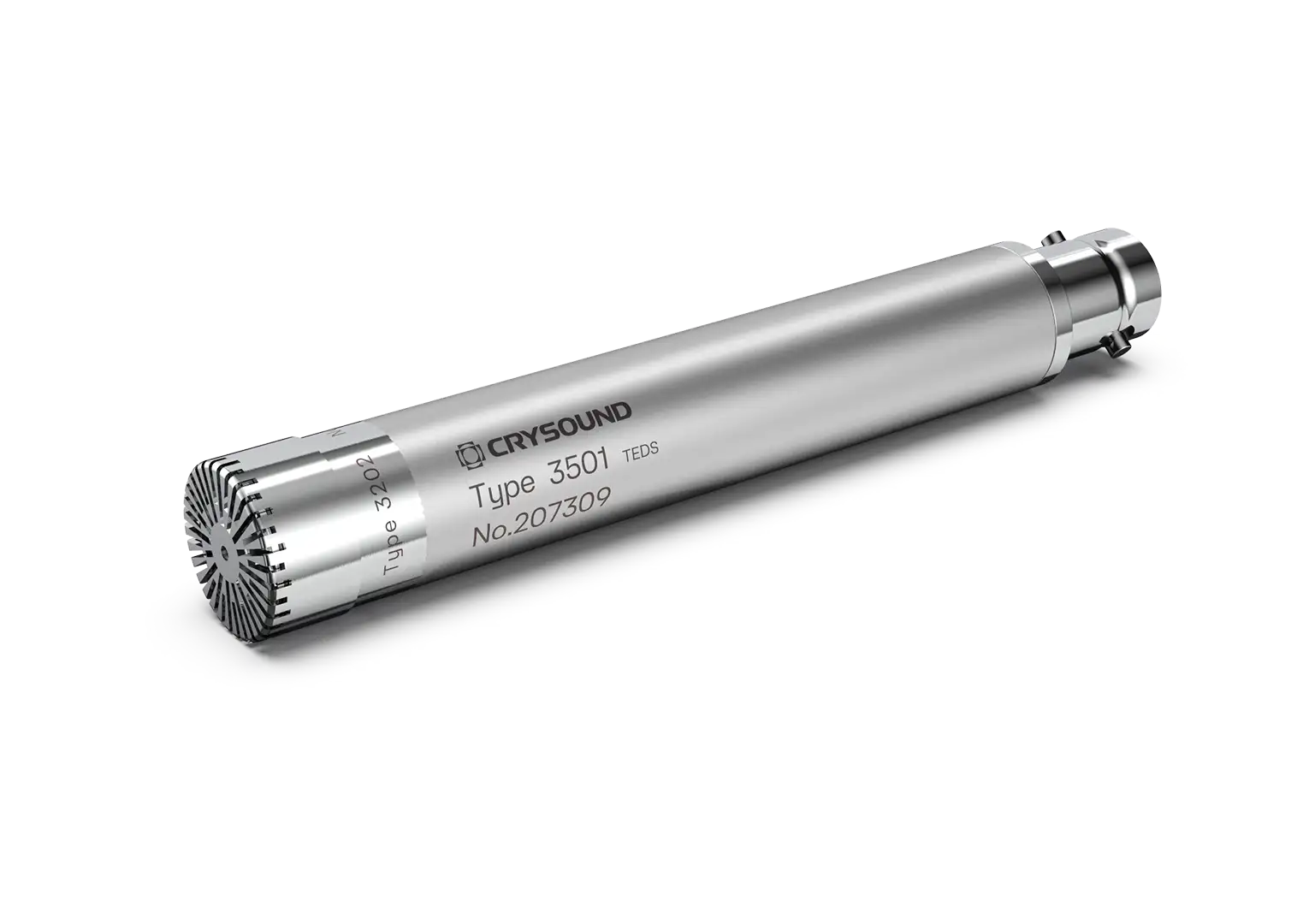

CRY3202-S01 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Pressure-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

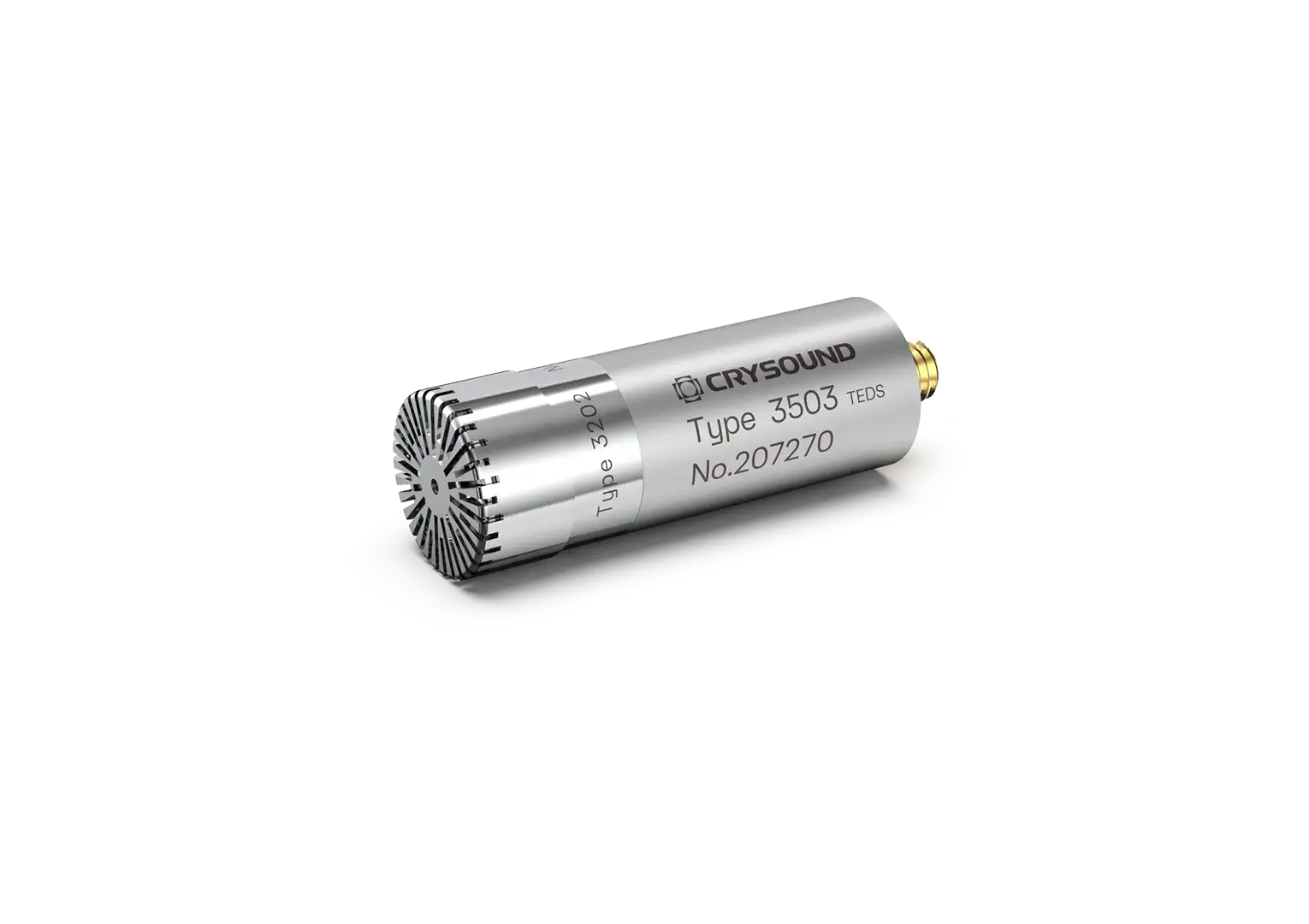

CRY3202-S02 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Pressure-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
No image

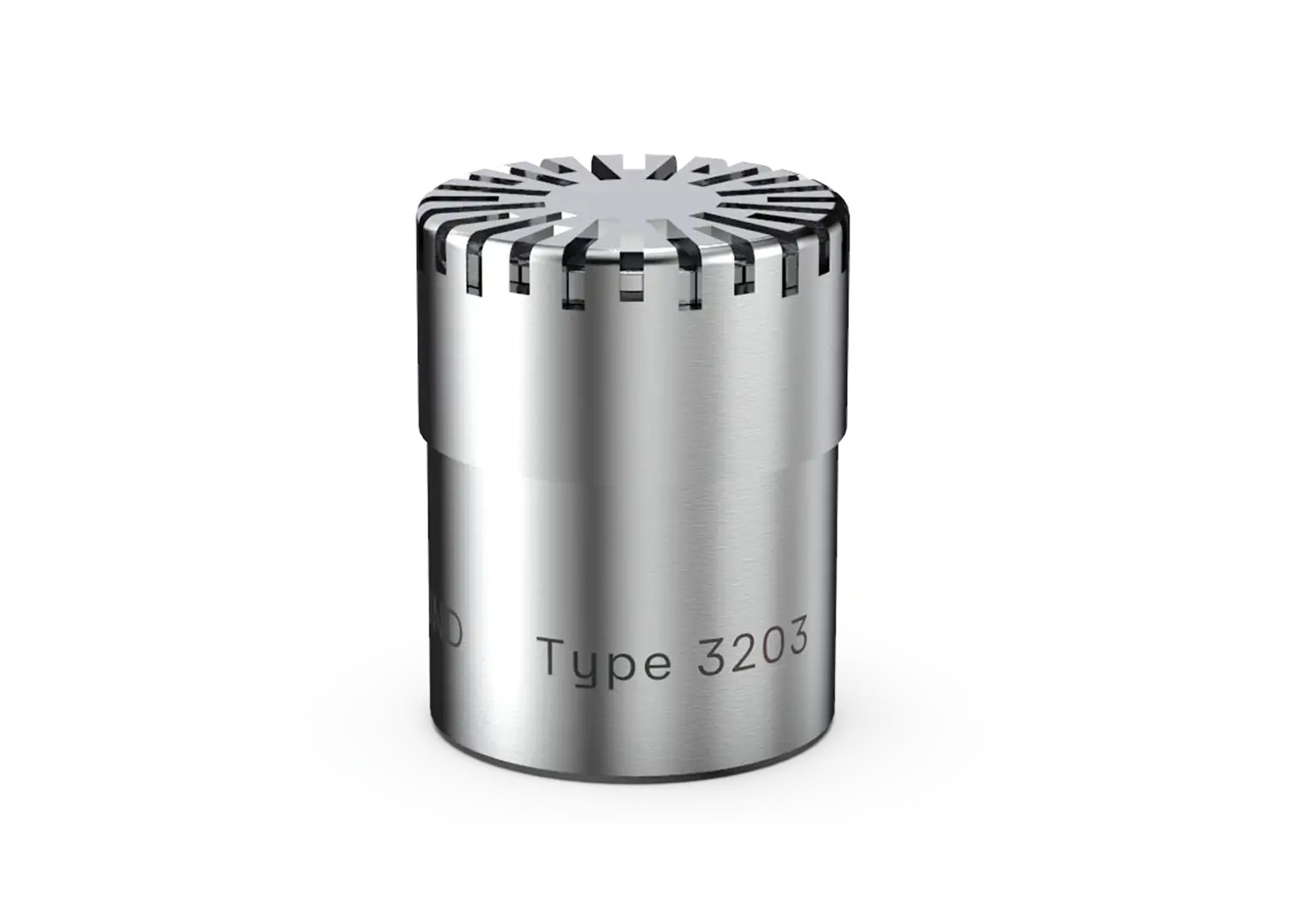

CRY3203 Free-field Microphone, 1/2", Prepolarized, 50mV/Pa

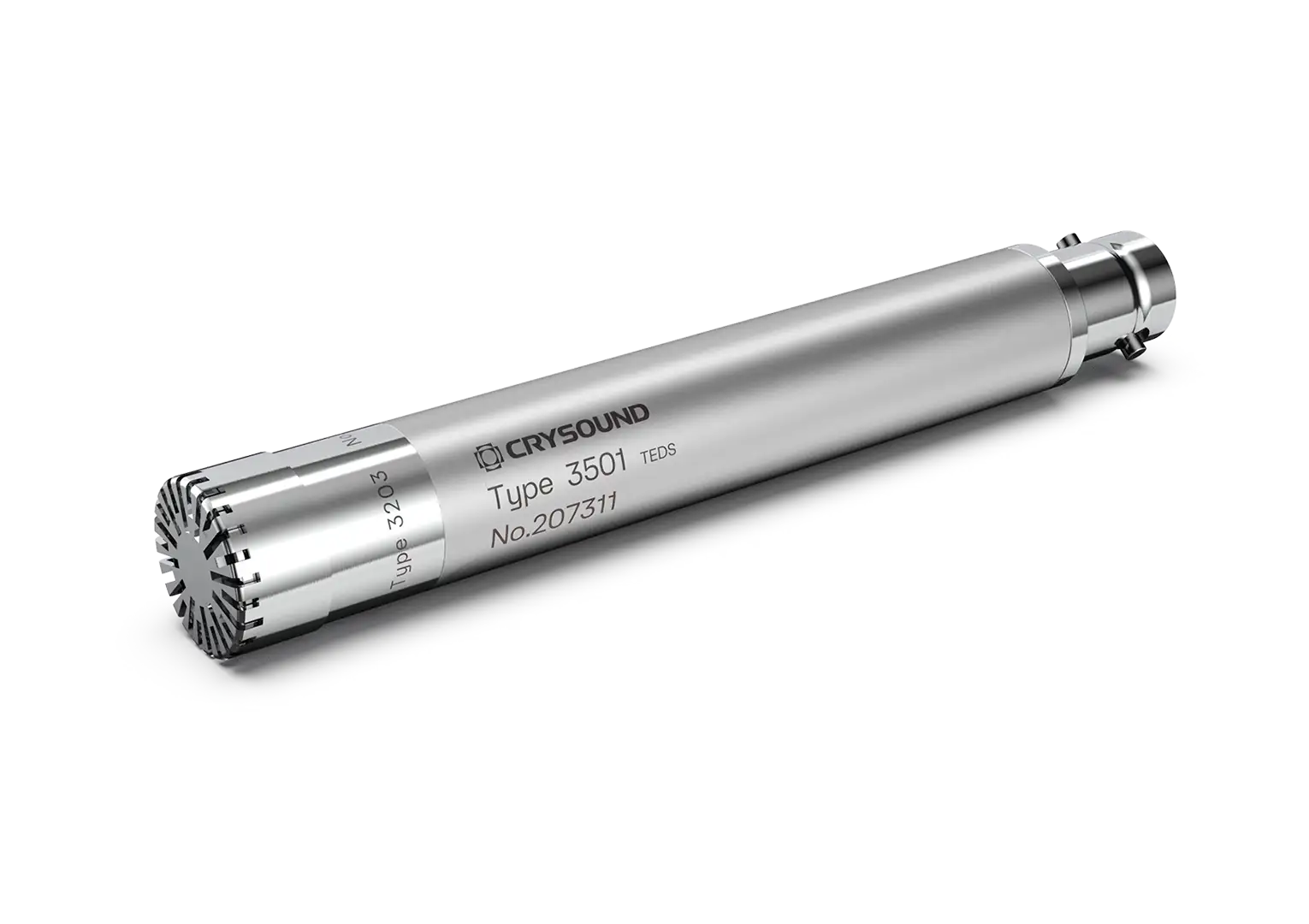

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa

Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

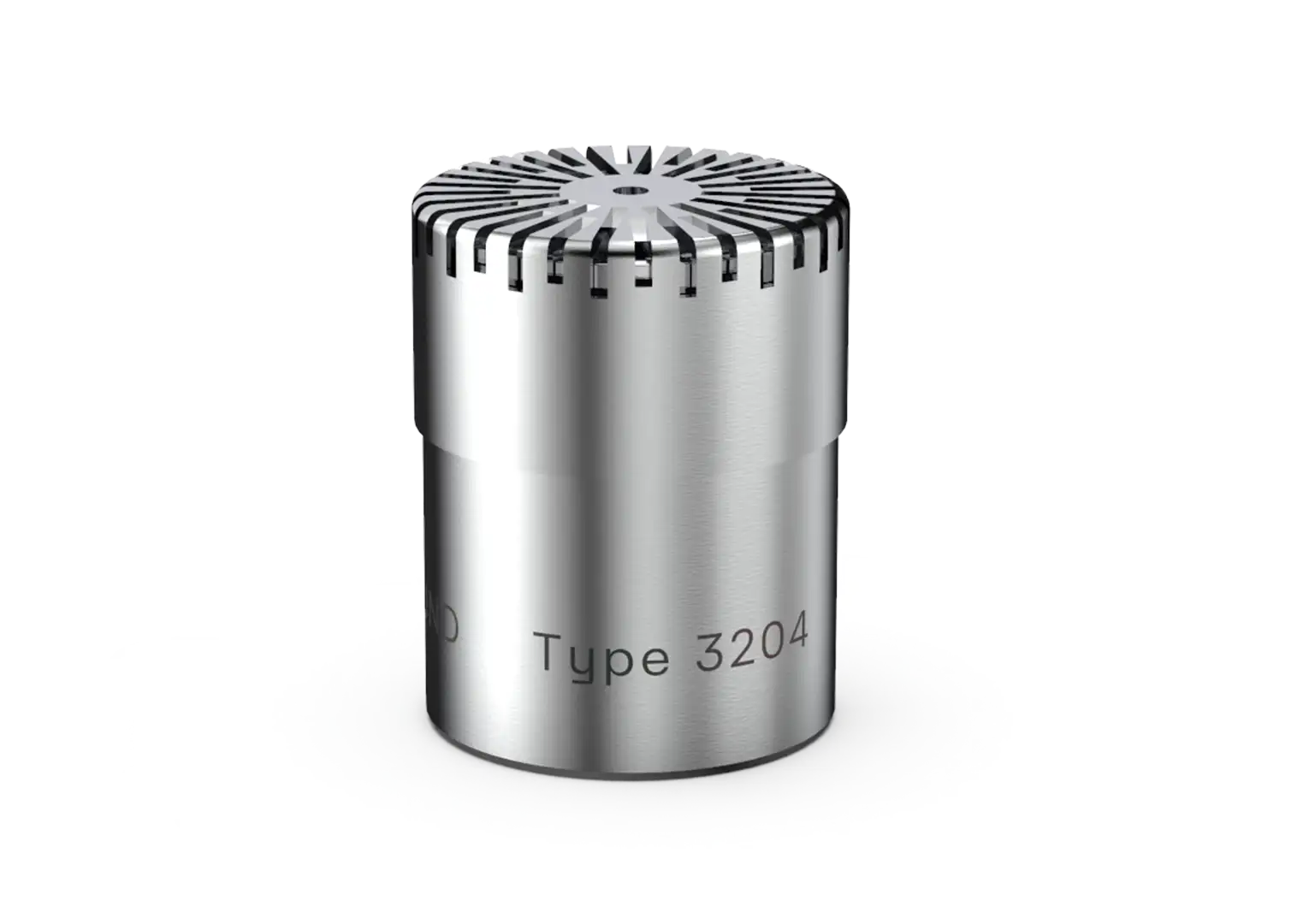

CRY3204 Pressure-field Microphone, 1/2", Prepolarized, 50mV/Pa

Field Type Pressure-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 10kHz±2dB

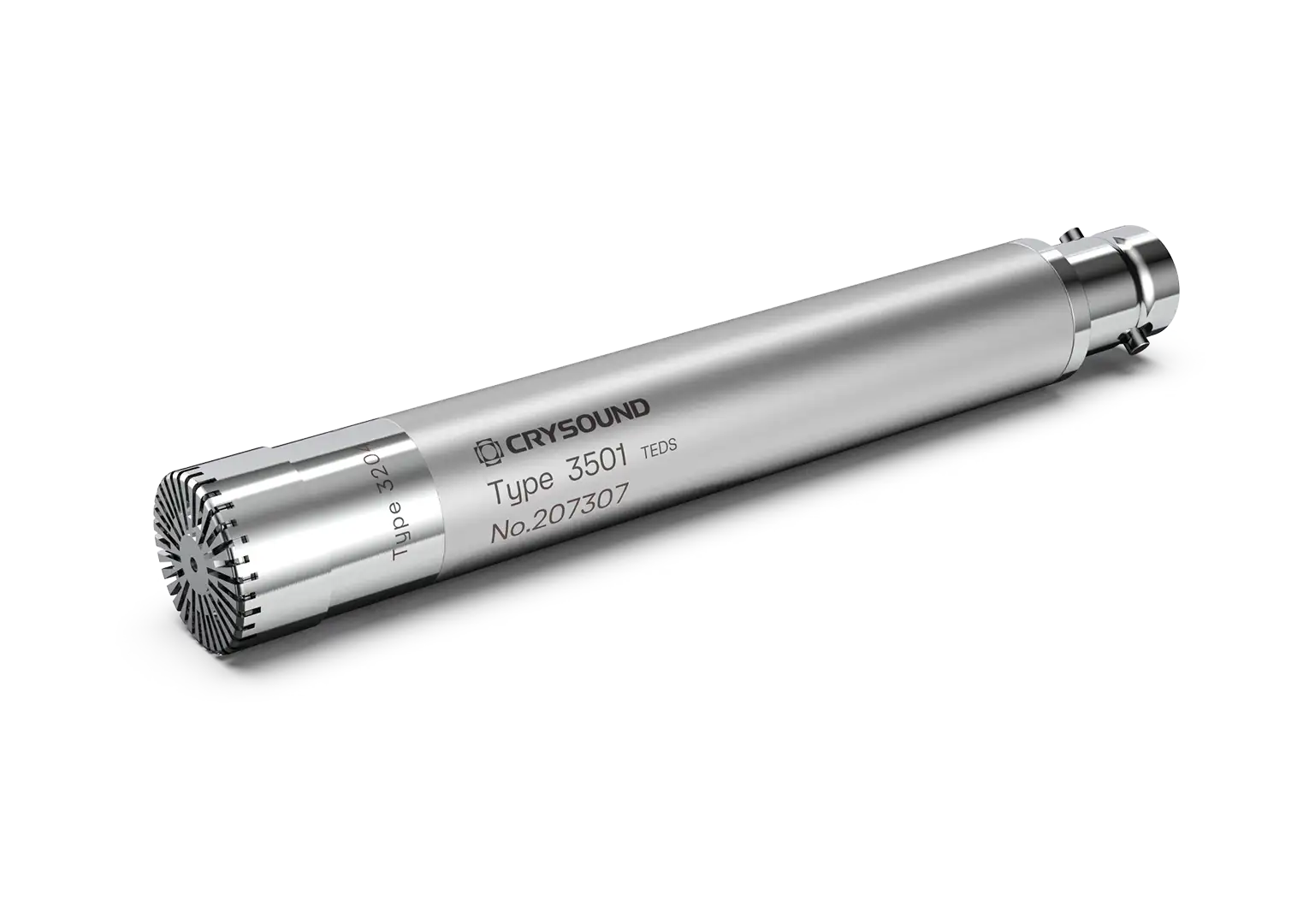

CRY3204-S01 Pressure-Field Microphone Set, 1/2", 50mV/Pa

Field Type Pressure-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 10kHz±2dB

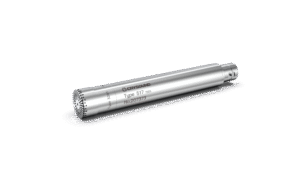

CRY3261-S02 Ultra-Low-Noise Free-Field Microphone Set, 1/2", 450mV/Pa

Field Type Free-field
Sensitivity 450 mV/Pa, -7 dB±2dB re 1V/Pa
Frequency Response 10 Hz to 16kHz ±2dB; 6 Hz to 20kHz ±3dB

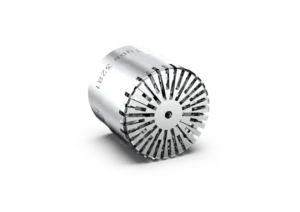

CRY3281 Free-field Microphone, 1/2"，External-polarized, 12.5mV/Pa

Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB

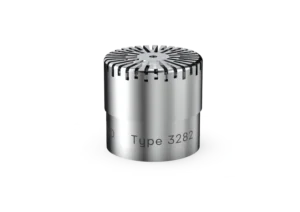

CRY3282 Pressure-field Microphone, 1/2", External-polarized, 12.5mV/Pa

Field Type Pressure-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

CRY3284 Pressure-field Microphone, 1/2", External-polarized, 50mV/Pa

Field Type Pressure-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 10kHz±2dB

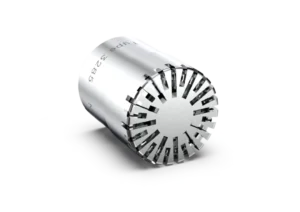

CRY3285 Free-field Microphone, 1/2"，External-polarized, 50mV/Pa

Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB

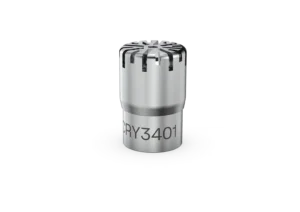

CRY3401 Free-field Microphone, 1/4", Prepolarized, 15.8mV/Pa

Field Type Free-field
Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 40kHz±2dB

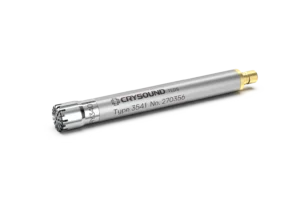

CRY3401-S01 Free-Field Microphone Set, 1/4", 15.8mV/Pa

Field Type Free-field
Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 40kHz±2dB

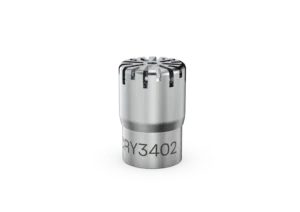

CRY3402 Pressure-field Microphone, 1/4" Prepolarized, 1.6mV/Pa

Field Type Pressure-field
Noominal Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB

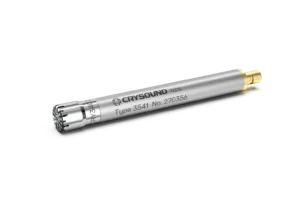

CRY3402-S01 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa

Field Type Pressure-field
Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB

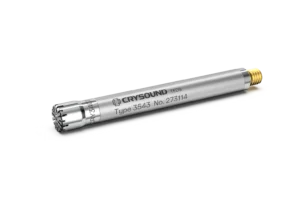

CRY3402-S02 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa

Field Type Pressure-field
Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB

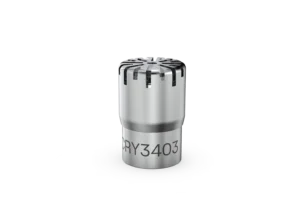

CRY3403 Free-field Microphone, 1/4", Prepolarized, 4mV/Pa

Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB

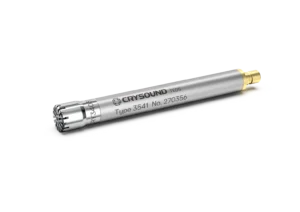

CRY3403-S01 Free-Field Microphone Set, 1/4", 4mV/Pa

Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB

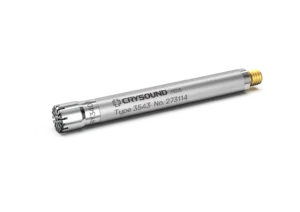

CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa

Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB

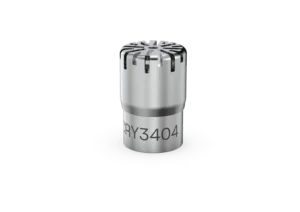

CRY3404 Pressure-field Microphone, 1/4", Prepolarized, 0.56mV/Pa

Field Type Pressure-field
Sensitivity 0.56mV/Pa, -65±3dB re 1V/Pa
Frequency Response 10Hz to 20kHz±2dB

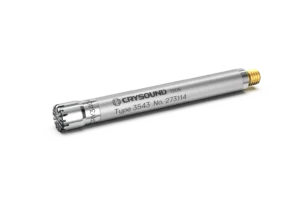

CRY3404-S01 Pressure-Field Microphone Set, 1/4", 0.56mV/Pa

Field Type Pressure-field
Sensitivity 0.56mV/Pa, -65±3dB re 1V/Pa
Frequency Response 10Hz to 20kHz±2dB

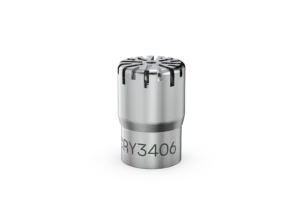

CRY3406 , Pressure-field Microphone, 1/4" Prepolarized, 15.8mV/Pa

Field Type Pressure-field
Sensitivity 15.8mV/Pa, -36dB±1.5dB re 1V/Pa
Frequency Response 4Hz to 20kHz±2dB

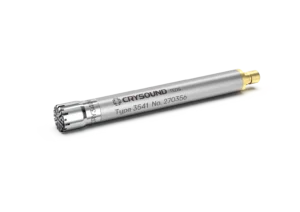

CRY3406-S01 Pressure-Field Microphone Set, 1/4", 15.8mV/Pa

Field Type Pressure-field
Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 20kHz±2dB

CRY3408 Pressure-field Microphone, 1/4",Prepolarized high-level,0.14 mV/Pa

Field Type Pressure-field
Sensitivity 0.14 mV/Pa, -77±3 dB re 1V/Pa
Frequency Response 10 Hz to 20 kHz ±2 dB

CRY3408-S01 Pressure-field Prepolarized High-level Microphone Set, 1/4", 0.14mV/Pa

Field Type Pressure-field
Sensitivity 0.14 mV/Pa, -77±3 dB re 1V/Pa
Frequency Response 10 Hz to 20 kHz ±2 dB

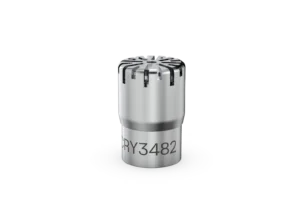

CRY3482 Pressure-field Microphone, 1/4", External-polarized, 1.6mV/Pa

Field Type Pressure-field
Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB

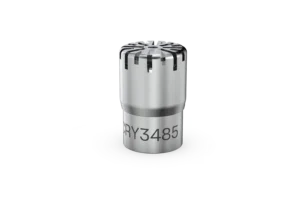

CRY3485 Free-field Microphone, 1/4", External-polarized, 4mV/Pa

Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB

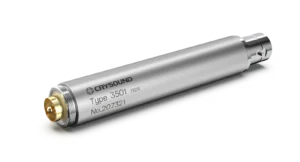

CRY3501 1/2" Preamplifier, IEPE, BNC Connector

Frequency Response Range 1Hz ~ 200kHz (±0.2 dB)
Input Impedance >6,0.4pF
Output Impedance ＜50Ω

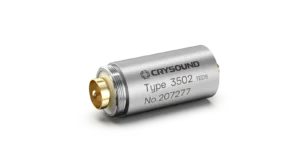

CRY3502 1/2" Preamplifier, IEPE, SMB Connector, Very Short

Frequency Response Range 1Hz ~ 200kHz (±0.2 dB)
Input Impedance >26,0.4pF
Output Impedance ＜50Ω

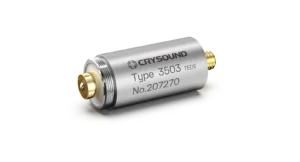

CRY3503 1/2" Preamplifier, IEPE, Microdot Connector, Very Short

Frequency Response Range 1Hz ~ 200kHz (±0.2 dB)
Input Impedance >26,0.4pF
Output Impedance ＜50Ω

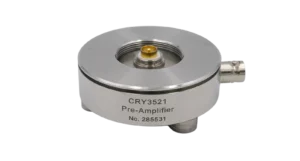

CRY3521 1/2" Preamplifier, BNC connector, Base-type

Frequency Response Range 20Hz to 50k Hz (±0.2 d B); 10Hz to 100k Hz (±0.5 d B)
Input Impedance ＞2GΩ/0.5pF
Output Impedance ＜20Ω

CRY3541 1/4" Preamplifier, IEPE, SMB Connector

Frequency Response Range 1Hz ~ 200kHz (±0.2 dB)
Input Impedance >28,0.4pF
Output Impedance ＜50Ω

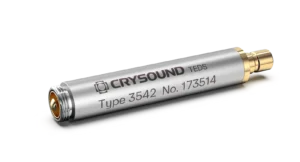

CRY3542 1/4" Preamplifier, IEPE, SMB Connector

Frequency Response Range 3Hz to 200kHz( ±0.2dB)
Input Impedance >22GΩ / 0.4pF
Output Impedance ＜50Ω

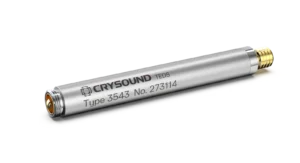

CRY3543 1/4" Preamplifier, IEPE, 10-32UNF Connector

Frequency Response Range 1Hz ~ 200kHz (±0.2 dB)
Input Impedance >28GΩ/0.4pF
Output Impedance ＜50Ω

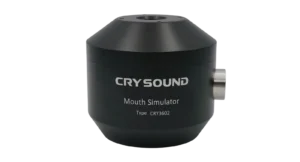

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

Max Continuous Output SPL (25mmMRP) 110 dB（200 Hz to 10 kHz） 100 dB (100 Hz to 10 kHz)
THD(94dBSPL, 25mmMRP) <1.5% ,Typical: <1.0% (200 Hz to 10 KHz )
Frequency Response EQ:94dB ±1 dB（100Hz to 10kHz）

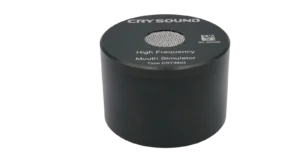

CRY3603 Mouth Simulator 200Hz to 50k Hz, ITU-T Rec.P51

Max Continuous Output SPL (25mmMRP) 110dB (500Hz to 40 kHz) 94dB (200 Hz to 50 kHz)
THD(94dBSPL, 25mmMRP) <1.5%，Typical: <1.0% (1 kHz to 40 kHz)
Frequency Response EQ: 94dB ±1 dB(500Hz to 40kHz)

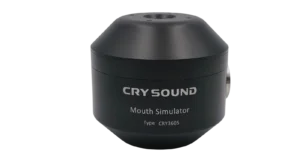

CRY3605 Mouth Simulator, High-Performance ITU-T Rec.P51

Max Continuous Output SPL(25mmMRP) 110dB (200 Hz to 10 kHz) 100dB (100Hz to 10 kHz)
THD(94dBSPL, 25mmMRP) <0.8%, Typical: <0.5% (200 Hz to 10 kHz)
Frequency Response EQ: 94dB ±1 dB(100Hz to 10kHz)

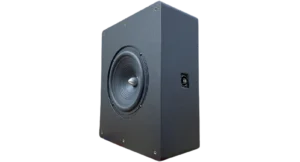

CRY3611 Reference sound source

THD(25mmMRP) <1%，Typical<0.5%（200Hz to 10KHz）
Impedance 8 ohm±15%@350hz
Continuous Maximum Power 45W

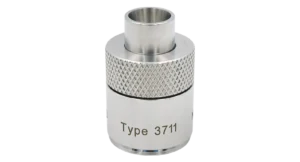

CRY3711 Ear Simulator IEC60318-4

Nominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hzto 16kHz(Coupling cavity use)
Dynamic Range 23dB to 160dB

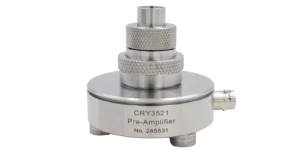

CRY3711-S01 Ear Simulator Set

Nominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Dynamic Range 23dB to 146dB

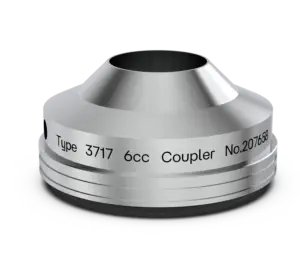

CRY3717 IEC 60318-3 Coupler

Frequency Response 100Hz to 8kHz±2dB
Standards IEC60318-3
Equivalent Volume 6cc

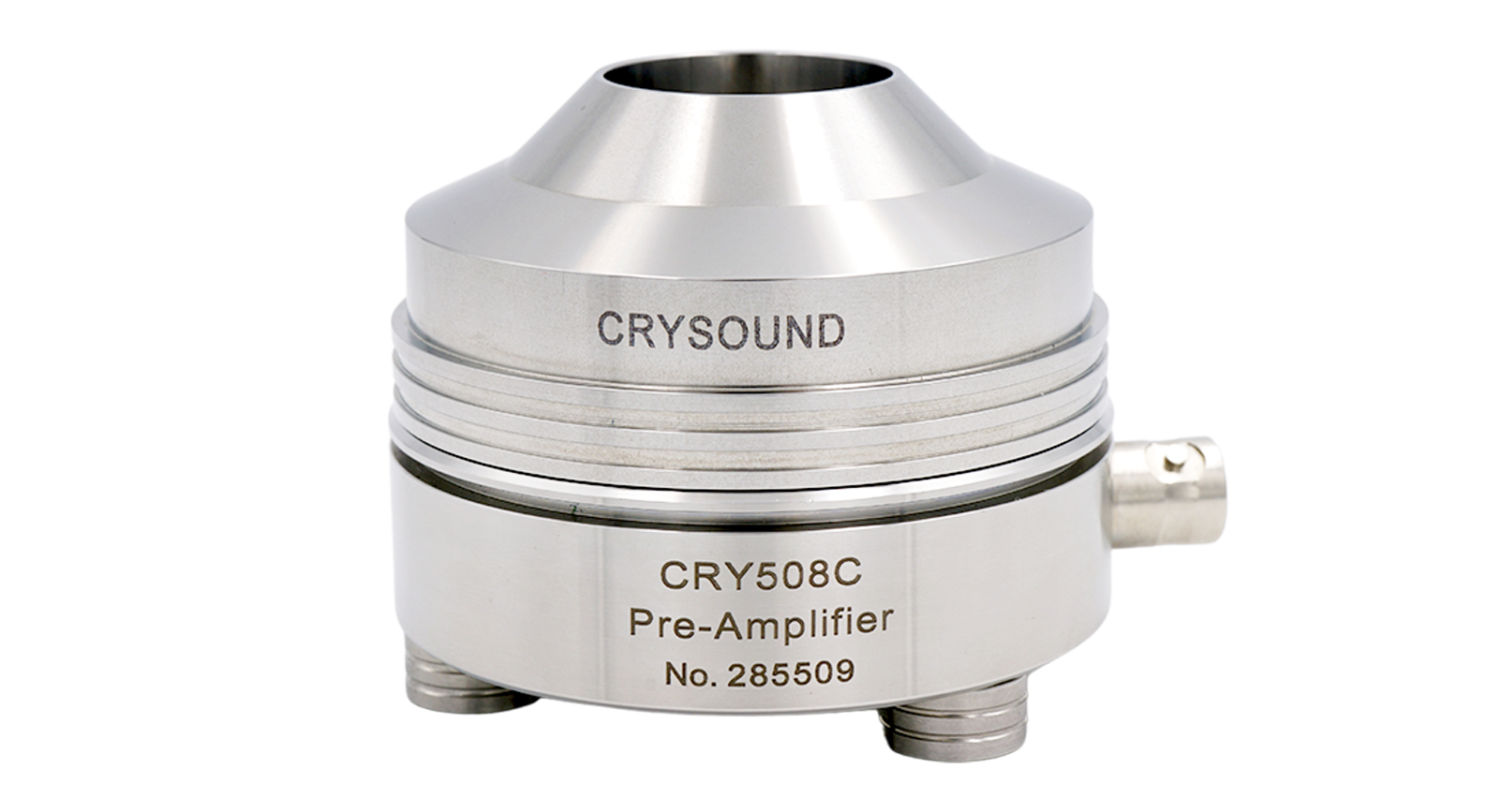

CRY3717-S01 Coupler Set

Nominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 100Hz to 8kHz±2dB
Dynamic Range 12dB to 134dB

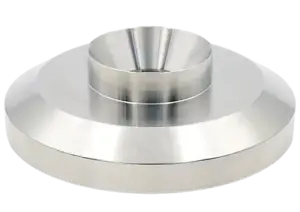

CRY3718 Ear Simulator IEC60318-1

Frequency Response 100Hz to 4kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards IEC 60318-1、 ITU-T P.57 Type 1、 GB/T 25498.1-2010
Weight 147g

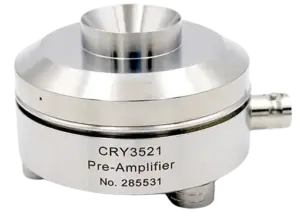

CRY3718-S01 Ear Simulator Set IEC60318-1

Nominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 100Hz to 4kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards IEC 60318-1、 ITU-T P.57 Type 1

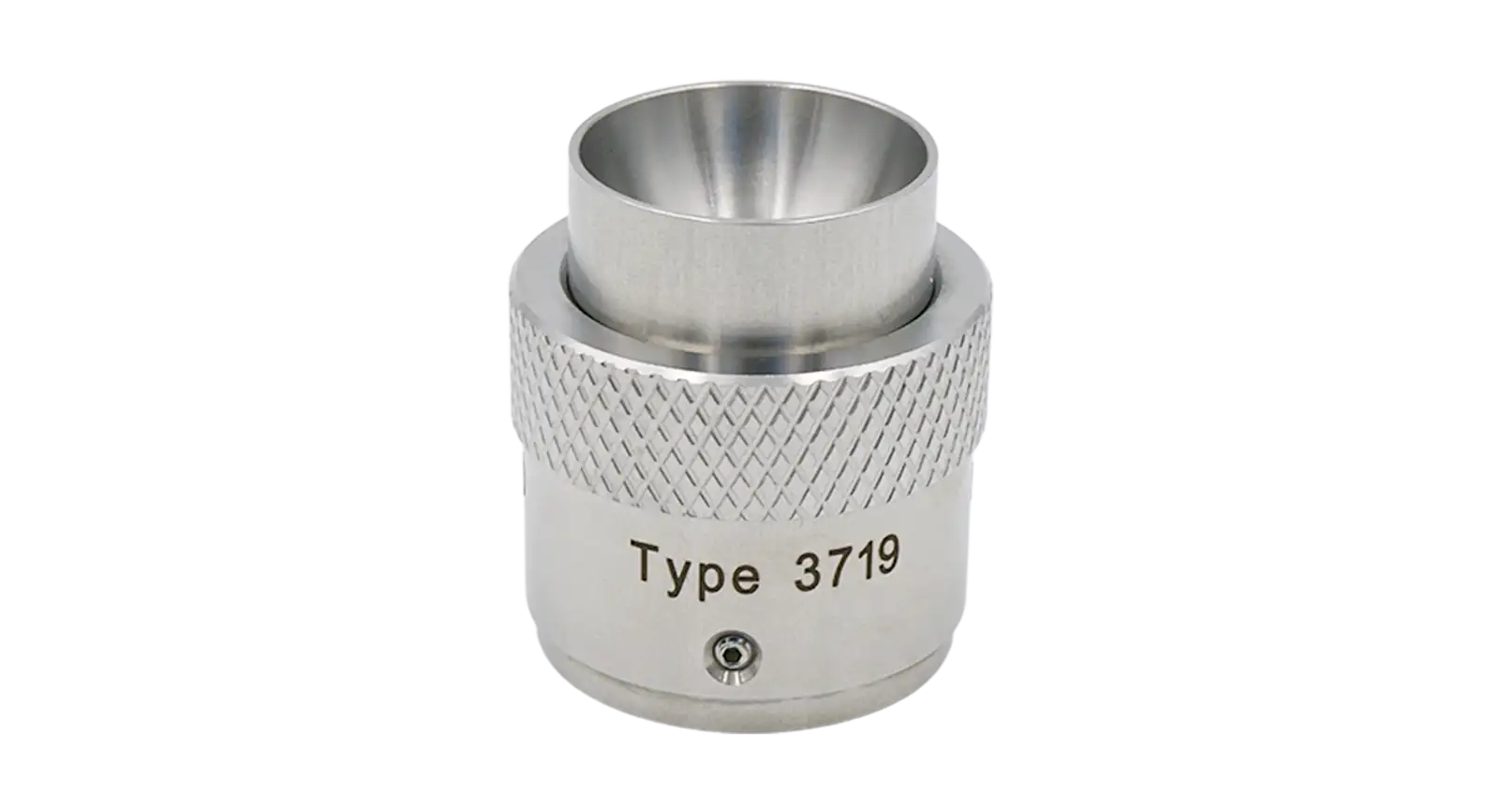

CRY3719 Coupler IEC 60318-5

Frequency Response 125Hz to 8kHz
Equivalent Volume 2cc
Standards IEC60318-5, ANSI S3.7、 GB/T 20441.4-2006

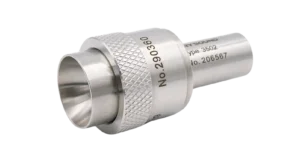

CRY3719-S01 Coupler Set

Nominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 125Hz to 8kHz
Dynamic Range 23dB to 146dB

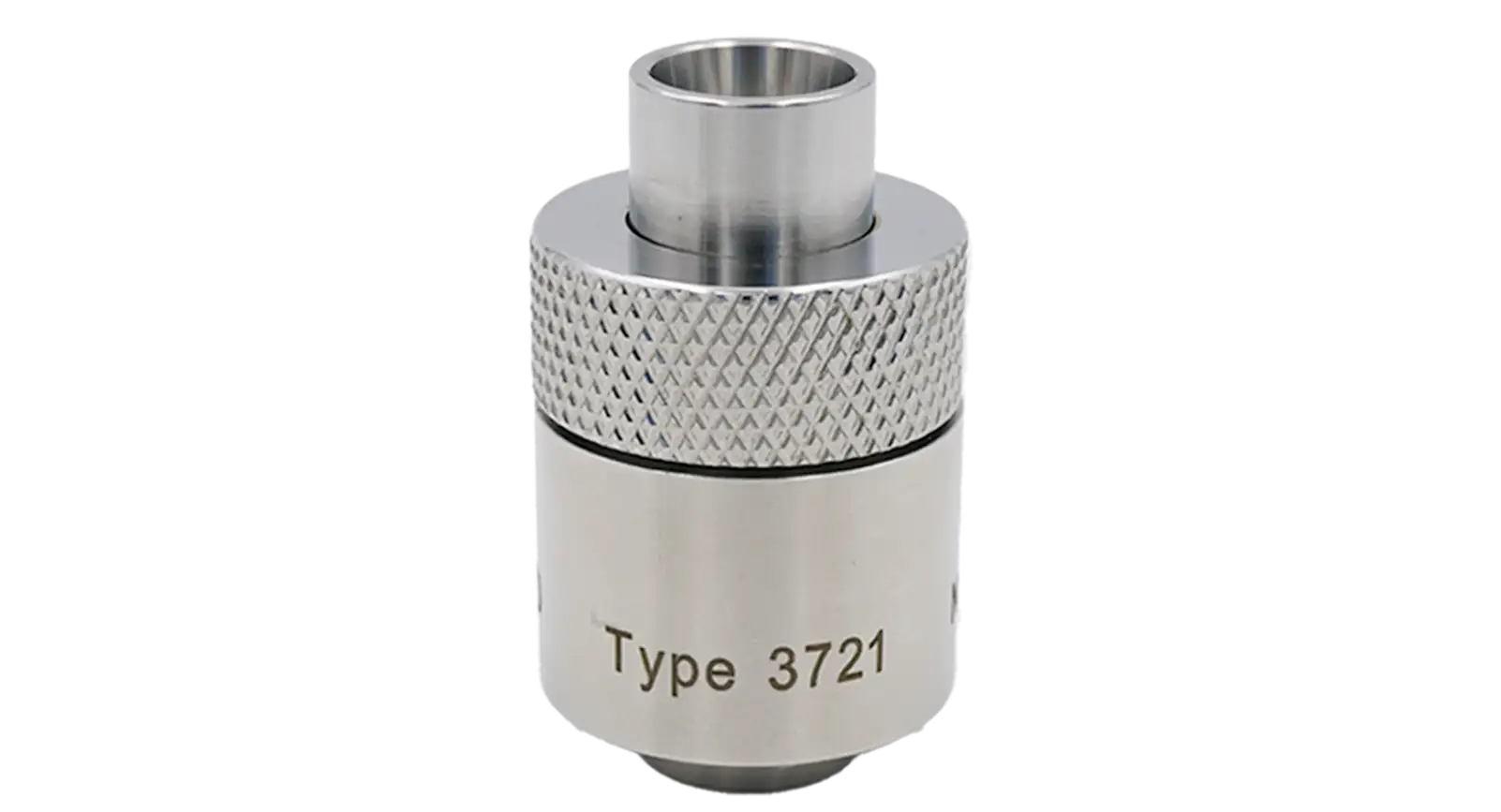

CRY3721 Ear Simulator IEC60318-4, Low-Noise

Standards IEC 60318-4, ITU-T P.57 Type 2
Equivalent Volume 1.26cc
Weight 50g

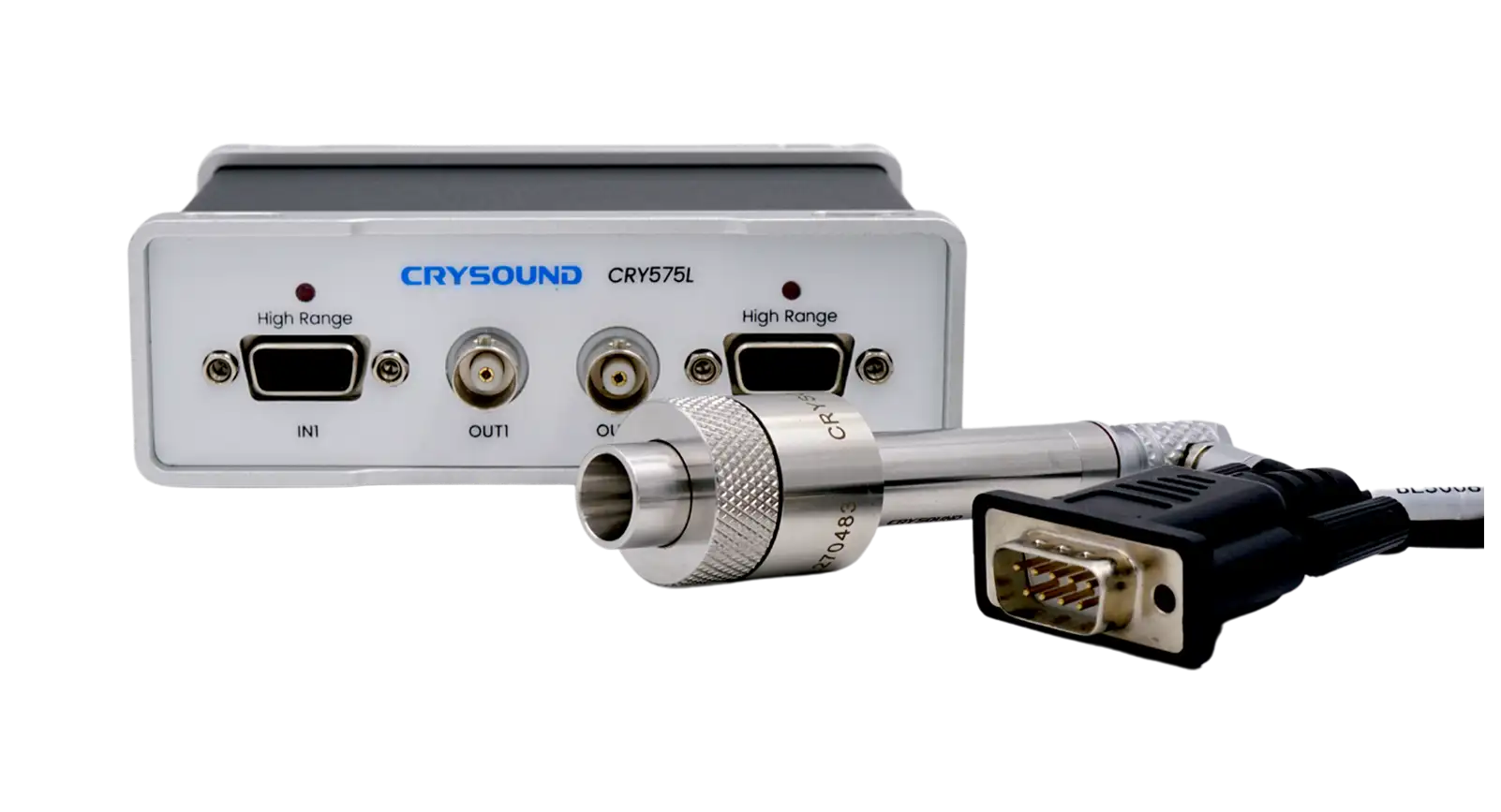

CRY3721-S01 Ear Simulator Set

Nominal Sensitivity 631 mV/Pa,-4 dB re 1V/Pa
Frequency Response 20 Hz to 20 kHz
Dynamic Range 9dBA to 110dB

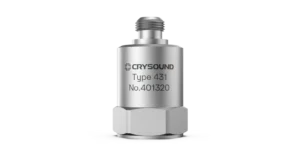

CRY431 IEPE Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1000g
Sensitivity (25℃) 5mV/g (160Hz)
Frequency Response 1Hz to 12kHz(±1dB)

CRY431 IEPE Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1000g
Sensitivity (25℃) 5mV/g (160Hz)
Frequency Response 1Hz to 12kHz(±1dB)

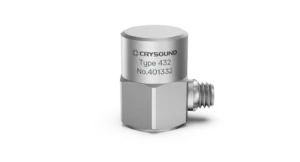

CRY432 Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1,000g pk
Sensitivity (25℃) 5mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±1dB)

CRY432 Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1,000g pk
Sensitivity (25℃) 5mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±1dB)

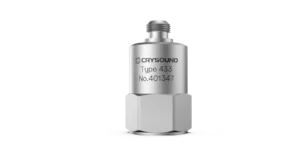

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Measuring Range (peak) 100mV/g(160Hz)
Frequency Response 0.5 Hz to 8 kHz(±1 dB)

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Measuring Range (peak) 100mV/g(160Hz)
Frequency Response 0.5 Hz to 8 kHz(±1 dB)

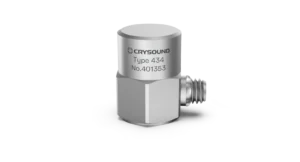

CRY434 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 8kHz(±1dB)

CRY434 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 8kHz(±1dB)

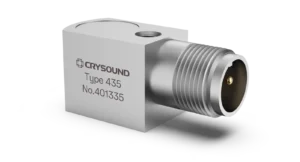

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz

Dynamic Specification ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 6kHz(±10%); 0.5Hz to10kHz(±3dB)

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz

Dynamic Specification ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 6kHz(±10%); 0.5Hz to10kHz(±3dB)

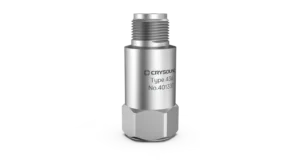

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±10%); 0.5Hz to 20kHz(±3dB)

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±10%); 0.5Hz to 20kHz(±3dB)

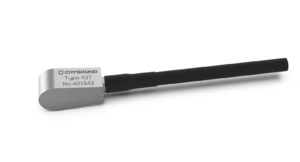

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 2Hz to 8kHz(±1dB)

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 2Hz to 8kHz(±1dB)

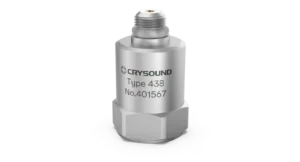

CRY438 IEPE Accelerometer, 1 Axis, 10mv/g, ±500g pk, 1Hz to 10kHz

Measuring Range (Peak) ±500g
Sensitivity (25℃) 10mV/g (160Hz)
Frequency Response 1Hz to 10kHz(±1dB); 0.6Hz to 20KHz(±3dB)

CRY438 IEPE Accelerometer, 1 Axis, 10mv/g, ±500g pk, 1Hz to 10kHz

Measuring Range (Peak) ±500g
Sensitivity (25℃) 10mV/g (160Hz)
Frequency Response 1Hz to 10kHz(±1dB); 0.6Hz to 20KHz(±3dB)

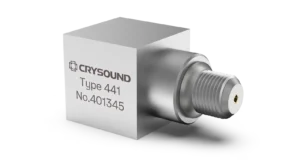

CRY441 Charge Accelerometer, 1 Axis, 5pC/g, ±2500g pk, 1Hz to 10kHz

Dynamic Specification ±2500g pk
Measuring Range (peak) 5pC/g(160Hz)
Sensitivity (25℃) 1Hz to 10kHz(±1dB)

CRY441 Charge Accelerometer, 1 Axis, 5pC/g, ±2500g pk, 1Hz to 10kHz

Dynamic Specification ±2500g pk
Measuring Range (peak) 5pC/g(160Hz)
Sensitivity (25℃) 1Hz to 10kHz(±1dB)

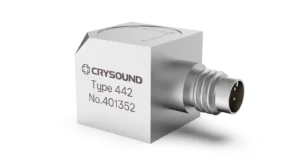

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 5kHz(±1dB)

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 5kHz(±1dB)

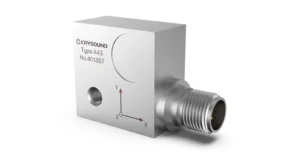

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz

Measuring Range (peak) ±100g pk
Sensitivity (25℃) 50mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz

Measuring Range (peak) ±100g pk
Sensitivity (25℃) 50mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)

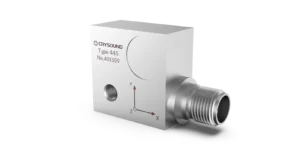

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz

Measuring Range (peak) ±80g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz

Measuring Range (peak) ±80g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)

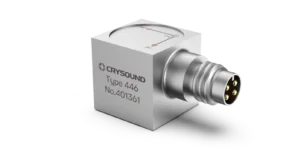

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 1Hz to 5kHz(±1dB)

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 1Hz to 5kHz(±1dB)

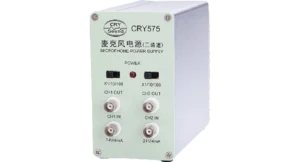

CRY575 Microphone Power Supply

Frequency Response 10Hz to 60kHz±0.5dB
Input impedance 1MΩ
Output impedance 100Ω

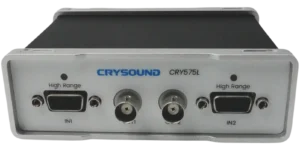

CRY575L Microphone Power Supply, Low-Noise

Frequency Response 10Hz to 60kHz (±0.5 dB)
Input impedance 1MΩ
Output impedance 100Ω
Support Support
Product Catalogs Product Catalogs
Solutions Solutions
User Manuals User Manuals
Download Download
Catalogs Catalogs Solutions Solutions
Product Inquiry Product Inquiry
Schedule Demo Schedule Demo
Technical Support Technical Support
+86-571-88225128 +86-571-88225128
Request Quote 0
Request Quote
0
Cart

Order List

Total Price $0.00
This site is registered on wpml.org as a development site. Switch to a production site key to remove this banner.
