The CRY3543 is a constant-current power preamplifier that can be used with the CRY3000 series 1/4 inch prepolarization measuring microphone and is widely compatible with other brands. By converting high-input impedance to low output impedance, the CRY3543 allows the use of longer extension cables. It offers exceptionally low background noise, ensuring minimal impact on the microphone’s performance. Its TEDS functionality further enhances efficiency by reducing test time. With a robust design and high durability, it is well-suited for a broad range of environmental conditions.

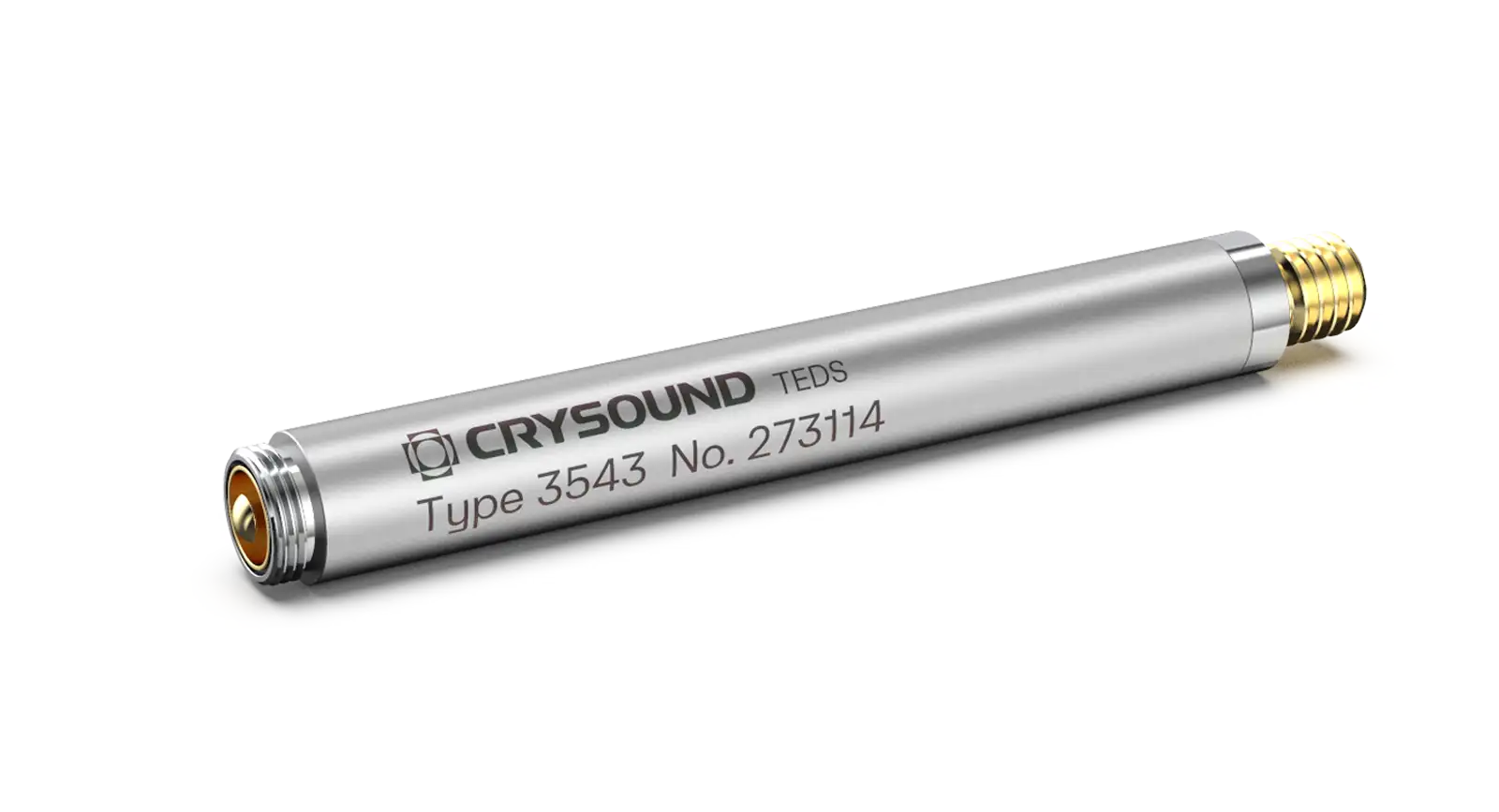

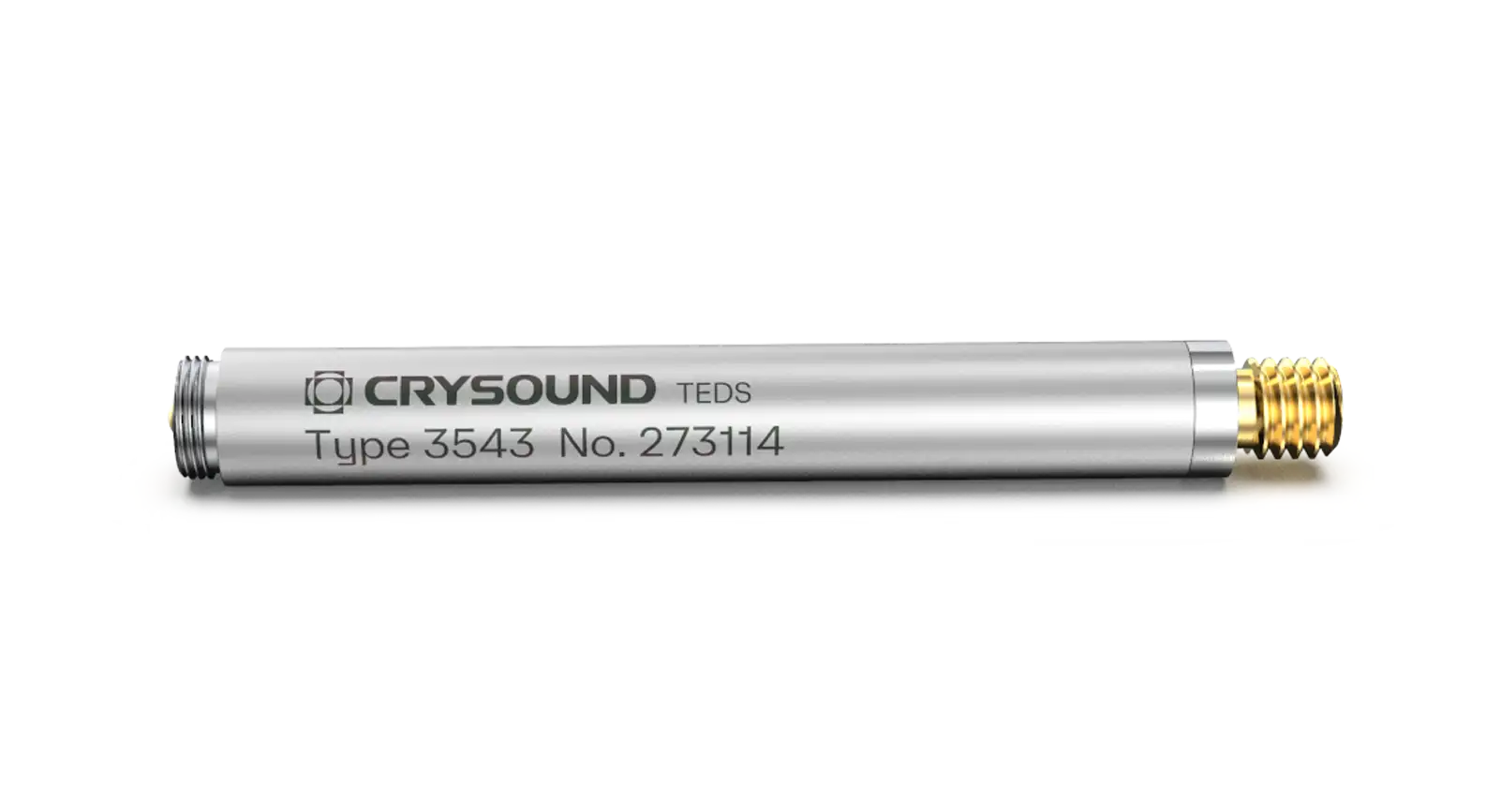

CRY3543 1/4" Preamplifier, IEPE, 10-32UNF Connector

The CRY3543 is a constant-current power preamplifier that can be used with the CRY3000 series 1/4 inch prepolarization measuring microphone and is widely compatible with other brands.

By converting high-input impedance to low output impedance, the CRY3543 allows the use of longer extension cables. It offers exceptionally low background noise, ensuring minimal impact on the microphone's performance. Its TEDS functionality further enhances efficiency by reducing test time. With a robust design and high durability, it is well-suited for a broad range of environmental conditions.

Product Highlights

Technical Specifications

Frequency Response Range

1Hz ~ 200kHz (±0.2 dB)

Input Impedance

>28GΩ/0.4pF

Output Impedance

＜50Ω

Distortion (THD)

<0.1%

Max Output Voltage

＞10Vp

Power Supply

2 mA to 20mA（Typical 4mA）

Nominal Operating Current

4mA

Noise, A-weighting

< 3 µV rms

Noise, linearity (20 ~ 20kHz)

< 4 µV rms

DC bias voltage

12V±2V

Temperature

-30℃ to +70℃(-22 to 158 °F )

Threaded Coupling

5.7mm-60 UNS

Diameter

6.35mm(0.25'')

Length

47.75mm(1.88'')

Connector Type

10-32UNF(M5/Microdot)

Main Features
