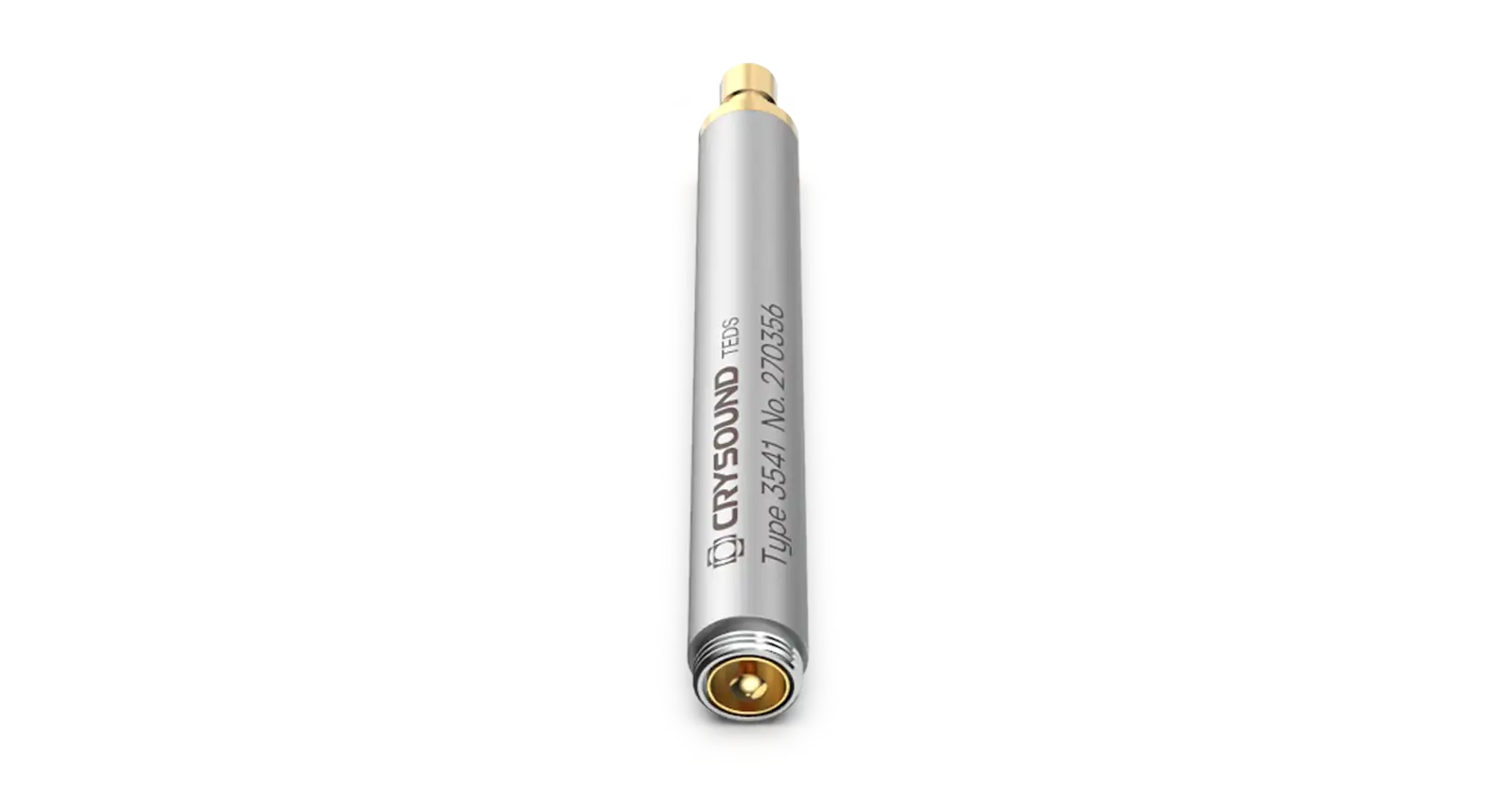

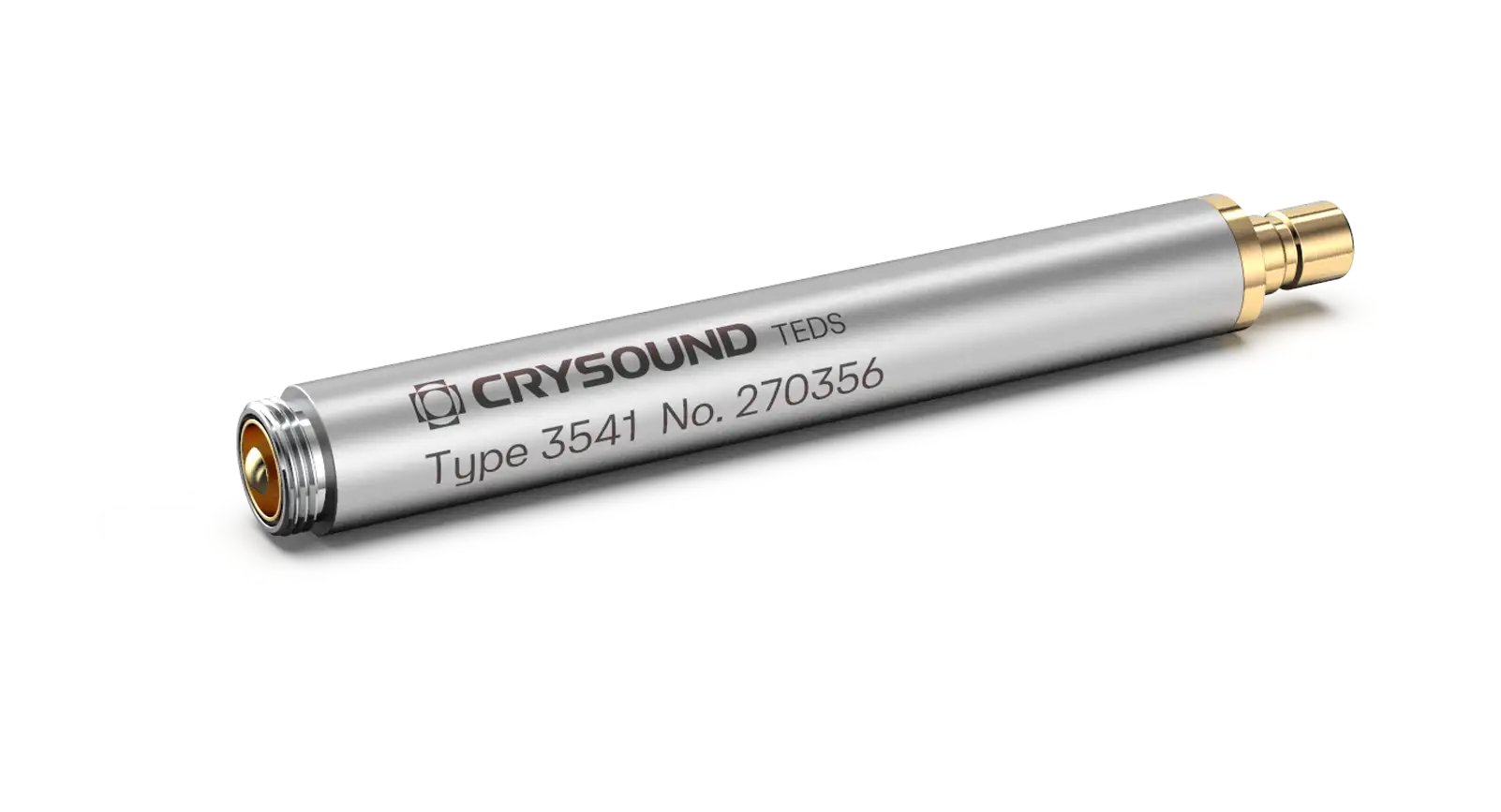

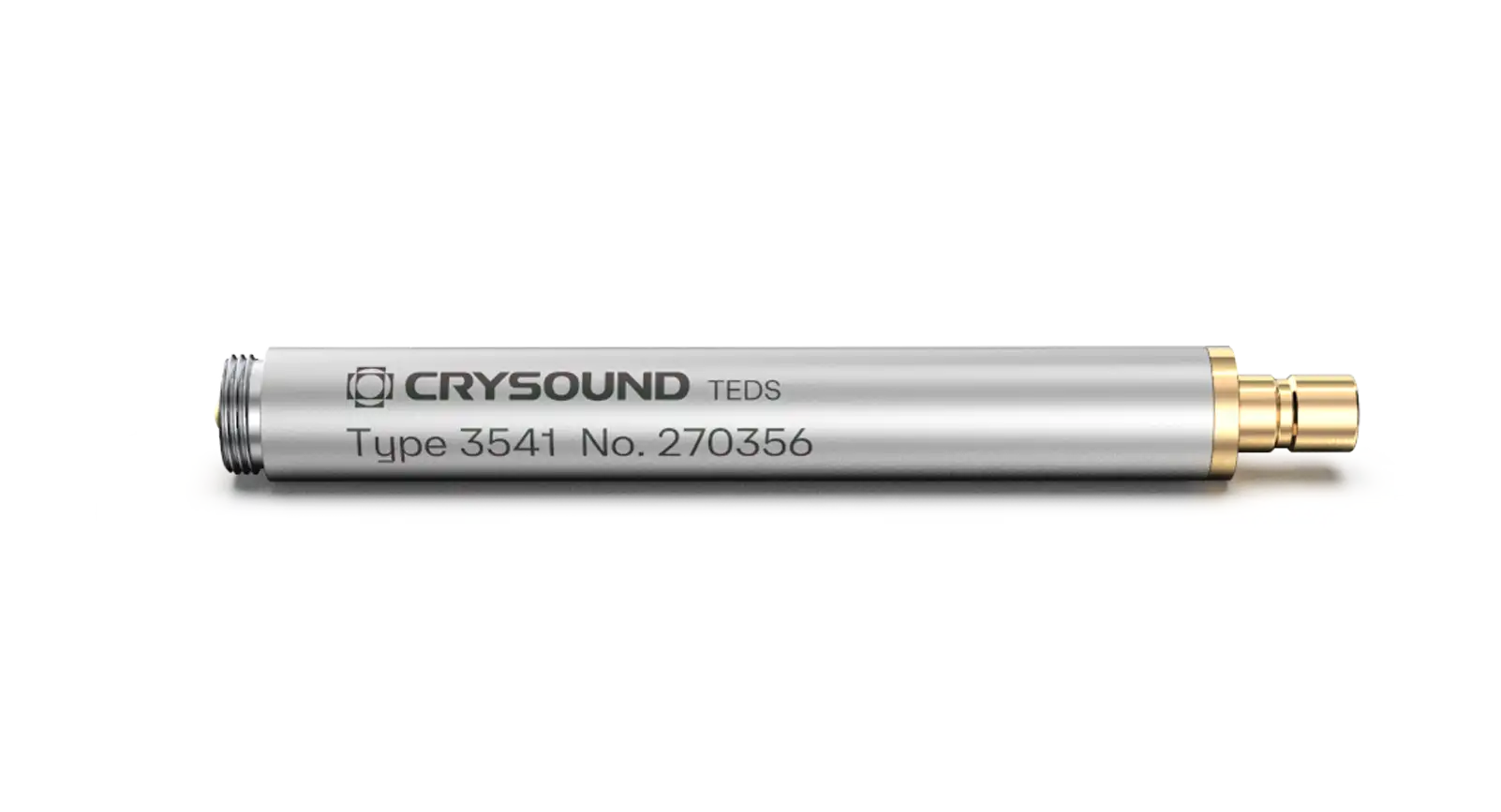

CRY3541 1/4″ Preamplifier, IEPE, SMB Connector
The CRY3541 is a constant-current power preamplifier that can be used with the CRY3000 series 1/4 inch prepolarization measuring microphone and is widely compatible with other brands.
Seamlessly converting high input impedance to low output impedance, the CRY3541 enables the use of longer extension cables without compromising performance. Its low background noise ensures minimal impact on the microphone, while TEDS functionality speeds up testing processes. Designed for durability and resilience, it performs reliably across various environmental conditions.
Technical Specifications
Frequency Response Range
1Hz ~ 200kHz (±0.2 dB)
Input Impedance
>28,0.4pF
Output Impedance
＜50Ω
Distortion (THD)
＜0.1%
Max Output Voltage
＞10Vp
Power Supply
2 mA to 20mA（Typical 4mA）
Nominal Operating Current
4mA
Noise, A-weighting
< 3 µV rms
Noise, linearity (20 ~ 20kHz)
< 4 µV rms
DC bias voltage
12V±2V
Connector Type
SMB
Temperature
-30℃ to +70℃(-22 to 158 °F )
Threaded Coupling
5.7-60 UNS
Diameter
6.35mm(0.25'')
Length
53.5mm(2.11'')
Main Features
- High input impedance, low output impedance
- SMB Interface
- Supports “Smart Transducer Interface” IEEE 1451.4 containing TEDS
- Low background noise
