CRY3718-S01 Ear Simulator Set IEC60318-1
CRY3718-S01 is a simulation ear set specifically designed for measurements in audiology and related fields.
The unique design of CRY3718-S01 enables it to carry out electroacoustic measurements of telephone receivers or headsets in a clear acoustic environment. It is widely utilized in research and development within the fields of headphones, hearing assistance devices, and other related areas
Technical Specifications
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards
IEC 60318-1、 ITU-T P.57 Type 1
Interface Type
BNC
Dynamic Range
23dB to 144dB
Weight
441g
Main Features
- Compliant with IEC 60318-1 standard
- Extensive compatibility
- Durable, reliable, and high-quality
Product Highlights

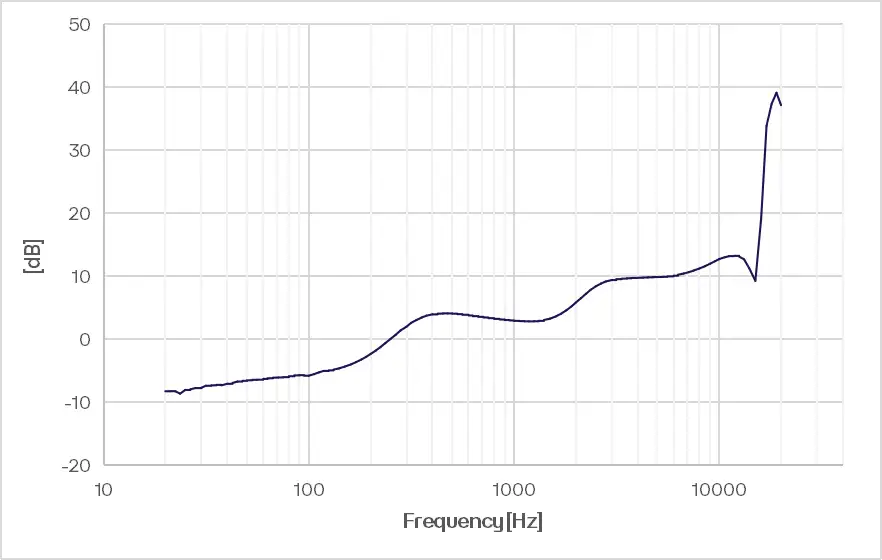

CRY3718-S01 Ear Simulator Set Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
