Acoustic Imaging
CRYSOUND acoustic cameras offer cutting-edge solutions for precise leak detection, partial discharge identification, and mechanical fault diagnosis. Equipped with high-performance microphone arrays and cutting-edge algorithms, our acoustic imaging cameras provide unparalleled precision and reliability. Each of our acoustic imagers is designed to enhance safety, efficiency, and performance across diverse industries.
CRY2110 Noise Sensor
Applicable standards
IEC61672-2,GB/T3785-2
Measurement Range
25~130dBA (Related to the microphone)
Dynamic Range
≥110dB, without switch range
CRY2112 Noise Sensor
Applicable standards
IEC61672-1, GB/T3785-1
Measurement Range
25~130dBA (Related to the microphone)
Dynamic Range
≥110dB, without switch range

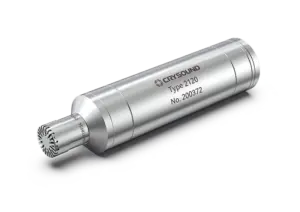

CRY2120 Noise Sensor
Applicable standards
IEC61672-2, GB/T3785-2
Measurement Range
25~130dBA (Related to the microphone)
Dynamic Range
≥110dB, without switch range
CRY2301 Noise Sensor
Applicable standards
IEC61672 class 1、GB/T3785 class 1
Measuring range
25~130dBA
Dynamic range
>110dB
CRY2831 Sound Level Meter
Microphone Type
CRY321
Open Circuit Sensitivity
25mV/Pa(-32dB re 1 V/Pa)±2dB
Frequency Range
20Hz~12.5kHz(±2dB)

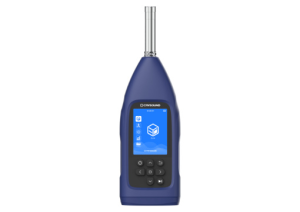

CRY2834 Sound Level Meter
Microphone Type
CRY331
Open Circuit Sensitivity
40mV/Pa(-28dB re 1 V/Pa)±1.5dB
Frequency Range
20Hz~12.5kHz(±2dB)
CRY2851 Sound Level Meter
Microphone type
CRY333
Open circuit Sensitivity
50mV/Pa(-26dB re 1 V/Pa)±2dB
Frequency range
3.15Hz~20kHz(±2dB)
NA41 Set Noise Sensor Outdoor Wind & Rain Cover
Reference Incident Direction
90°
IP Protection Class
IP65
Attenuation of Wind Noise
＞30dB@10m/s (Not damaged when wind speed reaches 30m/s)
NA43 Set Noise Sensor Outdoor Wind & Rain Cover
Reference Incident Direction
90°
IP Protection Class
IP65
Attenuation of Wind Noise
＞30dB@10m/s (Not damaged when wind speed reaches 30m/s)
