The CRY591L is our latest RF switch matrix, designed specifically for RF characterization testing of Bluetooth® headset PCBAs. It boasts exceptional RF performance and high stability, making it perfect for both research and development and production environments. This versatile switch matrix acts as a dynamic interconnection hub between test equipment—such as network analyzers, spectrum analyzers, Bluetooth testers, signal sources, receivers, and devices under test (DUTs)—enabling RF signals to be routed through multiple configurable paths.

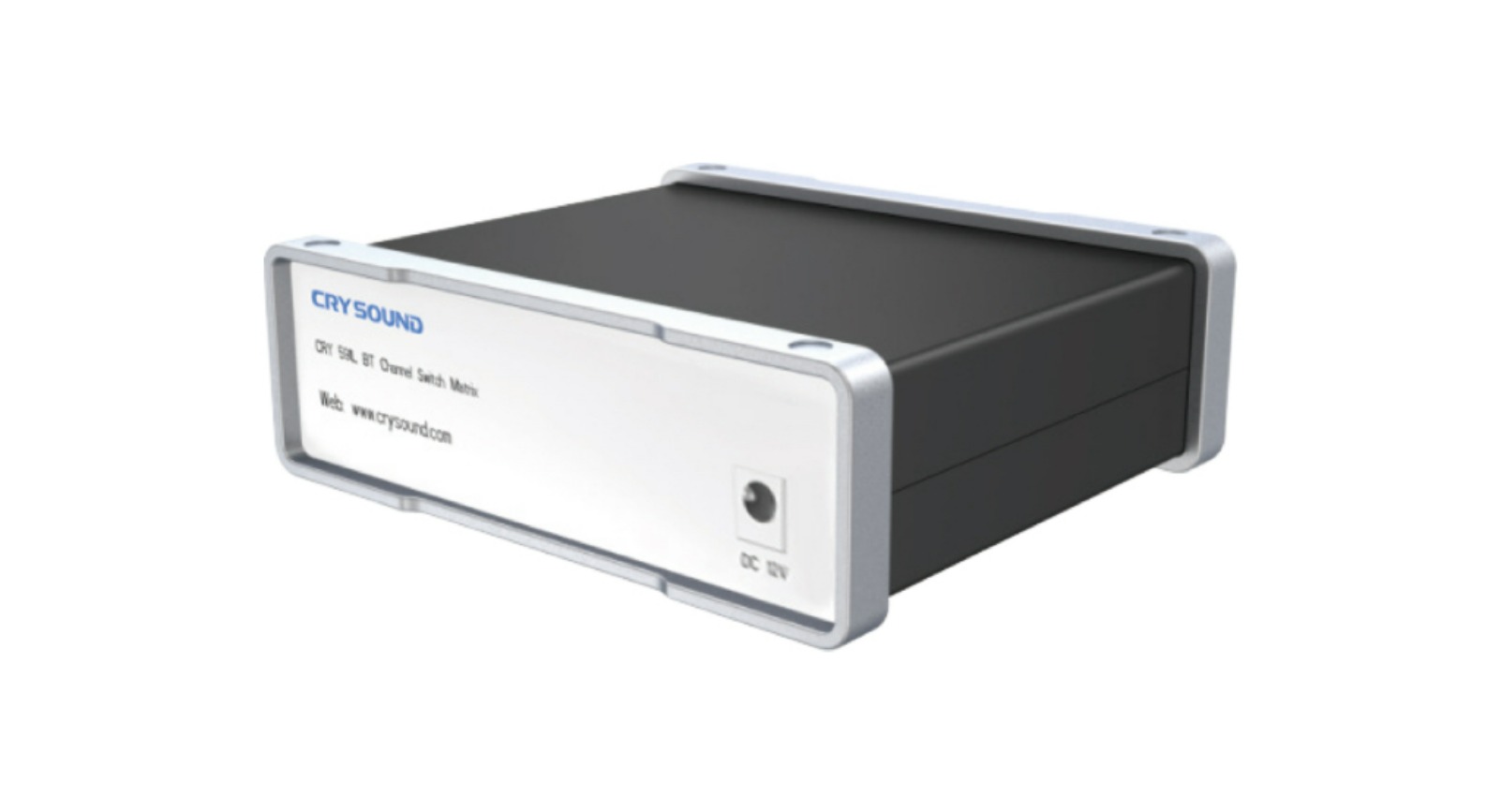

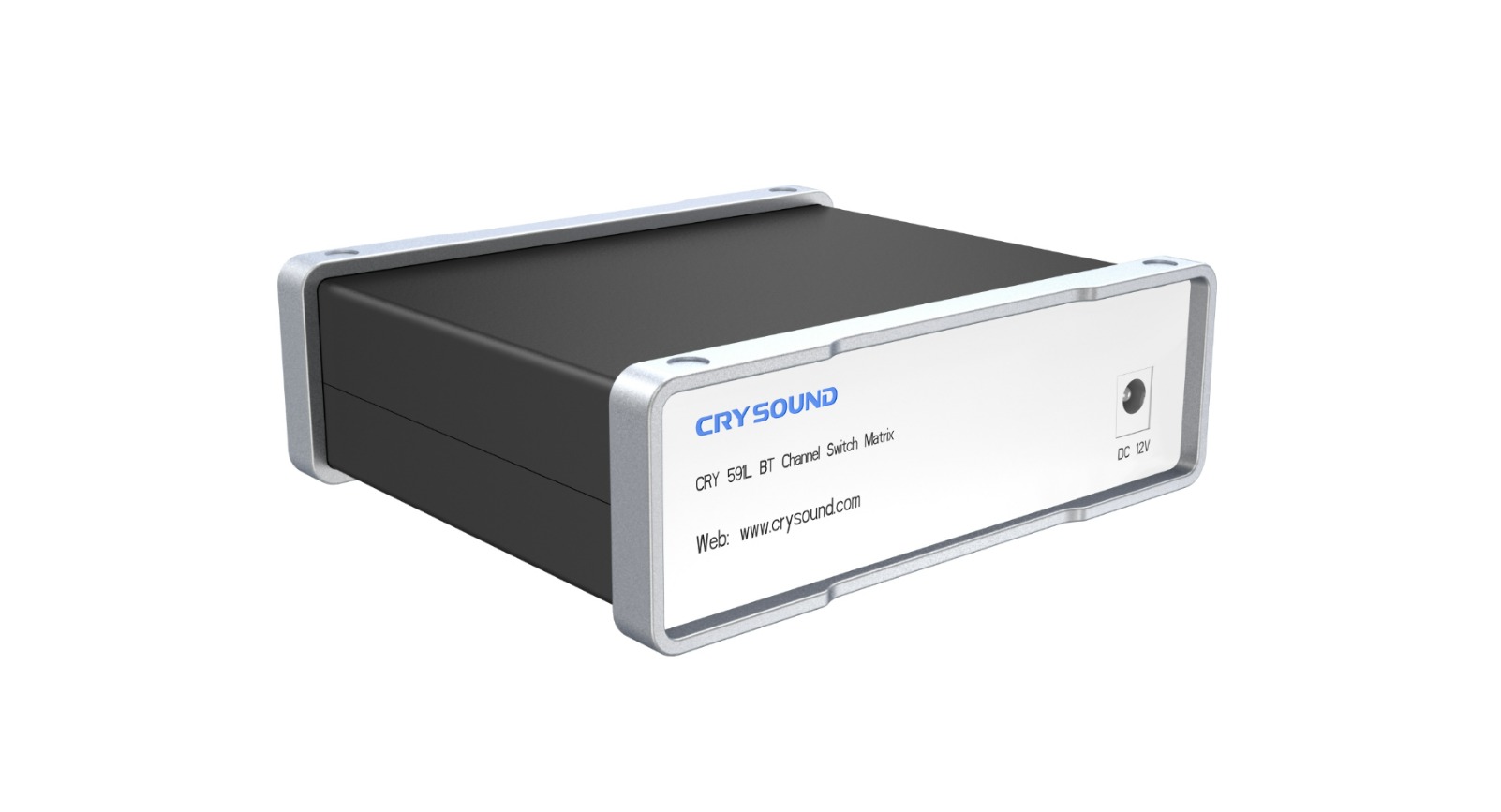

CRY591L Bluetooth Switch Matrix

The CRY591L is our latest RF switch matrix, designed specifically for RF characterization testing of Bluetooth® headset PCBAs. It boasts exceptional RF performance and high stability, making it perfect for both research and development and production environments. This versatile switch matrix acts as a dynamic interconnection hub between test equipment-such as network analyzers, spectrum analyzers, Bluetooth testers, signal sources, receivers, and devices under test (DUTs)-enabling RF signals to be routed through multiple configurable paths.

Product Highlights

Features

PC interface for connection, original imported chip of FT232RL for stable connection.
USB Type-C for easy connection.
Connector type: SMA.
RF switch type: SPDT.

Technical Specifications

Dimension

104*120*42mm

Working band

DC-18GHz

Working temperature

-25℃~65℃

Service Life

5000000 cycles

Impedance

50Ω

Switch time

≤20ms

Cable loss(800MHz-6GHz)

<0.5dB

Isolation(800MHz-6GHz)

>85dB

VSWR(800MHz-6GHz)

<1.15

Main Features

Get in touch

If you are interested or have questions about our products, book a demo and we will be glad to show how it works, which solutions it can take part of and discuss how it might fit your needs and organization.
