CRY592 Audio Filter
The CRY592 is our latest four-channel switching amplifier, engineered to connect devices under test (DUTs) and analyzers, reducing out-of-band switching signals before measurement. This passive filter features custom inductors, designed to handle high power with minimal low-frequency distortion. Additionally, it offers a cost-effective and more efficient solution compared to traditional amplifiers.
Technical Specifications
Quantity of channels (Differential or single-ended)
4
Frequency response
±0.1dB, 20Hz~20kHz
Insert Loss
0.05dB(typical value)
High frequency rejection
>18dB, 200k~20MHz
Max. Input
30Vpk(<20kHz)
THD+N
-86dB@1kHz(typical value)
Crosstalk
50dB@20kHz
Main Features
- Low distortion
- Lower cost
- Efficient

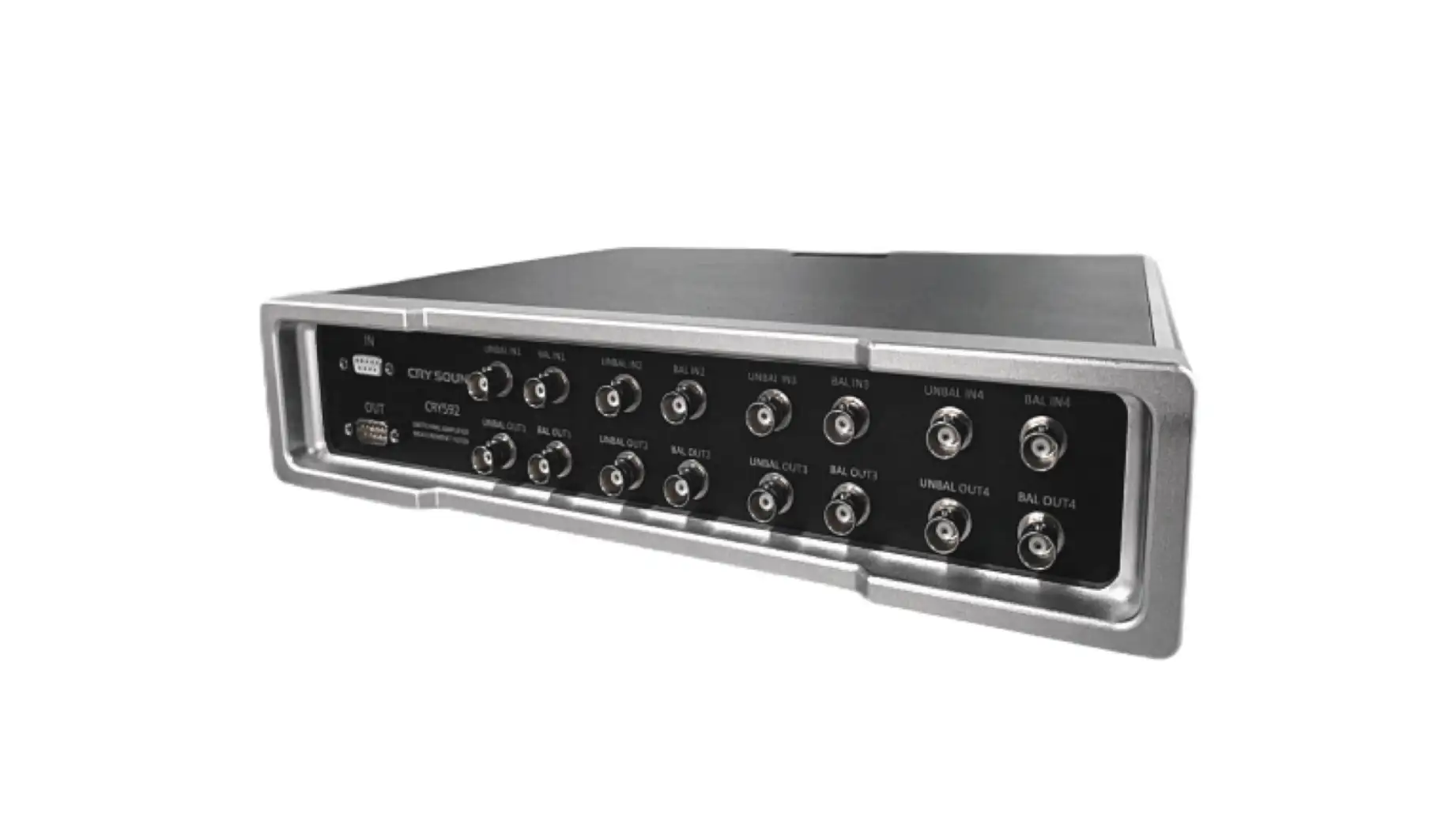

Product Highlights
Features
Passive components adopted for better performance.
Four-channel switching amplifilter.
