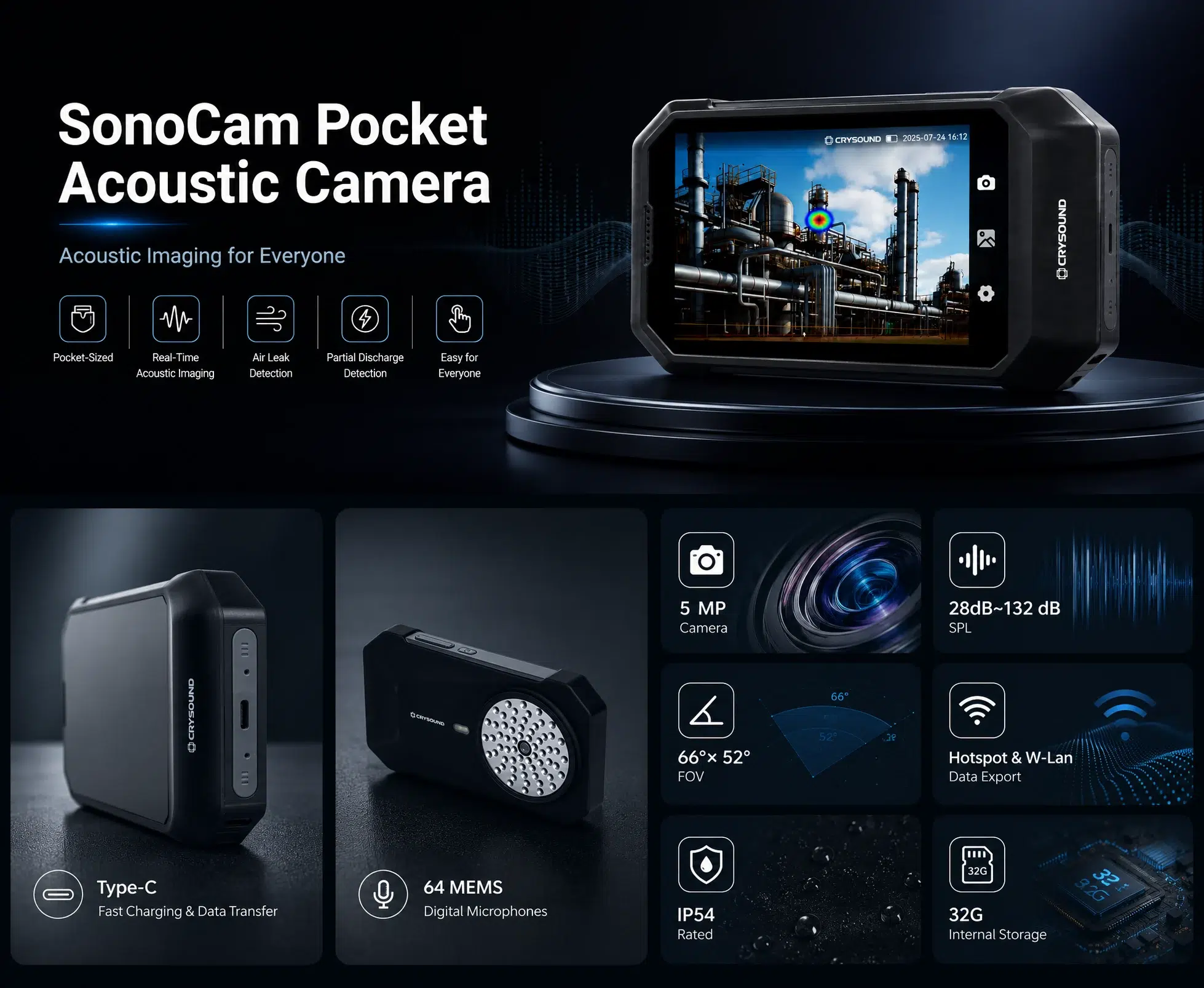

CRY8024 SonoCam Pocket Acoustic Camera
$1,549.99
Key Features
270g Ultra Light
0.3-120M Extensive Detection Range
64 MEMS Digital Microphone
Take Photos and Record Videos
Auto Frequency Selection
Ultrasonic Listening
Data on Your Phone
Instant Remote EmailIP54 Rated

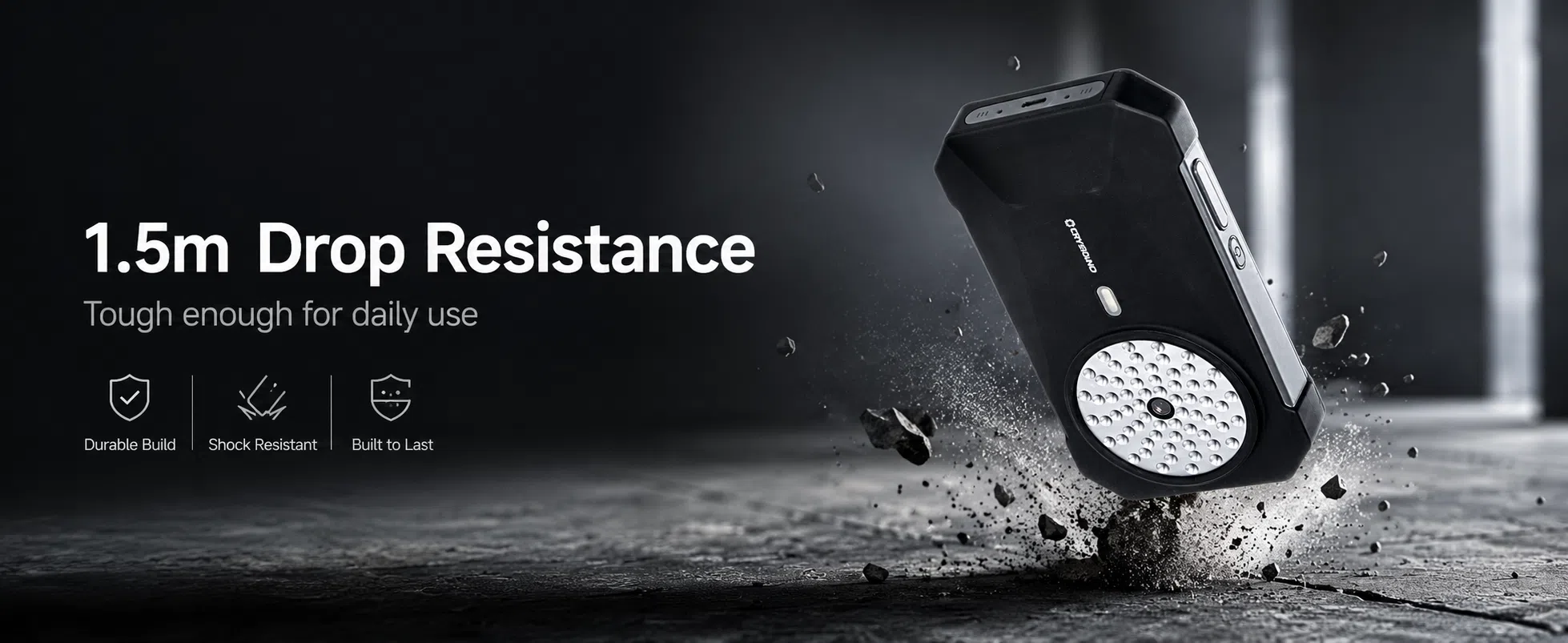

1.5m Drop Test
Customers outside the U.S. can click “Get Quote” to order.
Free Shipping
24x7 Customer Service
30-Day Return
2-Year Worry-Free Warranty
One-on One Expert Support
NEW
CRY8024 SonoCam Pocket Acoustic Camera
$1,549.99
Key Features
270g Ultra Light0.3-120M Extensive Detection Range64 MEMS Digital MicrophoneTake Photos and Record VideosAuto Frequency SelectionUltrasonic ListeningData on Your PhoneInstant Remote EmailIP54 Rated
1.5m Drop Test
Product Highlights
Technical Specifications
Mic Array
64 channels
SPL
28 dB ~ 132 dB
Detection Distance
0.3m ~ 120m
FOV
66° (H) × 52° (V)
Focal length
2.26 mm
Frequency
2kHz ~ 65kHz
Dynamic Range
Up to 12 dB
Screen Type
Capacitive Touchscreen
Screen Size
4.3 inches
Resolution
5M pixels
Adjustable Brightness
Max 400 nits
Internal Storage
32G
Storage Format
.jpg (picture), .mp4 (video), .wav (audio), .cdat (data)
Video Length
Maximum 5 minutes

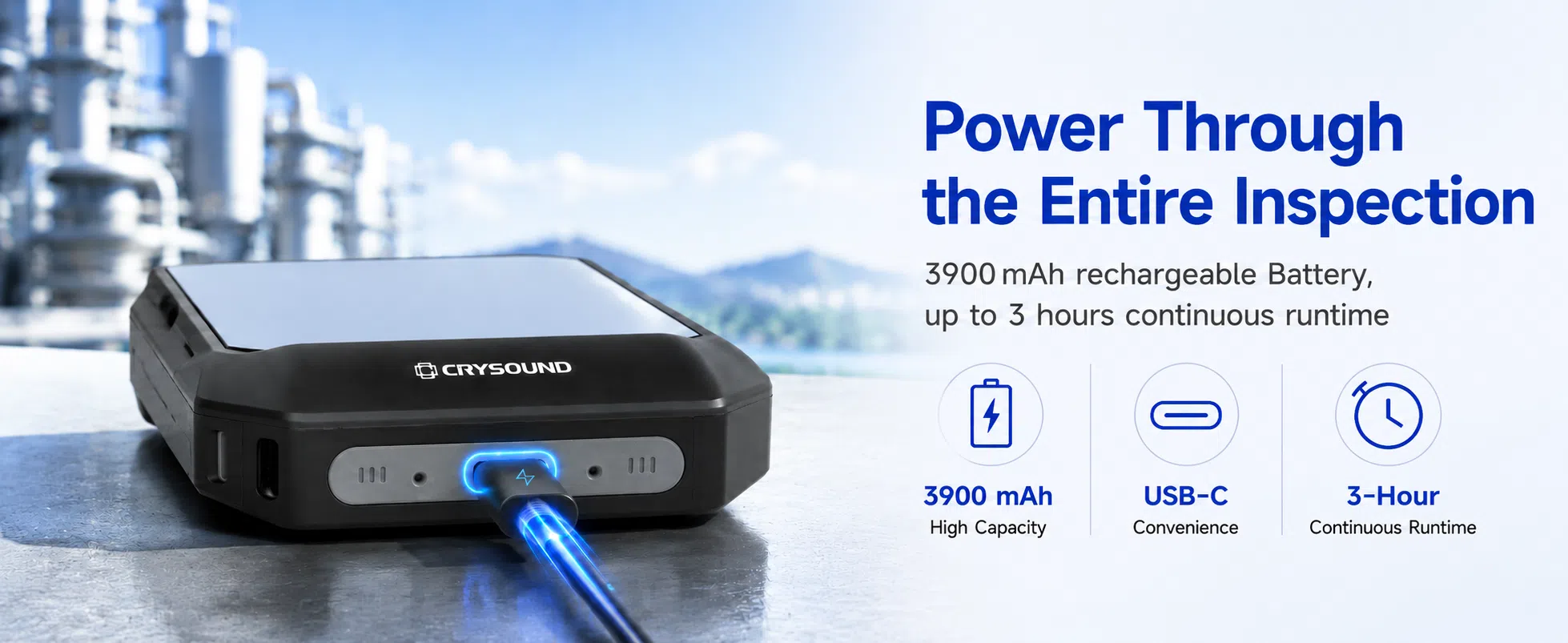

Rechargeable Battery
3.85 V, 3900 mAh
Power Supply
9 V DC/1 A (Charging via USB-C)
Battery Operating Time
Up to 3 hours
USB-C 3.0
For charging, HDMI, data export, and headphone output

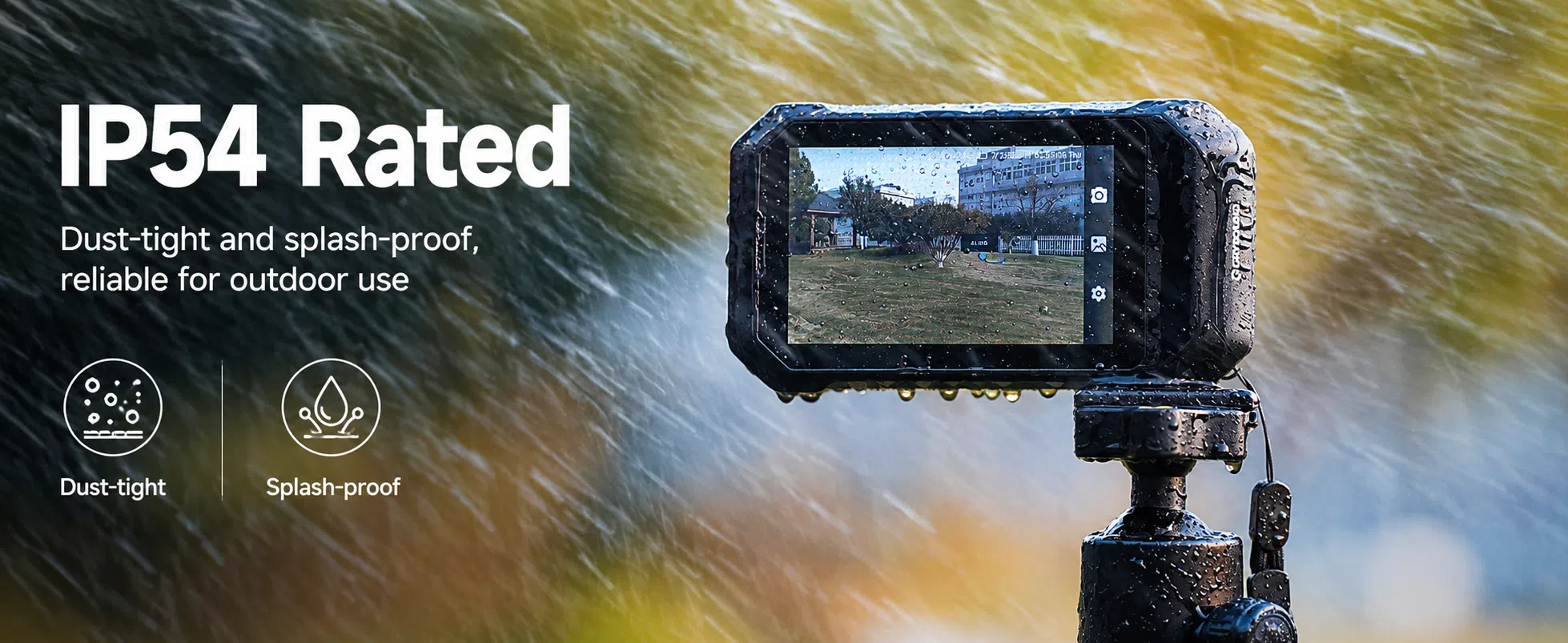

IP Rate
IP54
Product Weight
0.595 lbs(270g)
Product Size
5.91'' × 3.27'' × 1.08''(150mm × 83mm × 27.5mm)
Operating Temperature
-10℃ to +50 ℃
Operating Humidity
10 ~ 95 % Non-condensing
Storage Temperature
-20 to +55 ℃
Data Export Methods
USB-C and Wi-Fi
Wi-Fi
802.11a/b/g/n/ac
Bluetooth Version
BT 5.2
Supported Languages
English, French, German, Italian, Korean, Japanese, Russian, Chinese, etc.
Functions
Sound visualization and localization, Gas Leak detection, Partial discharge detection, Photos and videos recording, Automatic or manual frequency filter
Acoustic Imaging for Everyone
Compressed air leaks, electrical discharge, hidden mechanical faults. They’re everywhere. But most problems go unnoticed until they become expensive. Traditional acoustic imaging tools are powerful. But they’re expensive, bulky, and rarely available when you need them. The CRYSOUND SonoCam Pocket Acoustic Camera changes that. Now seeing problems is easy.

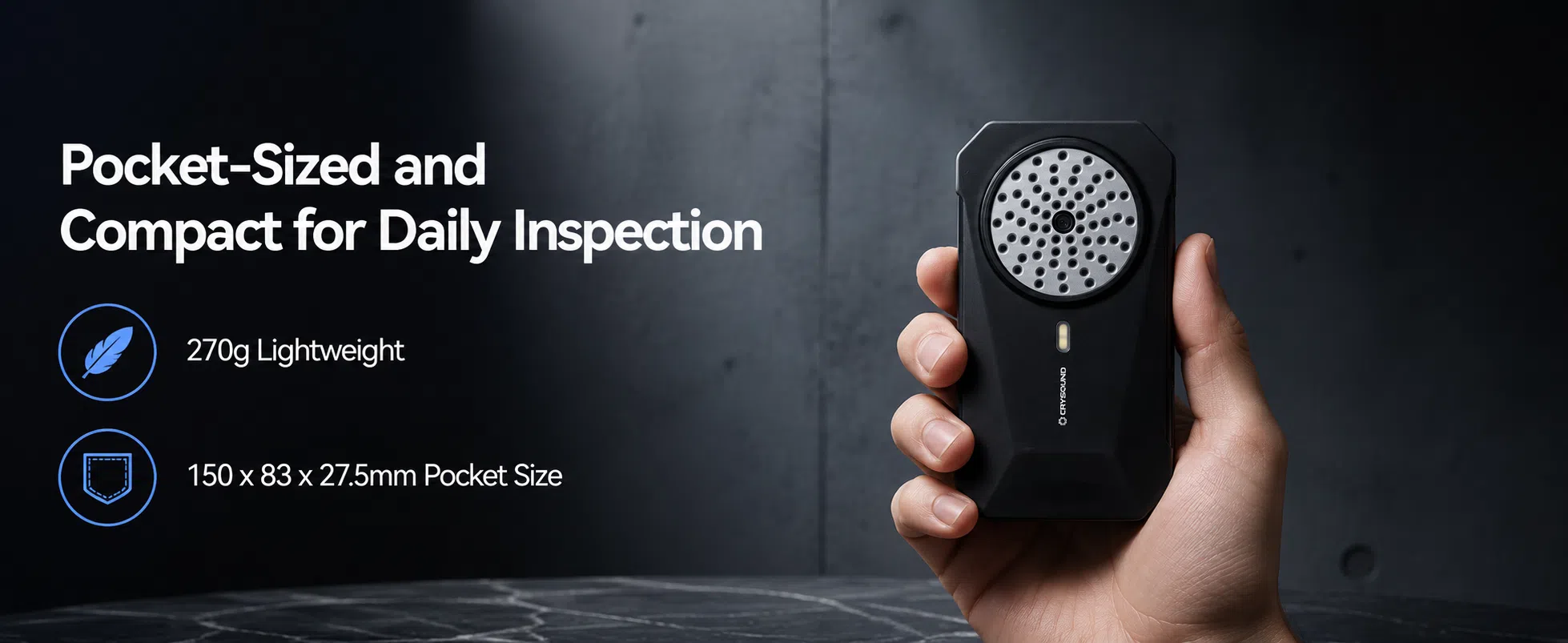

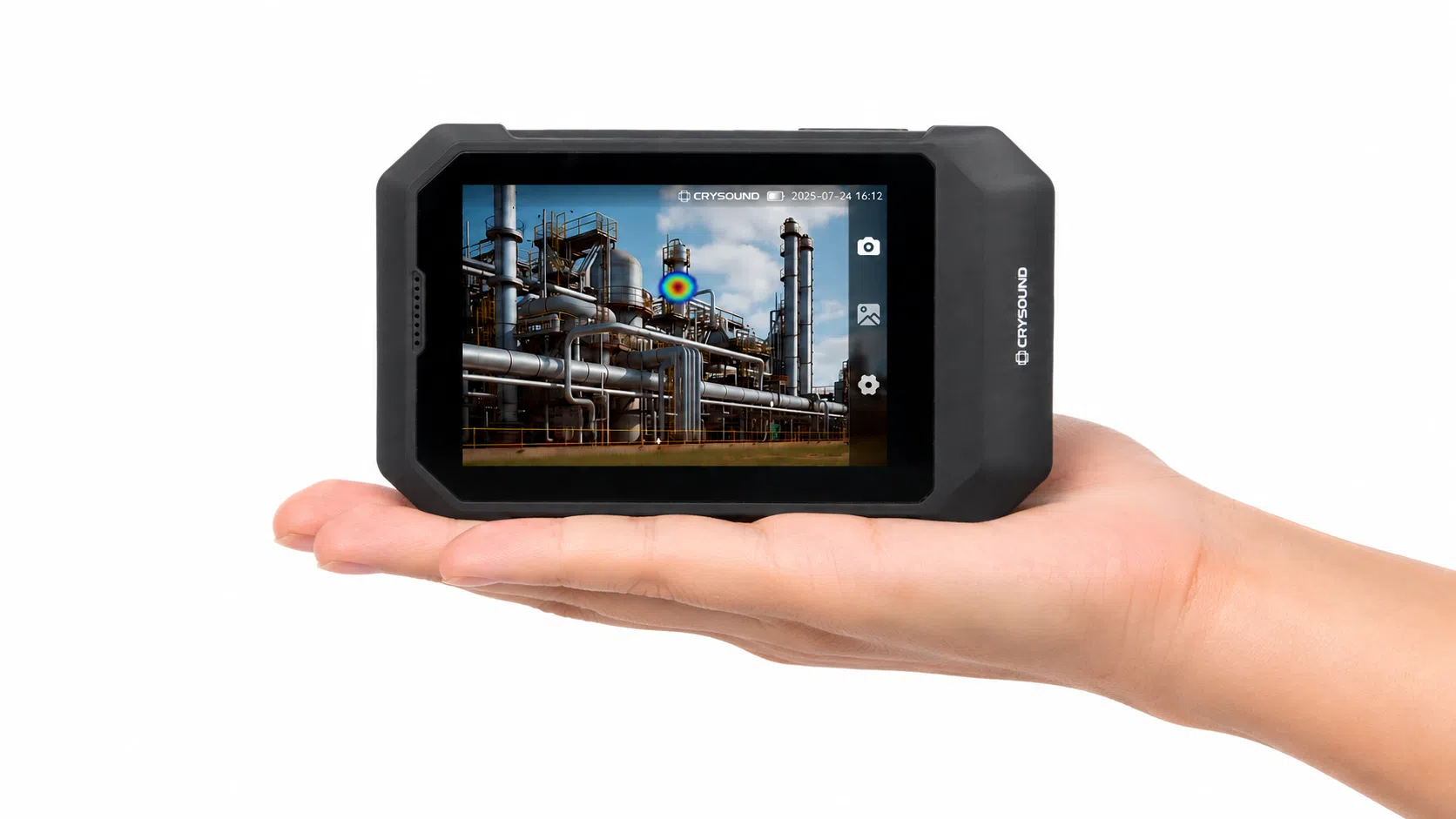

Truly Pocket-Sized

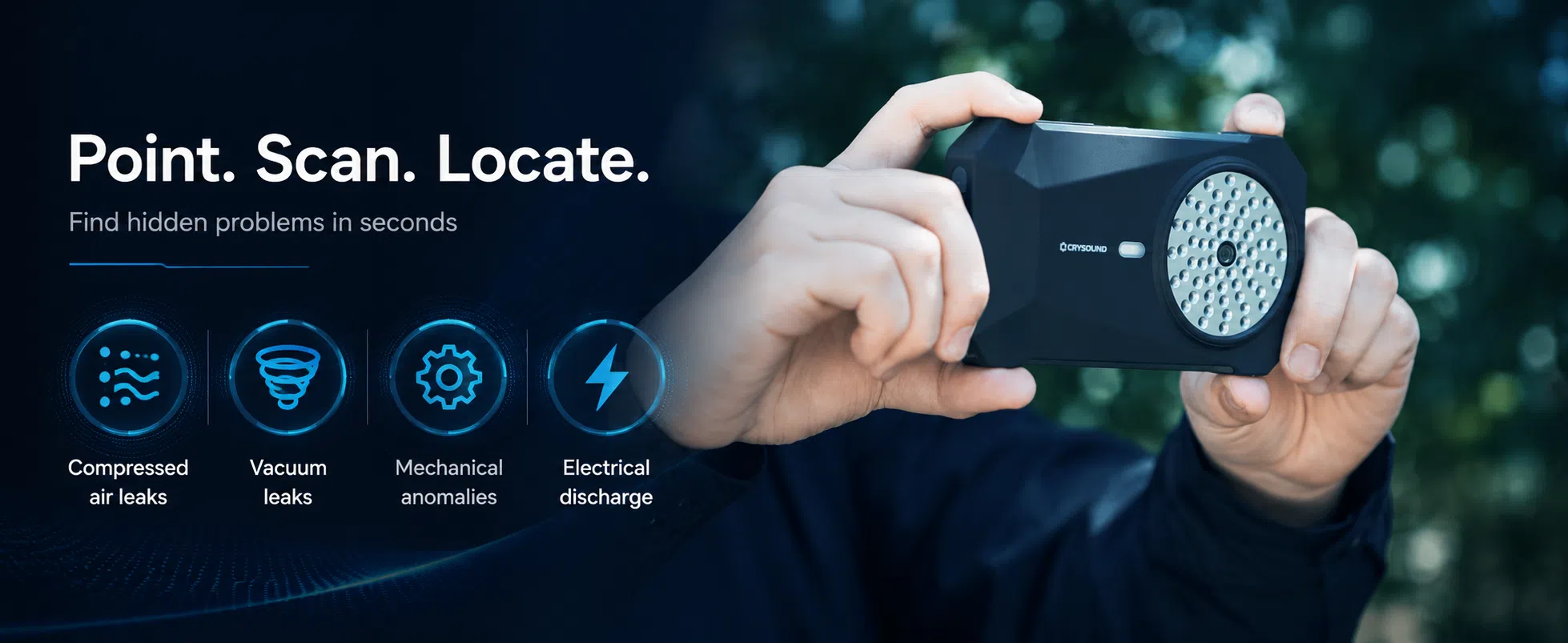

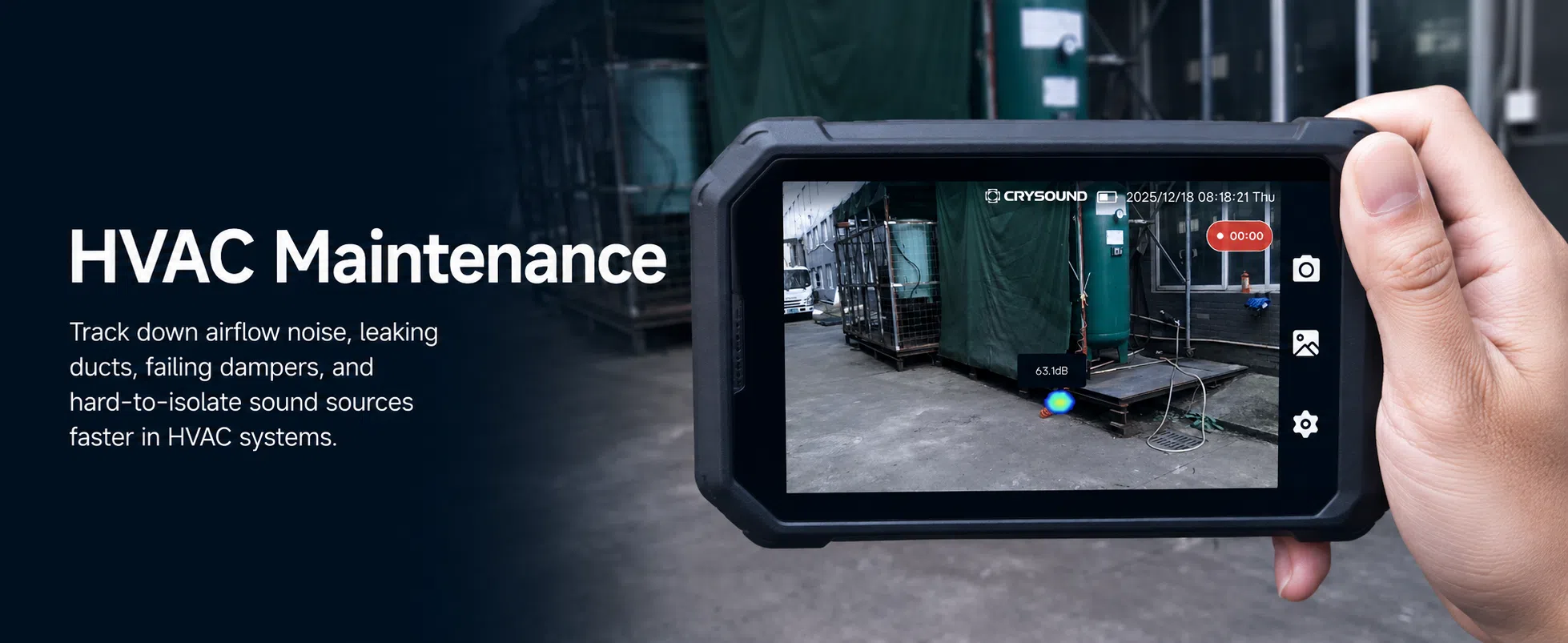

Introducing the CRYSOUND SonoCam Pocket Camera. The pocket-sized acoustic imaging camera, built for everyday industrial inspections. Small enough to carry everywhere. Powerful enough to detect what human ears can’t hear. Compressed air leaks, vacuum leaks, partial discharge, HVAC maintenance, all visualized instantly.

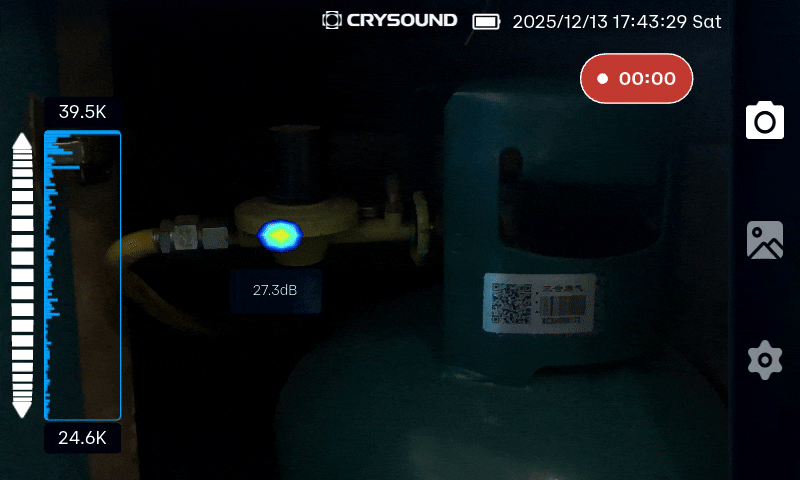

Visualize Sound Instantly
No ultrasonic expertise required. With Auto Frequency Range Selection, CRYSOUND SonoCam Pocket Acoustic Camera automatically finds the optimal detection range —so every technician can inspect with confidence. Capture, share, report wirelessly.

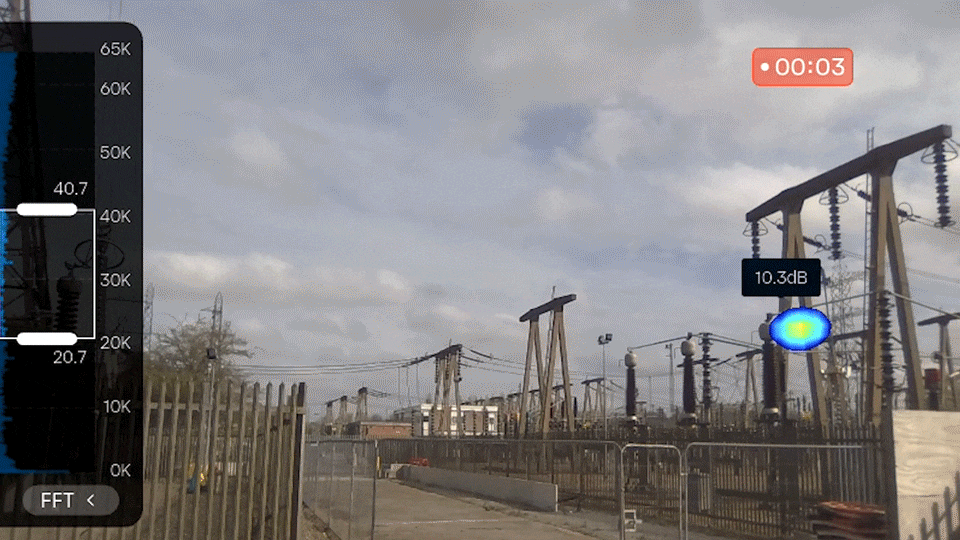

Partial Discharge Screening
The CRYSOUND SonoCam Pocket Acoustic imaging camera puts partial discharge detection in the palm of your hand. Just point, scan, and see. Ultrasonic signatures from PD activity are captured and instantly overlaid onto a live visual image. You don't need to be a high-voltage specialist to know exactly where the problem is.
***Video by Mikeselectricstuff
***Video by Mikeselectricstuff
Compressed Air Leaks Detection
Stop dragging around oversized equipment or waiting for the "good" imager to be available. With SonoCam Pocket Acoustic Camera, you can detect compressed air leaks early, fix them fast, and save energy without breaking the bank.

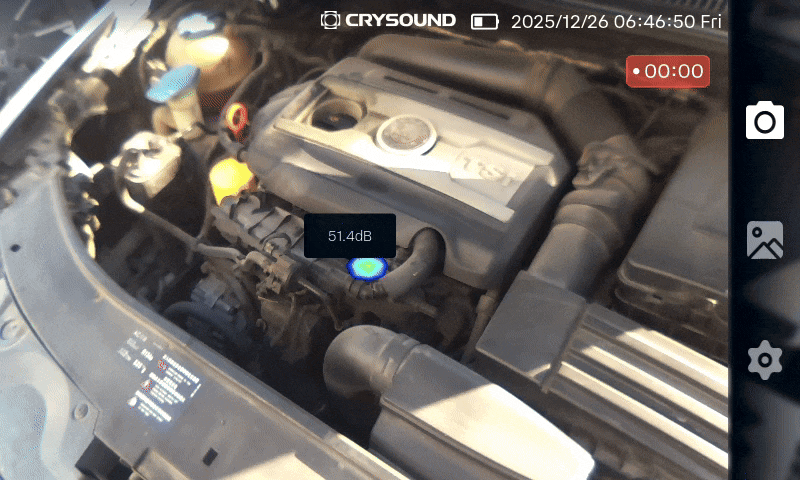

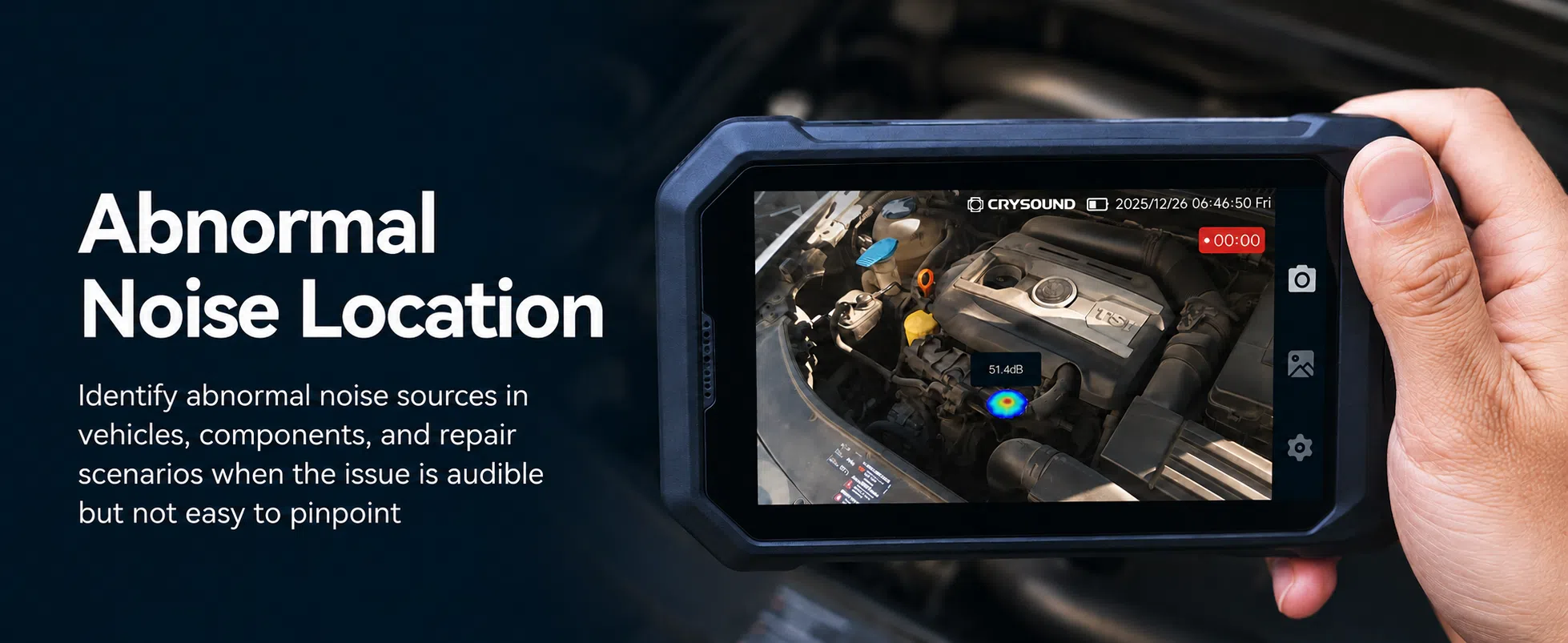

Abnormal Noise Location
Identify abnormal noise sources in vehicles, components, and repair scenarios when the issue is audible but not easy to pinpoint. Instead of tearing apart half the car, you can isolate the exact source in minutes, saving time, and reducing comebacks.
Smart Frequency Selection
Auto from 2kHz to 65kHz for quick, or switch to manual for full control when you need it. Whether you're a first-time user of a seasoned pro, smart frequency selection puts the right tools at your fingertips. Automatically helpful, manually powerful.

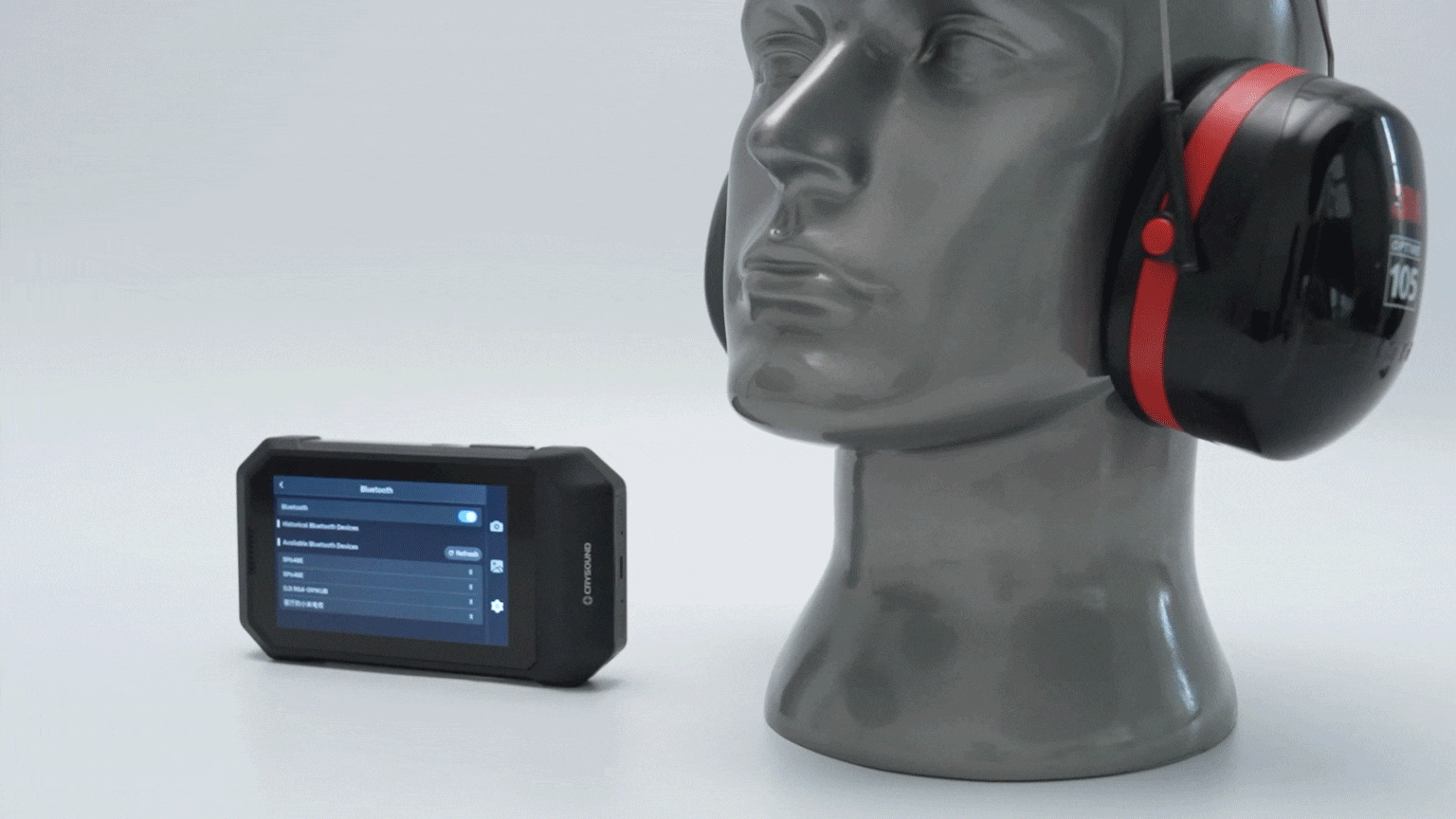

Ultrasonic Listening
Pair your favorite Bluetooth headphones to the imaging camera and listen live while you scan. CRYSOUND acoustic camera converts high-frequency ultrasonic signals into the audible range. so you can actually hear what you're seeing.

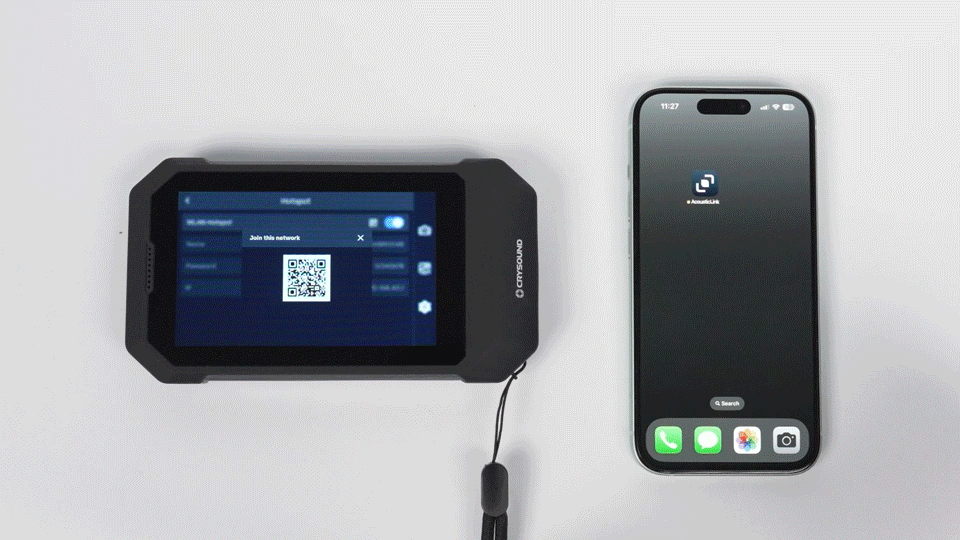

Data on Your Phone
Connect wirelessly to the Acoustic Link APP. View all acoustic images and videos right on your phone. Save, review and share data reports via email with your colleagues faster.
