Microphone Sets

CRYSOUND measurement microphone sets with matched preamplifiers—free-field or pressure-field, 1/4″, 1/2″ and 1″ options for precise acoustic testing.

CRY3101-S01 Free-Field Microphone Set, 1", 50mV/Pa
2k–100kHz 200 channels

CRY3101-S01 Free-Field Microphone Set, 1", 50mV/Pa

Field Type Free-field
Noominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 4Hz to 16kHz±2dB
View Details
CRY3102-S01 Pressure-Field Microphone Set, 1", 50mV/Pa
2k–100kHz 200 channels

CRY3102-S01 Pressure-Field Microphone Set, 1", 50mV/Pa

Field Type Pressure-field
Noominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 4Hz to 8kHz±2dB
View Details
CRY3201-S01 Free-Field Microphone Set, 1/2", 12.5mV/Pa
2k–100kHz 200 channels

CRY3201-S01 Free-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Free-field
Noominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB
View Details

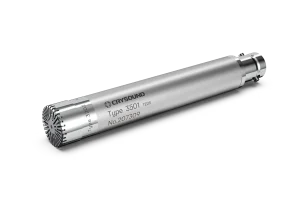

CRY3202-S01 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa
2k–100kHz 200 channels

CRY3202-S01 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Pressure-field
Noominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
View Details

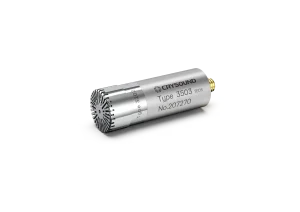

CRY3202-S02 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa
2k–100kHz 200 channels

CRY3202-S02 Pressure-Field Microphone Set, 1/2", 12.5mV/Pa

Field Type Pressure-field
Noominal Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
View Details
CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa
2k–100kHz 200 channels

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa

Field Type Free-field
Noominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
View Details
CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa
2k–100kHz 200 channels

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

Field Type Free-field
Noominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
View Details

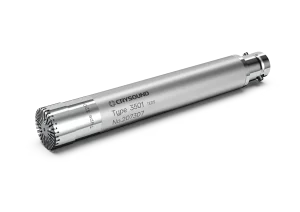

CRY3204-S01 Pressure-Field Microphone Set, 1/2", 50mV/Pa
2k–100kHz 200 channels

CRY3204-S01 Pressure-Field Microphone Set, 1/2", 50mV/Pa

Field Type Pressure-field
Noominal Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 10kHz±2dB
View Details
CRY3213 NVH Measurement Microphone
2k–100kHz 200 channels

CRY3213 NVH Measurement Microphone

Field Type Free-field
Sensitivity(±2 dB) 50 mV/Pa, -26 dB re 1V/Pa
Frequency Response 3.15 Hz-20 kHz ±2 dB
View Details
CRY3261-S02 Free-Field Microphone Set, 1/2", 450mV/Pa
2k–100kHz 200 channels

CRY3261-S02 Free-Field Microphone Set, 1/2", 450mV/Pa

Field Type Free-field
Noominal Sensitivity 450 mV/Pa, -7 dB±2dB re 1V/Pa
Frequency Response 10 Hz to 16kHz ±2dB; 6 Hz to 20kHz ±3dB
View Details

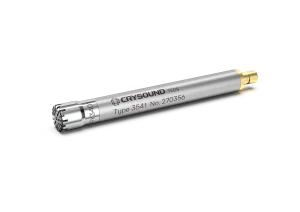

CRY3401-S01 Free-Field Microphone Set, 1/4", 15.8mV/Pa
2k–100kHz 200 channels

CRY3401-S01 Free-Field Microphone Set, 1/4", 15.8mV/Pa

Field Type Free-field
Noominal Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 40kHz±2dB
View Details
CRY3402-S01 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa
2k–100kHz 200 channels

CRY3402-S01 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa

Field Type Pressure-field
Noominal Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB
View Details

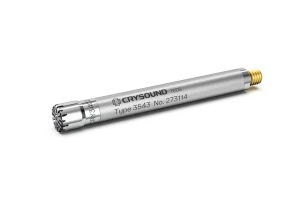

CRY3402-S02 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa
2k–100kHz 200 channels

CRY3402-S02 Pressure-Field Microphone Set, 1/4", 1.6mV/Pa

Field Type Pressure-field
Noominal Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB
View Details

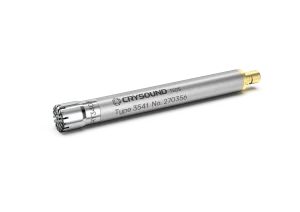

CRY3403-S01 Free-Field Microphone Set, 1/4", 4mV/Pa
2k–100kHz 200 channels

CRY3403-S01 Free-Field Microphone Set, 1/4", 4mV/Pa

Field Type Free-field
Noominal Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB
View Details
CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa
2k–100kHz 200 channels

CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa

Field Type Free-field
Noominal Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB
View Details
CRY3404-S01 Pressure-Field Microphone Set, 1/4", 0.56mV/Pa
2k–100kHz 200 channels

CRY3404-S01 Pressure-Field Microphone Set, 1/4", 0.56mV/Pa

Field Type Pressure-field
Noominal Sensitivity 0.56mV/Pa, -65±3dB re 1V/Pa
Frequency Response 10Hz to 20kHz±2dB
View Details

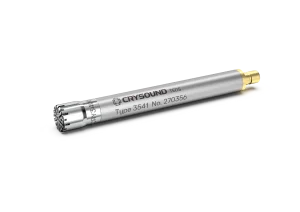

CRY3406-S01 Pressure-Field Microphone Set, 1/4", 15.8mV/Pa
2k–100kHz 200 channels

CRY3406-S01 Pressure-Field Microphone Set, 1/4", 15.8mV/Pa

Field Type Pressure-field
Noominal Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 20kHz±2dB
View Details

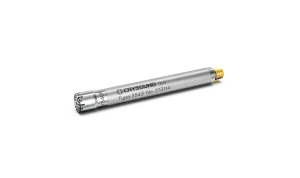

CRY3408-S01 Pressure-field Prepolarized High-level Microphone Set, 1/4", 0.14mV/Pa
2k–100kHz 200 channels

CRY3408-S01 Pressure-field Prepolarized High-level Microphone Set, 1/4", 0.14mV/Pa

Field Type Pressure-field
Noominal Sensitivity 0.14 mV/Pa, -77 dB re 1V/Pa
Frequency Response 10 Hz to 20 kHz ±2 dB
View Details
