Accelerometers

CRYSOUND accelerometers for vibration measurement—single-axis and triaxial, IEPE or charge output for lab research and industrial condition monitoring.

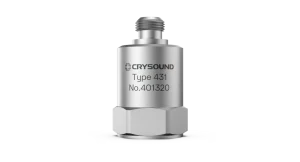

CRY431 IEPE Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz
2k–100kHz 200 channels

CRY431 IEPE Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1000g
Sensitivity (25℃) 5mV/g (160Hz)
Frequency Response 1Hz to 12kHz(±1dB)
View Details
CRY432 Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz
2k–100kHz 200 channels

CRY432 Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz

Measuring Range (Peak) ±1,000g pk
Sensitivity (25℃) 5mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±1dB)
View Details

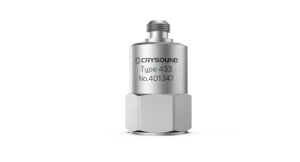

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz
2k–100kHz 200 channels

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Measuring Range (peak) 100mV/g(160Hz)
Frequency Response 0.5 Hz to 8 kHz(±1 dB)
View Details

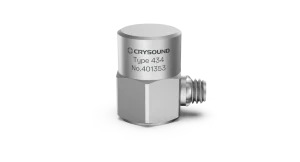

CRY434 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz
2k–100kHz 200 channels

CRY434 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 8kHz(±1dB)
View Details

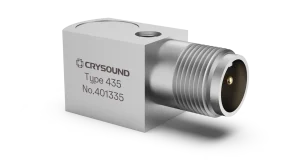

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz
2k–100kHz 200 channels

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz

Dynamic Specification ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 6kHz(±10%); 0.5Hz to10kHz(±3dB)
View Details

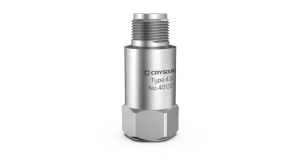

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz
2k–100kHz 200 channels

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 12kHz(±10%); 0.5Hz to 20kHz(±3dB)
View Details

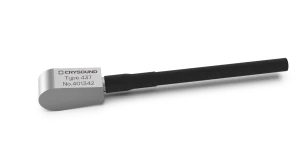

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz
2k–100kHz 200 channels

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 2Hz to 8kHz(±1dB)
View Details

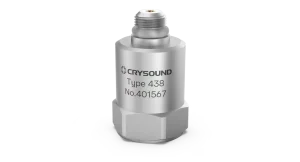

CRY438 IEPE Accelerometer, 1 Axis, 10mv/g, ±500g pk, 1Hz to 10kHz
2k–100kHz 200 channels

CRY438 IEPE Accelerometer, 1 Axis, 10mv/g, ±500g pk, 1Hz to 10kHz

Measuring Range (Peak) ±500g
Sensitivity (25℃) 10mV/g (160Hz)
Frequency Response 1Hz to 10kHz(±1dB); 0.6Hz to 20KHz(±3dB)
View Details

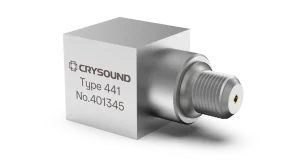

CRY441 Charge Accelerometer, 1 Axis, 5pC/g, ±2500g pk, 1Hz to 10kHz
2k–100kHz 200 channels

CRY441 Charge Accelerometer, 1 Axis, 5pC/g, ±2500g pk, 1Hz to 10kHz

Dynamic Specification ±2500g pk
Measuring Range (peak) 5pC/g(160Hz)
Sensitivity (25℃) 1Hz to 10kHz(±1dB)
View Details

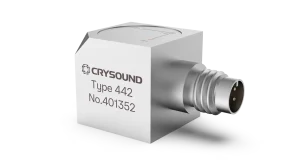

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz
2k–100kHz 200 channels

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz

Measuring Range (peak) ±50g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 0.5Hz to 5kHz(±1dB)
View Details

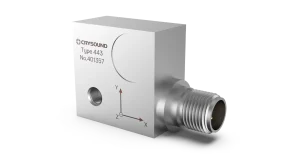

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz
2k–100kHz 200 channels

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz

Measuring Range (peak) ±100g pk
Sensitivity (25℃) 50mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)
View Details

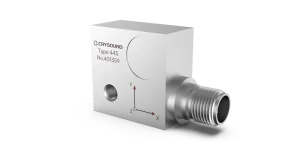

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
2k–100kHz 200 channels

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz

Measuring Range (peak) ±80g pk
Sensitivity (25℃) 100mV/g(160Hz)
Frequency Response 1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)
View Details

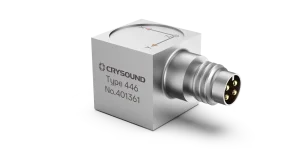

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz
2k–100kHz 200 channels

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz

Measuring Range (peak) ±500g pk
Sensitivity (25℃) 10mV/g(160Hz)
Frequency Response 1Hz to 5kHz(±1dB)
View Details
