Advanced Inspection System Integrating Acoustic and Infrared Imaging
Audiovisual, Infrared & Analog Input

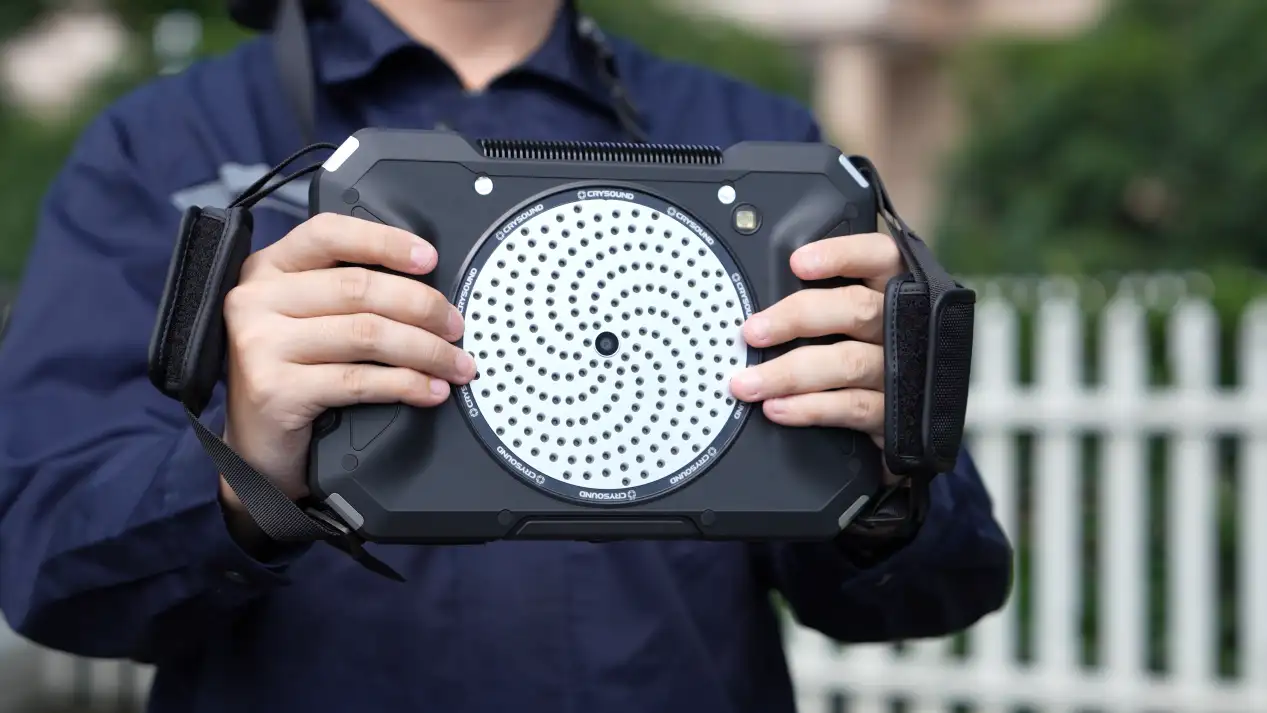

The latest generation acoustic camera, the CRY8120 Series, features 200 MEMS microphones and a 200kHz sampling rate. In partial discharge (PD) detection, it can precisely pinpoint even the smallest fault points, display real-time PRPD maps, identify discharge types, and deliver highly accurate assessments of equipment operational status. Additionally, the device supports infrared modules and analog signal inputs, with plans for future compatibility with a broader range of sensors.
A microphone array with up to 200 channels

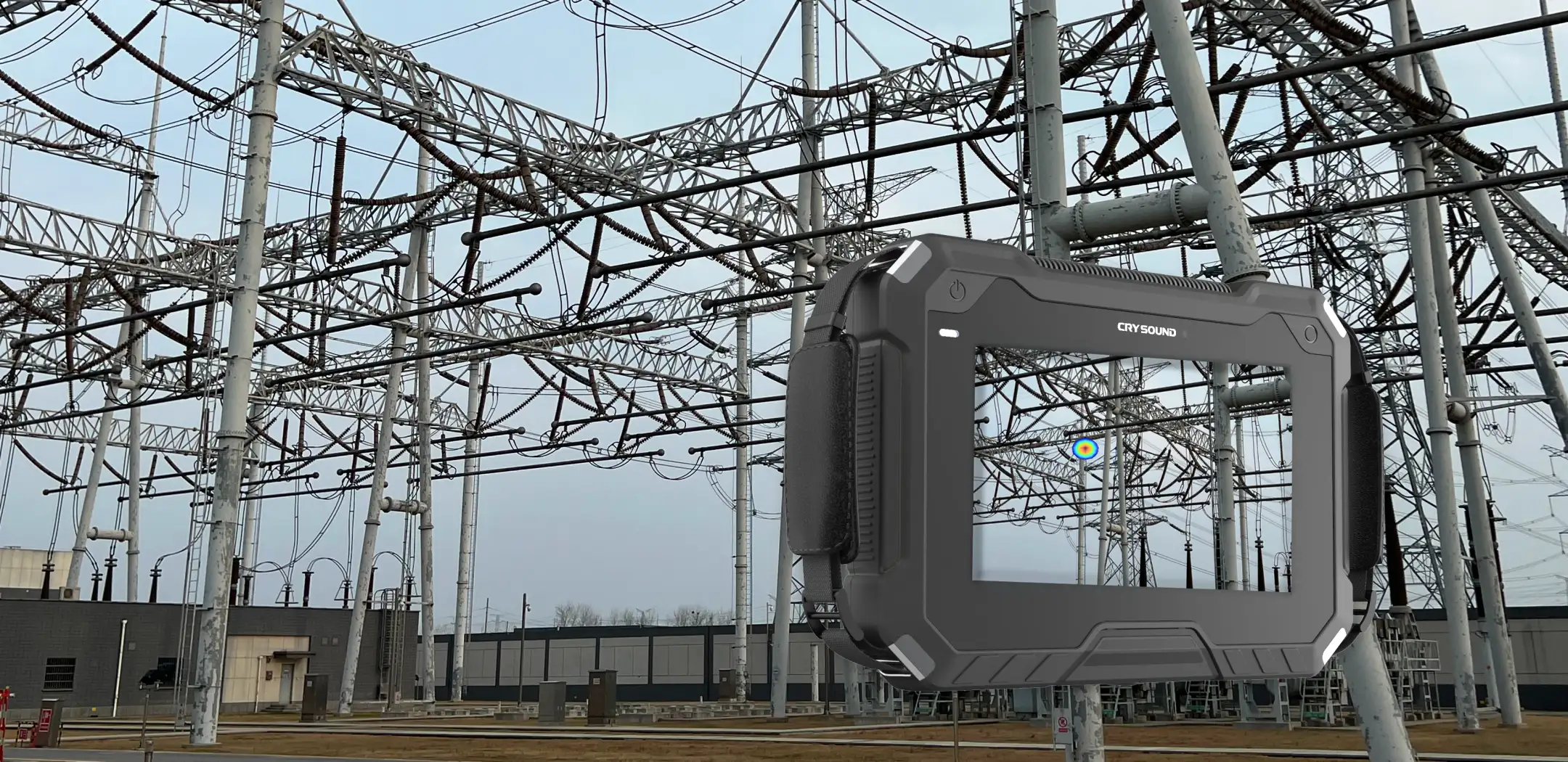

The upgraded microphone array brings higher accuracy in detecting PD.
An all-in-one solution
The CRY82120 series is a complete solution with infrared modules and analog sensor input.
how do I hear the ultrasound audio?
The device retains the sound monitoring function of traditional ultrasonic detection equipment, processes the received ultrasonic signals using an algorithm of amplification, frequency reduction, volume adjustment, and power amplification processing, and eventually produces audio signals that can be heard by the human ear. The user can insert 3.5mm interface headphones to observe the strange sound source.
Makes fault determination more intuitive
You can listen to the audio signal to assess its features; a partial discharge of the audio will produce a distinct discharge sound.
Widening the hearing threshold of the ear
Through a variety of audio processing procedures, the human ear can perceive ultrasonic waves.

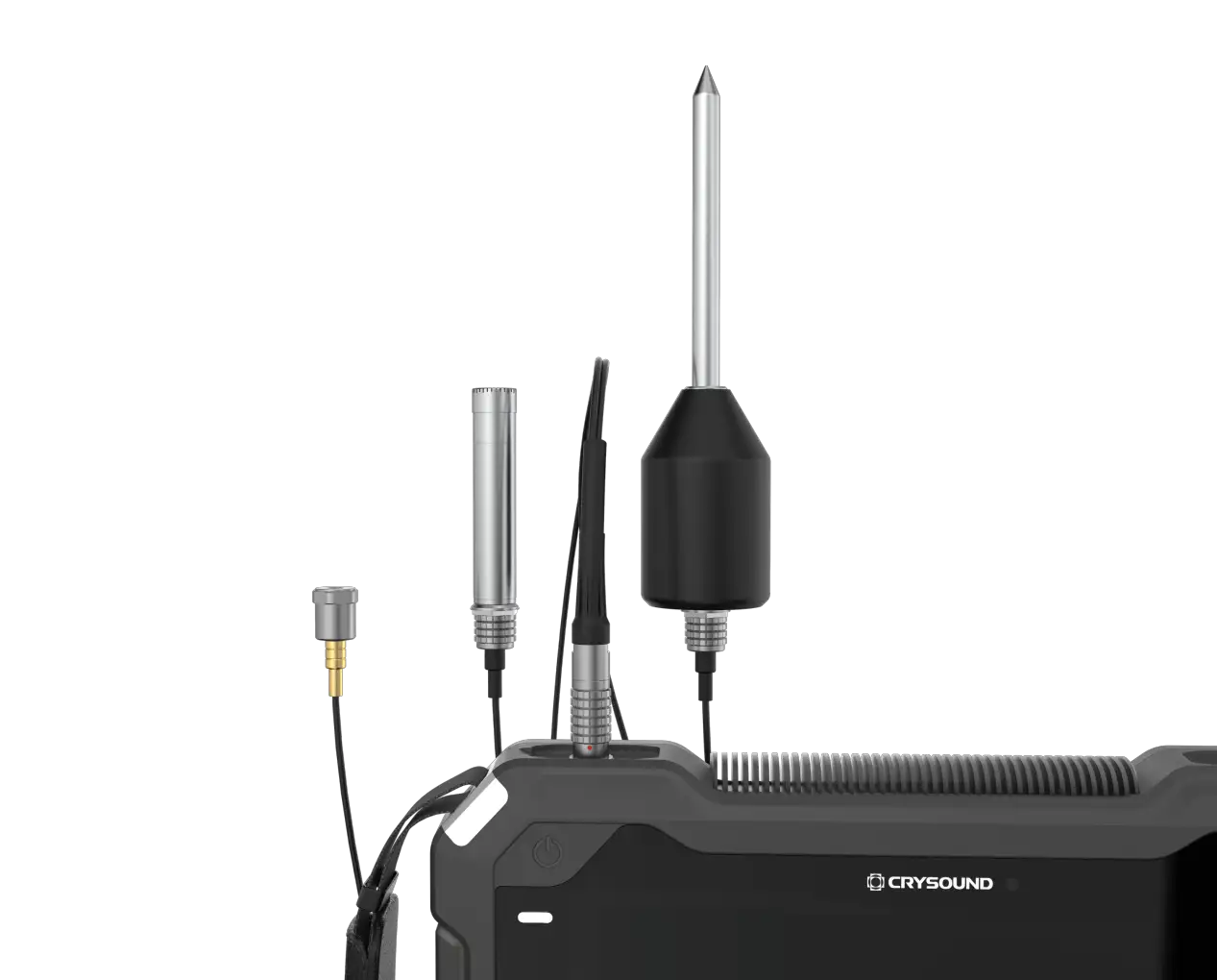

Combining multiple sensors in one inspection device
The Acoustic Imaging Camera preserves both type-C and analog signal ports to allow access to different sensors. When a single sensor cannot be adequately examined, it is feasible to switch to another sensor that is more suited to the current situation.
Efficient Detection
The Acoustic Imaging Camera is an extremely effective inspection tool due to its multi-sensor access.
Reduced equipment costs
One device can perform the detection function of numerous devices, eliminating the need to purchase several devices.

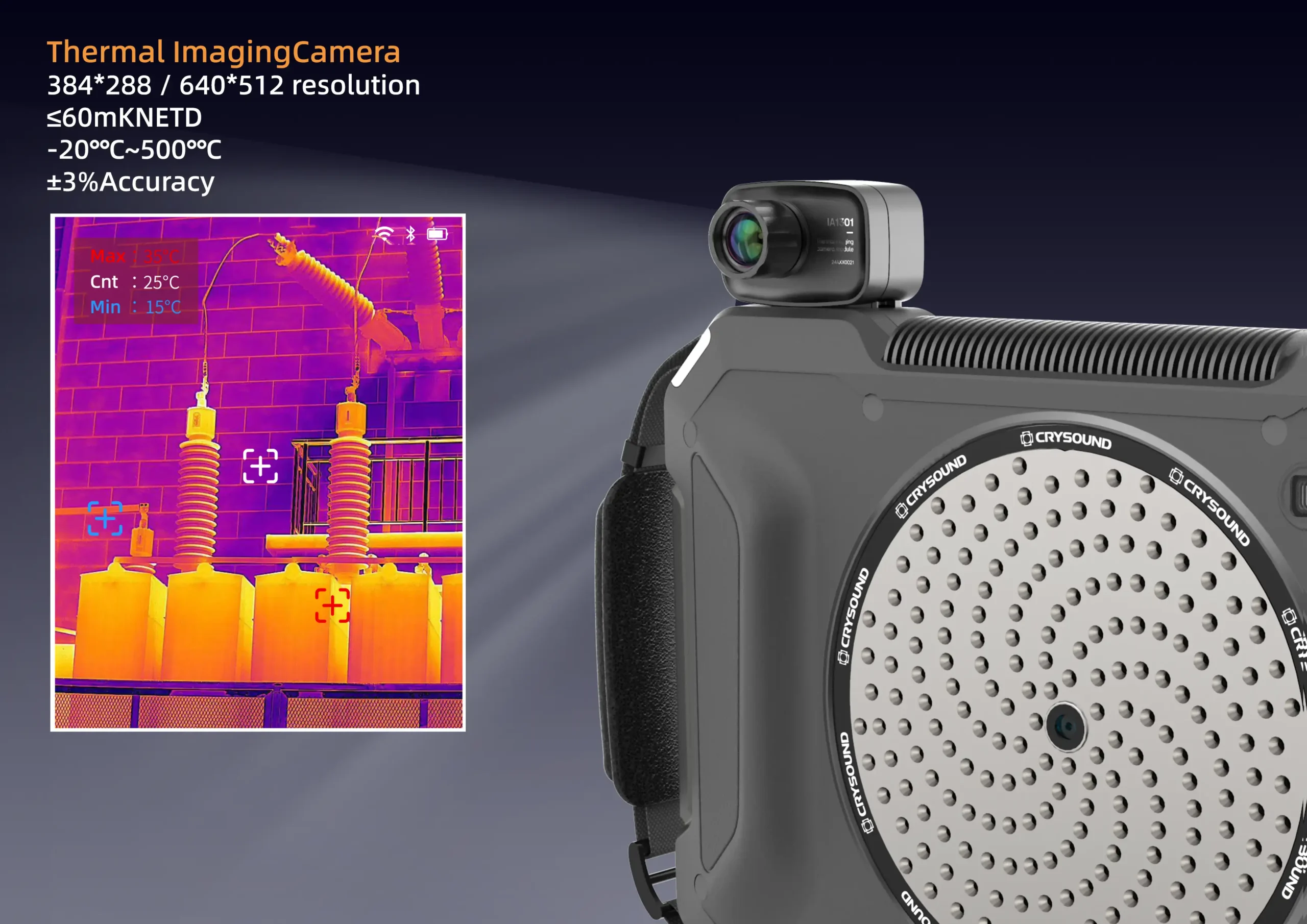

Acoustic imaging & infrared capabilities for additional testing instruments
The sound Imaging Camera transformed the infrared module by increasing its ability to collect temperature data while doing sound testing on equipment. In power system testing, partial discharges and overheating defects can be detected simultaneously.
Hot-plug infrared module
The gadget connects to the infrared module via the type-C interface, which is both convenient and efficient to operate.
Support split-screen display for infrared acoustic imaging
Infrared and acoustic imaging are displayed on the same screen, enabling for a more intuitive and detailed evaluation of power equipment condition.
System Devices
CRY8124 Advanced Acoustic Imaging Camera
