SonoLab Acoustic Analysis Software
SonoLab is a powerful, accurate and flexible audio testing software. Paired with the CRY6151B, it can measure nearly any audio device, from simple microphones and speakers to complex Bluetooth headphones, smart devices, and other electro-acoustic components.
Since the launch of SonoLab, our audio testing solutions have been well received by users for their fast and accurate audio testing algorithms, simple and easy-to-use testing operations, and wide application flexibility, which have earned them the trust of users. Our hardware is designed for audio measurement applications, with powerful functionality and strong stability, and seamlessly integrates with SonoLab.
The software is absolutely performed with self-developed algorithm for testing. More than 70 functional modules have been provided and the interface is user-friendly, thereby satisfying different testing needs for production and laboratory measurement. CRY6151B supports 8-channel input and 4-channel output, and enables simultaneous operation with the software.0
Technical Specifications
Earphone
ANC, ENC, SPKEQ, Background and current noise test, Hearing test, Functionality of earphone
Other
Directional testing, Noise and vibration, Open-loop play and acquisition, Device calibration, Scan SN, Automated validation with limits, MES function, Automation, Data saving, Authorization, Sequence properties, Single-step test
Transmission method
Customized communication, Wired connection, Bluetooth, HID, ADB, TCP/IP, Plug-in application, Serial ports
Test
Concurrent test, Serial test
CPU
Intel i3-13100 or better
RAM
8GB or better
Resolution
1920*1080 or better
Supported operation system
Windows 10(64bit)
Supported operation system
Windows 11(64bit)
Device driver
vcredist_x86_2010
Device driver
vcredist_x86_2005
Device driver
LVRTE2013std
Main Features
Product Highlights
Test Mode
- Operator
- Complete the test with one click and disble all the functions buttons except start test button to avoid misclick.
- Technical Engineer
- Given authorization to edit sequences and access to external sequences, as well as debugging devices with reference metrics.
- R&D Engineer
- Recording including logs, WAV, screenshots etc, can be stored automatically.
Key Features
- Various sweep measurements supported including valid value, fast stepped sweep, highly precise stepped sweep, white and pink noise.
- Achieving shorter times with precision for measuring frequency response, sensitivity(SPL), distortion, impedance, F0, phase, balance, polarityetc with a single command.
- Comprehensive functions for sequence edition to meet laboratory and production needs, including virtual signal generator and multimeter as well as auto-saving.
- Self-developed software can be customized to access to MES system.

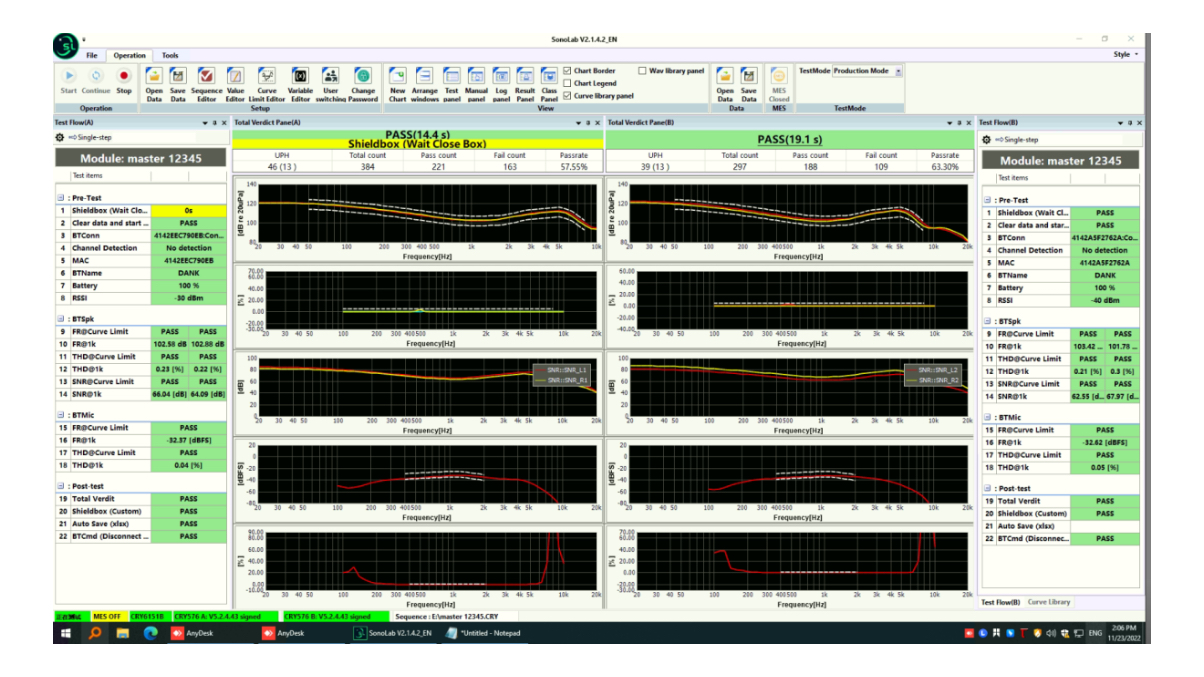

Learn More About SonoLab
- Headphone & Headset Measurement: Quadruplex Bluetooth Headphone Audio Test, Duplex Bluetooth Headphone Audio Test, USB Type-C Headphone Audio Test, Duplex Bluetooth Headphone RF Test, ANC Test and One-stop Solution for Bluetooth Headphone.
- Microphone Measurement: Moving-coil microphone, MEMS microphone(Digital/Analog), Electret microphone.
- Smart Devices Measurement: IP Telephone Audio, Internet Protocol Camera Audio, Laptop Audio, Smart Speaker Audio, Smartphone/Tablet Audio.
- Automotive Noise&Vibration Measurement: Noise and vibration of automotive components.
- Loudspeaker Measurement: Bluetooth Loudspeaker, Tweeter/Woofer speaker, MEMS speaker and Receiver.
- Other Measurement: Hearing aids, Ultrasonic sensor, buzzer electronics, Telephone Handle.
- Custom Measurement: Smart Controller Audio.
