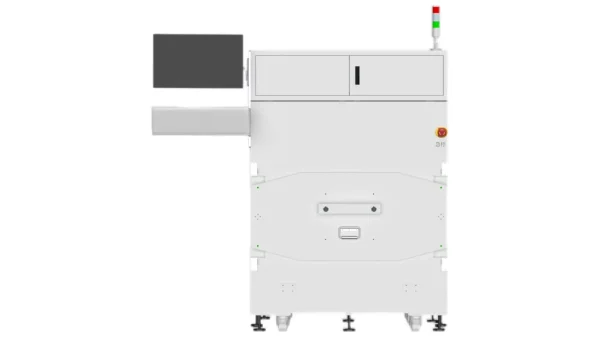

CRY7865 Pneumatic Acoustic Test Chamber
The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.
When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.
Technical Specifications
Color
White
Weight
About 830Kg
Outer dimension
1530(L)*1280(W)*1750(H)mm
Box dimension
1040(L)*1090(W)*1150(H)mm
Inner dimension
600(L)*680(W)*740(H)mm
Operating voltage
AC 100-220V,50/60Hz
Rated power
15W
Pneumatic pressure
>5kg/cm2
RF shielding performance
100MHz-6GHz 70dB(Without I/O interface)
Sound isolation performance
50Hz-300Hz isolation>20dB, 300Hz-1000Hz isolation>40dB, Above 1000Hz isolation>60dB(1/3 octave)
Noise floor
25dBA, exterior noise≤80dBA (No shock or vibration)
Main Features
- Drawer type
- Pneumatic
Product Highlights
Features
Ultra-quiet test environment with sound insulation of more than 60dB above 1000Hz.
Drawer-style chamber for conveniently loading and unloading materials and jumpstarting automation.
Three dimensions for working more than 700mm.
Superior performance in sound insulation and frequencies.
EMI filters are included in ports and power signals.
