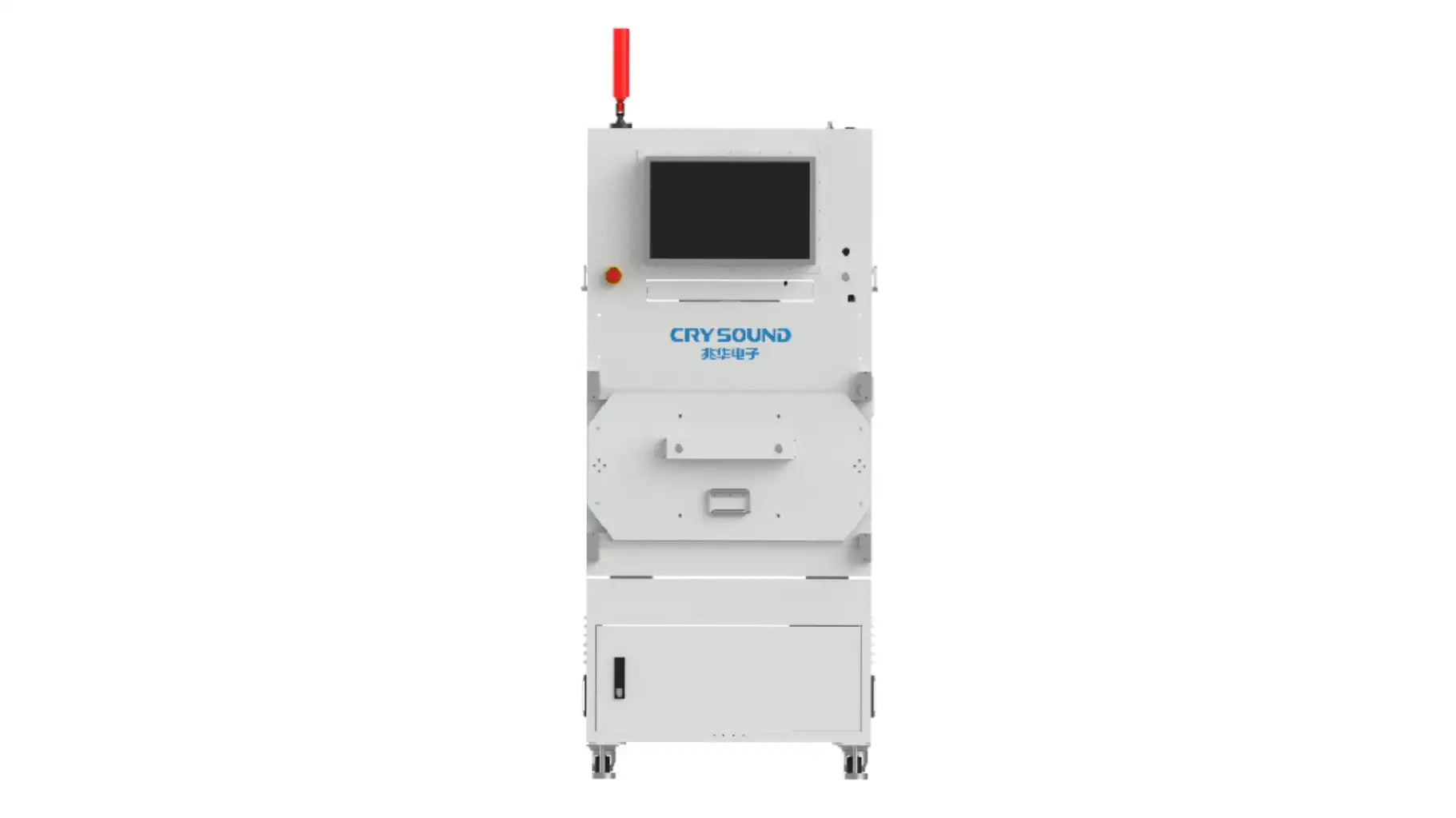

CRY725D Pneumatic Acoustic Test Chamber
The CRY725D is a pneumatic, drawer-style acoustic test chamber that offers superior soundproofing at low frequencies compared to the CRY725 model. This makes it particularly effective for background noise measurement.
When combined with the CRY6151B and CRY algorithm, the CRY725D provides an enhanced solution for minimizing noise floor interference, making it an excellent choice for precision testing on production lines.
Technical Specifications
Color
Beige
Weight
About 830kg
Outer dimension
860(L)*860(W)*1833(H)mm
Inner dimension
450(L)*600(W)*515(H)mm
Operating voltage
AC 100-240V, 50/60Hz
Rated power
15W
Pneumatic pressure
>5kg/cm2
RF shielding performance
0.8~6GHz>70dB (Without I/O interface)
Sound isolation performance
100Hz～160Hz>32dB, 200Hz～250Hz>35dB, 315Hz～400 Hz>40dB, 500Hz～800Hz>45dB, 1000Hz～4000Hz>53dB, 5000Hz～8000Hz>60dB, 10000Hz～20000Hz>65dB (1/3 octave)
Noise floor
20dBA, exterior noise≤80dBA (No shock or vibration)
Main Features
- High RF shielding frequency up to 70dB
- Complete communication interface for different test scenarios
- Drawer type
- Low-noise
Product Highlights
Features
User-friendly drawer type test box for standing operation.
Good sound insulation and absorption.
Meets most of the wearable products audio test requirements.
Grating installed for safety protection.
