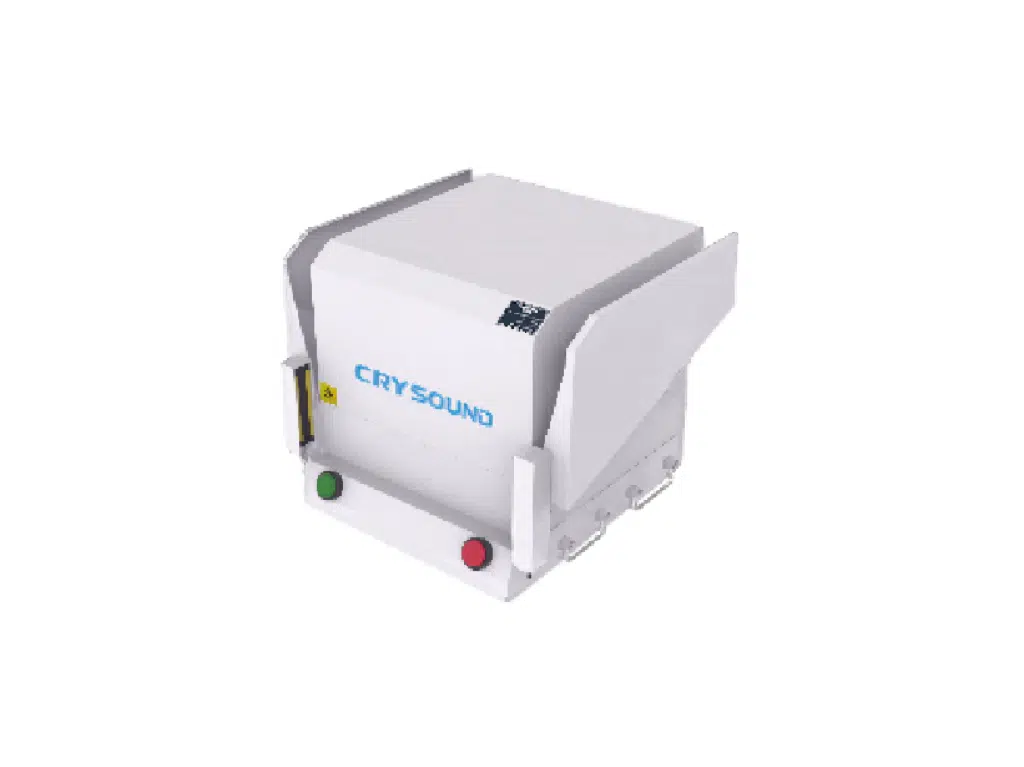

CRY723D Pneumatic Acoustic Test Chamber
The CRY723D Pneumatic Acoustic Test Chamber is primarily used to test the power, sensitivity, and other electrical performance parameters of wireless electronic and communication products, such as wireless servers and walkie-talkies. This test chamber can be utilized with comprehensive testers, vector network analyzers, signal sources, and channel emulators to conduct essential testing. It is capable of connecting to wireless devices via Bluetooth, WiFi, GSM, WCDMA, RFID, or GPS remote controllers.
Technical Specifications
Color
White
Weight
About 135kg
Box dimension
600(L)*550(W)*500(H)mm
Operating dimension
400(L)*350(W)*300(H)mm
Operating voltage
AC 220V, 50/60Hz
Rated power
15W
Pneumatic pressure
>5kg/cm2
RF shielding performance
0.8~4GHz>70dB, 4～6GHz>60dB (Without I/O interface)
Sound isolation performance
100~300Hz>38dB, Above 300Hz>48dB (1/3 octave)
Noise floor
30dBA, exterior noise≤80dBA (No shock or vibration)
Main Features
- Pneumatic
- Excellent performance
- Low noise
Product Highlights
Features
Shielded frequency up to 6GHZ.
EMI filters on all data ports and power signals.
Safety light curtain for pneumatic door.
High sound isolation.
