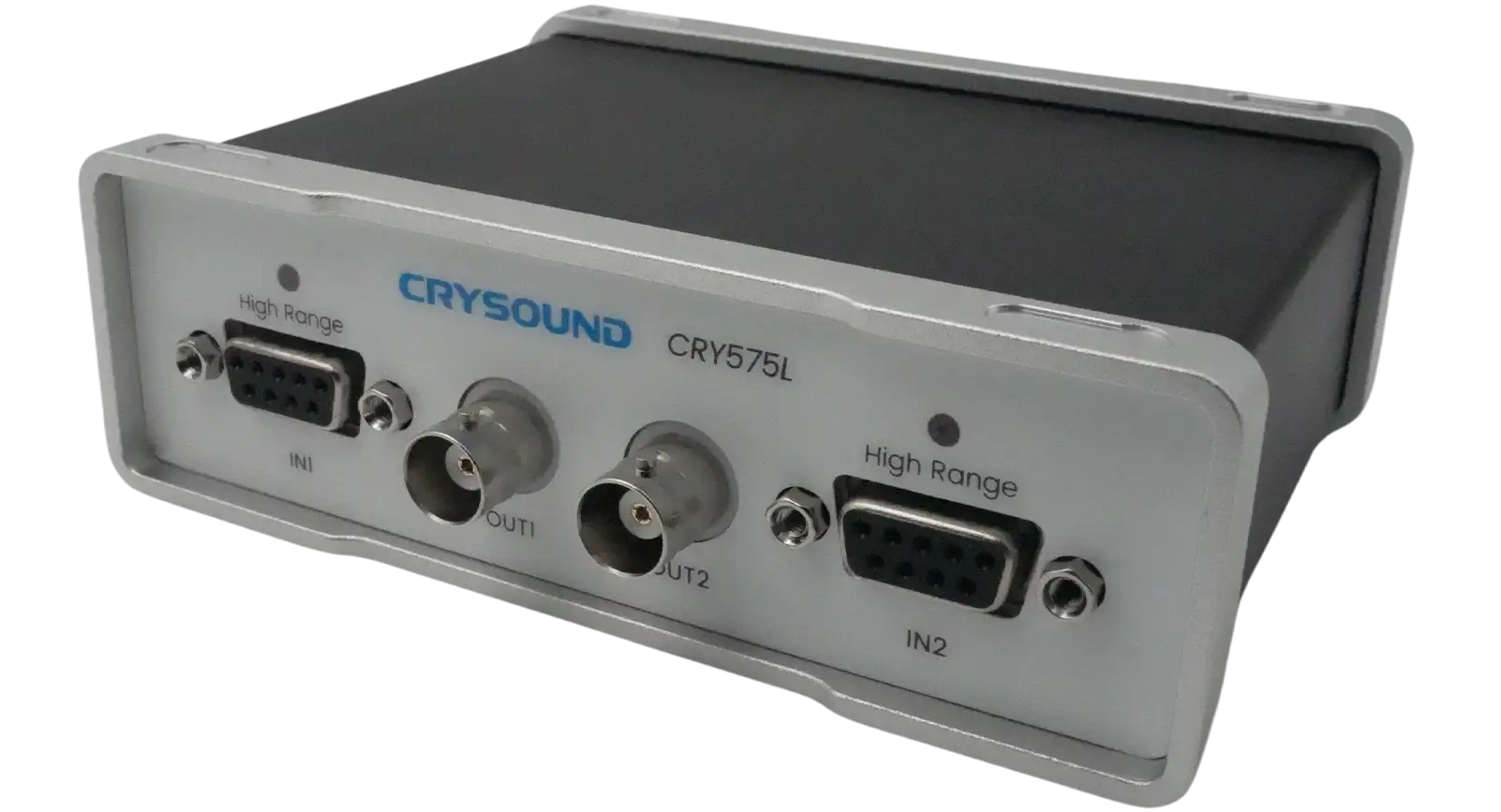

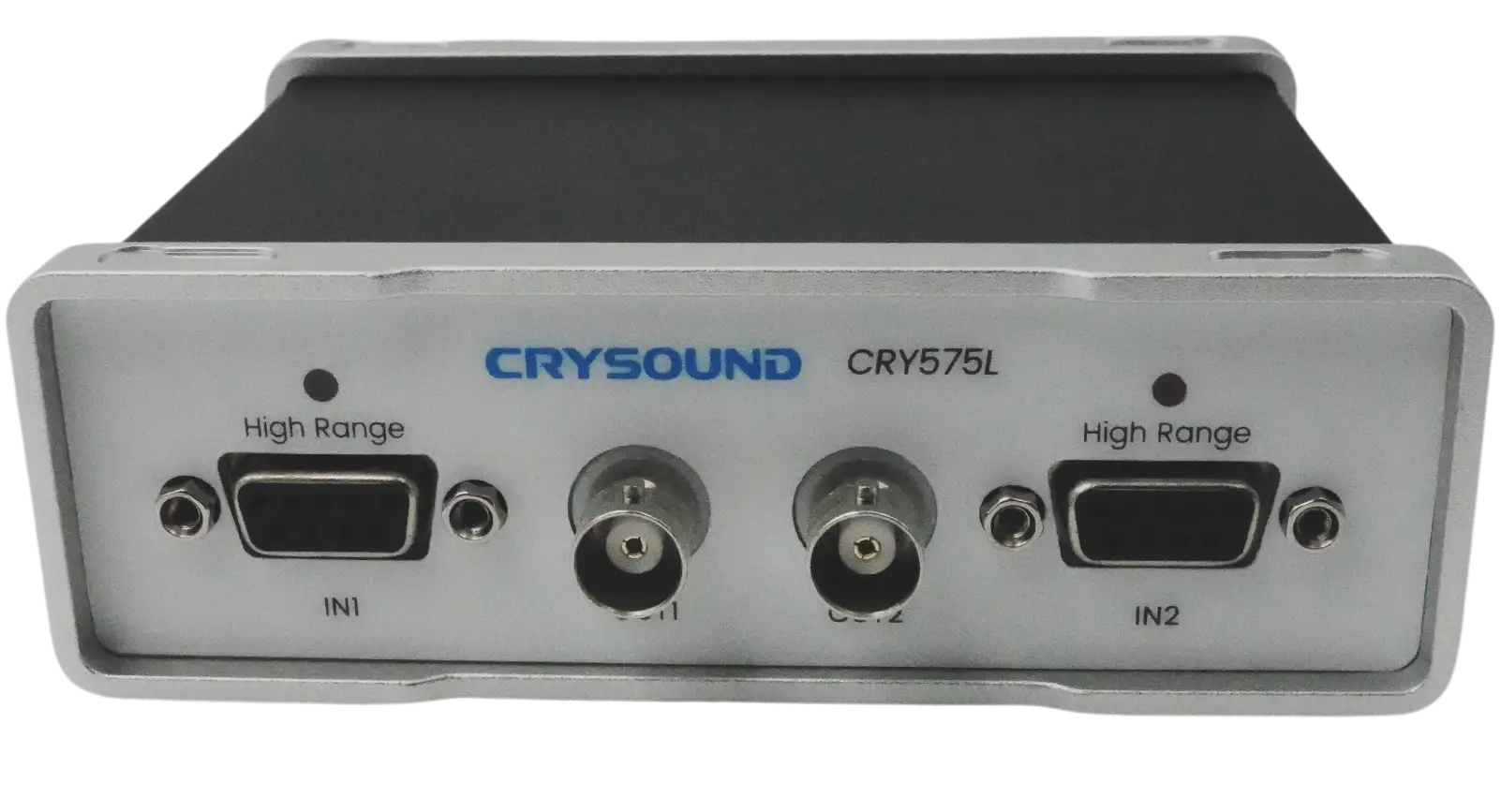

CRY575L Microphone Power Supply, Low-Noise
The CRY575L microphone power supply is a two-channel unit designed to deliver reliable power for microphones. Each channel provides a necessary constant voltage source for single-ended preamplifiers. It has high input impedance, low output resistance, extremely low background noise and a wide frequency response range.
The CRY575L offers gain options of 0dB(×1) and +20dB(×10) for output signals. Its BNC interface ensures straightforward and user-friendly connectivity.
Technical Specifications
Frequency Response
10Hz to 60kHz (±0.5 dB)
Input impedance
1MΩ
Output impedance
100Ω
Background Noice
-114dBV
Typical Operating Voltage
24V
Maximum output voltage
±6V
Temperature
-30℃ to ＋70℃(-22°F to 158 °F )
Output interface
BNC
Input Interfac
DB9
Power supply interface
Type-C
Size(mm)
69(L)×154(W)×120(H)
Main Features
- Two-channel microphone power supply
- Extensive compatibility
- Durable, reliable, and high-quality
- High input impedance, low output impedance
