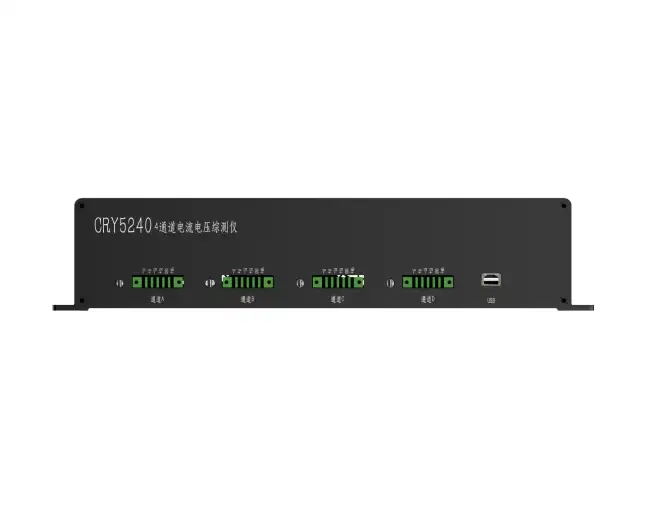

CRY5240 Programmable Battery Simulator
CRY5240 is a programmable battery simulator with comprehensive functions, high stability and accuracy for production line.
It can meet demands of battery simulators in multi-channel, multi-parameter and complex test environments, stand alone up to 4 channels.
Technical Specifications
AC supply
AC90-240V/50-60Hz
Input voltage:P+/P-
-0.3～+26V
Input voltage of one channel:Vin1
9.9V
Input current
3.5A
Simulation of supply current
2A
Simulation of charging current
2A
Storage temperature
-40～125℃
Wroking temperature
5～45℃
ESD rated value-Human Body Model(HBM)
2500V
ESD rated value-CharginZg Device Model(CDM)
1000V
ESD rated value-Machine Model(MM)
150V
Main Features
- Isolated channels
- Wide voltage range
- Multi-functional mode
- Programmable parameters
Product Highlights
Features
USB communication circuit isolated from power supply circuit.
Circuit isolation between 4 channels without electrical connection.
Range of power supply output voltage: 0.810V～5.175V.
Power supply current from 5nA to 1.5A.
Support input external voltage and range can switch automatically from 5nA to 1.5A.
Four current measurement levels: nA，uA，uA2，mA.
Range mode：Auto-switching and fixed-range.
Be able to set voltage, current threshold which saved independently.
One channel provide independent setting of related parameters.
Able to set parameters and read result through PC serial ports, even upload data to MES.
Battery simulators have multiple functions and features supporting Charge, Battery, Load.
Supports three modes of power supply: external power supply, programmable power supply, battery simulator powered.
Automatic disconnection protection and alarm over range.
AC 220，Integrated internal industrial switching power supply.
