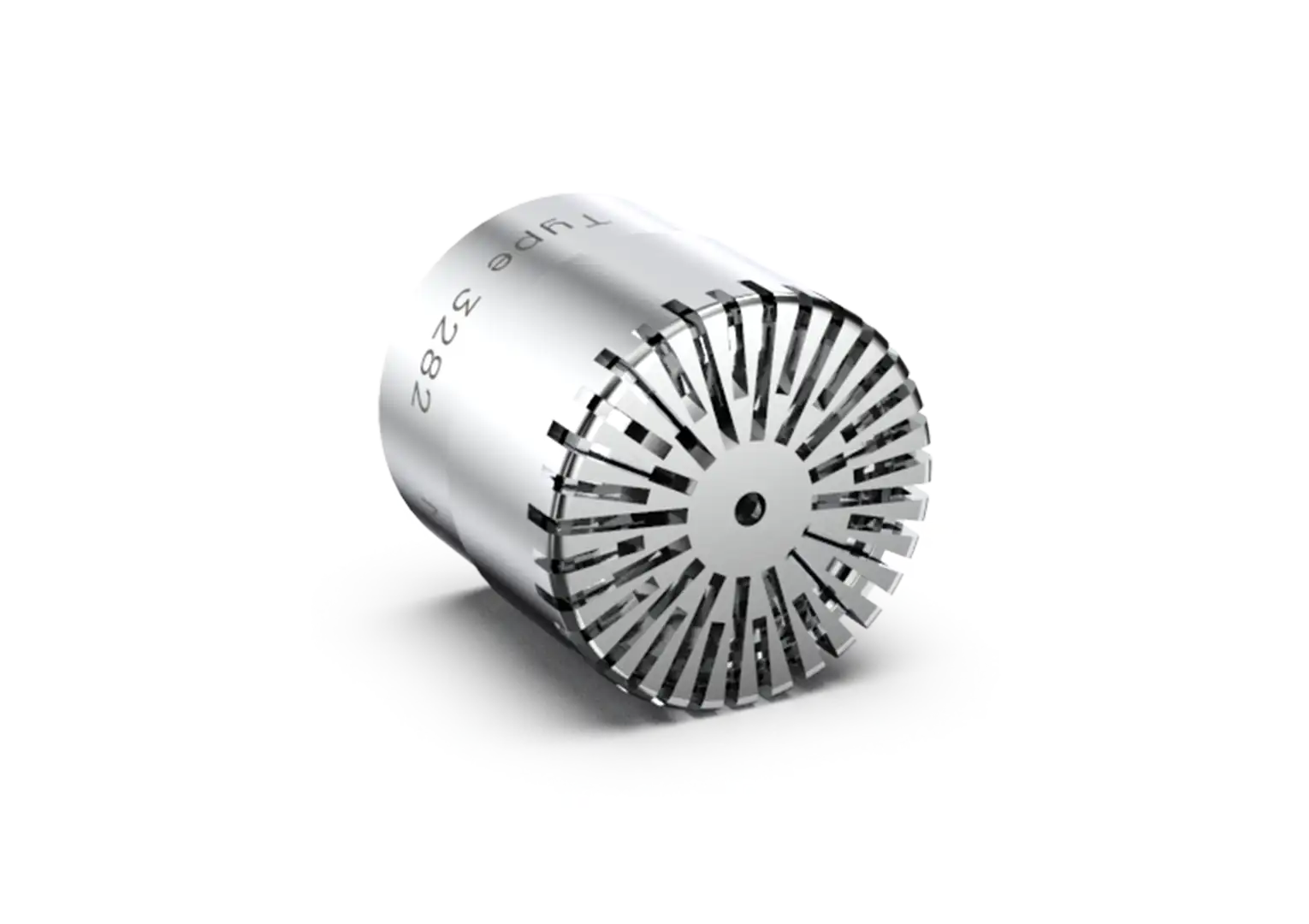

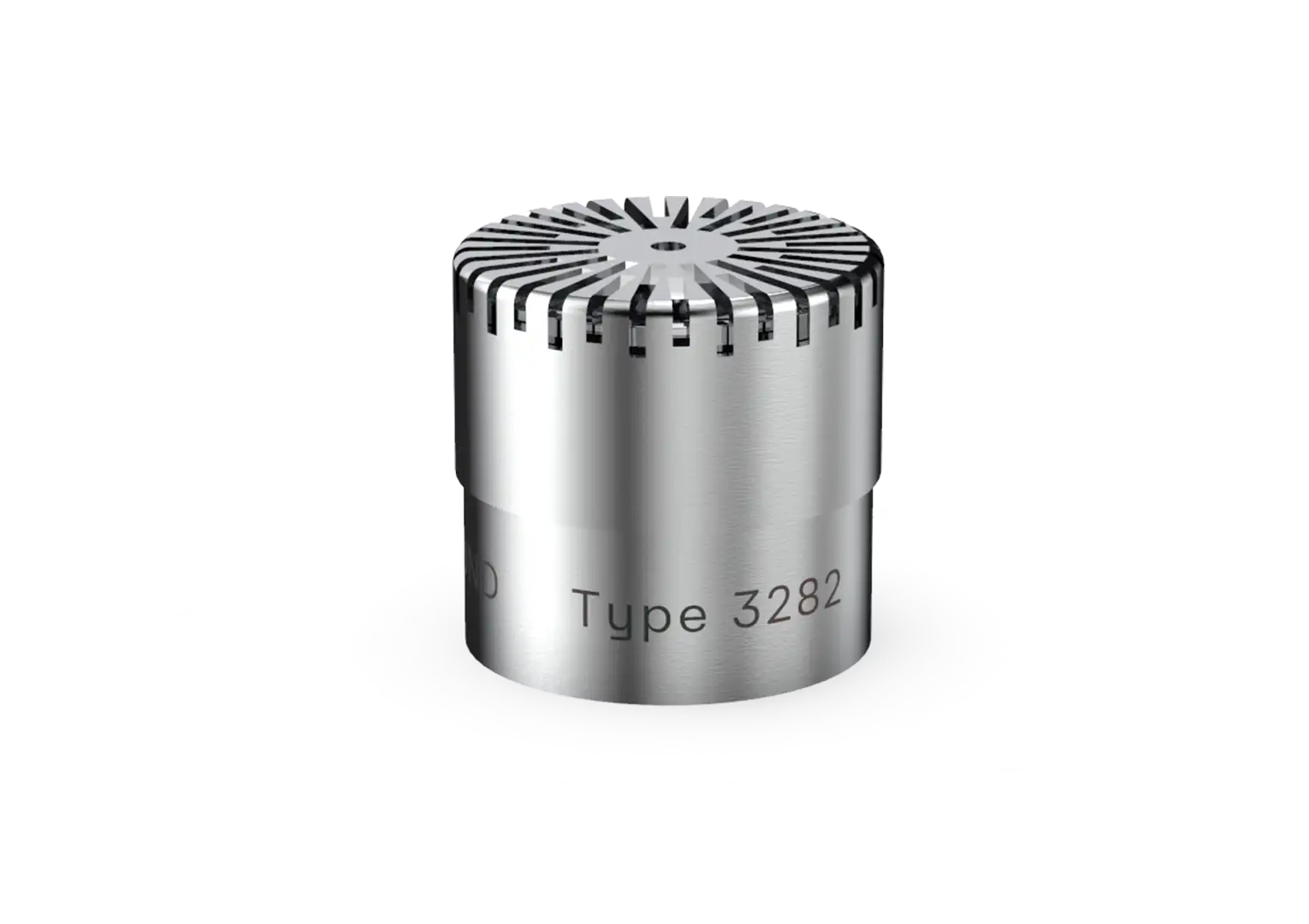

CRY3282 Pressure-field Microphone, 1/2″, External-polarized, 12.5mV/Pa
CRY3282 is a 1/2-inch externally polarized measurement microphone designed for pressure field measurements. It is specifically designed to be used in conjunction with a coupler chamber for related electroacoustic testing.
The unique design of CRY3282 enables high-quality and wide-frequency response testing of in-ear monitors and earplugs. Its frequency range extends up to 20kHz, surpassing the testing capabilities of most simulated ears.
Technical Specifications
Field Type
Pressure-field
Noominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
200V
Dynamic Range(re.20uPa)
23dBA to 160dB
Operating Temperature
-30 to +80℃ (-22 to +176℉)
Temperature Stability
0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2P
Height with Grid
12.7mm (0.500")
Diameter with Grid
13.2mm (0.52")
Main Features
- Full-range pressure-field microphone
- Extensive compatibility
- Durable, reliable, and high-quality
Product Highlights
CRY3282 Measurement Microphone Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
