UAV Solution for Partial Discharge Inspection

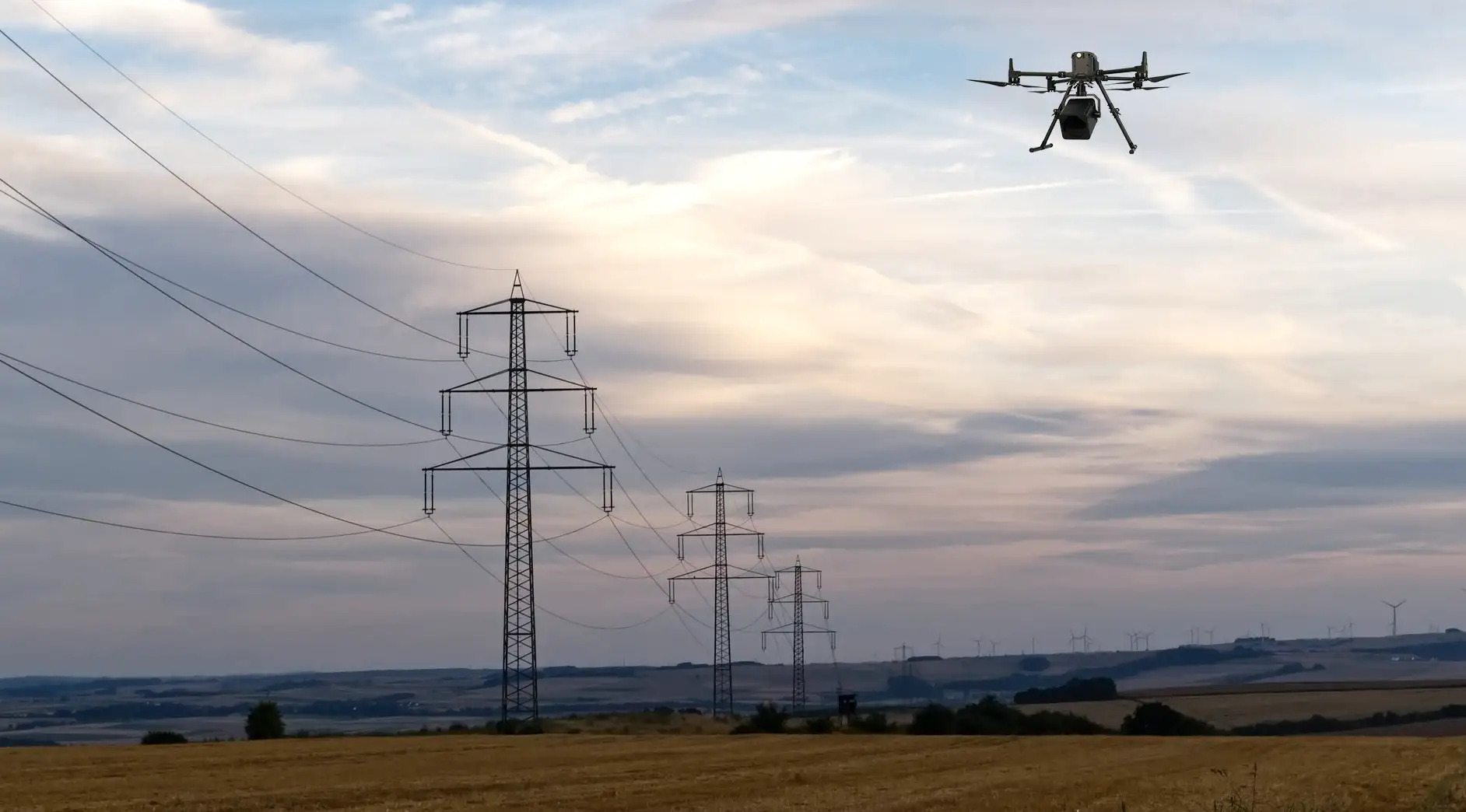

Detect Partial Discharge (PD) from Miles Away

The acoustic imaging camera installed on the drone can achieve remote detection of partial discharge defects, with an effective operating radius covering 7 kilometers. This innovative non-contact detection technology ensures accurate judgment of the operating status of power equipment and can enter difficult-to-reach work areas to improve the safety and efficiency of operators.

Wide coverage

The operating range of the equipment can cover a radius of 7 kilometers

Guarantee the safety of workers

The homework personnel do not need to be involved in dangerous terrain

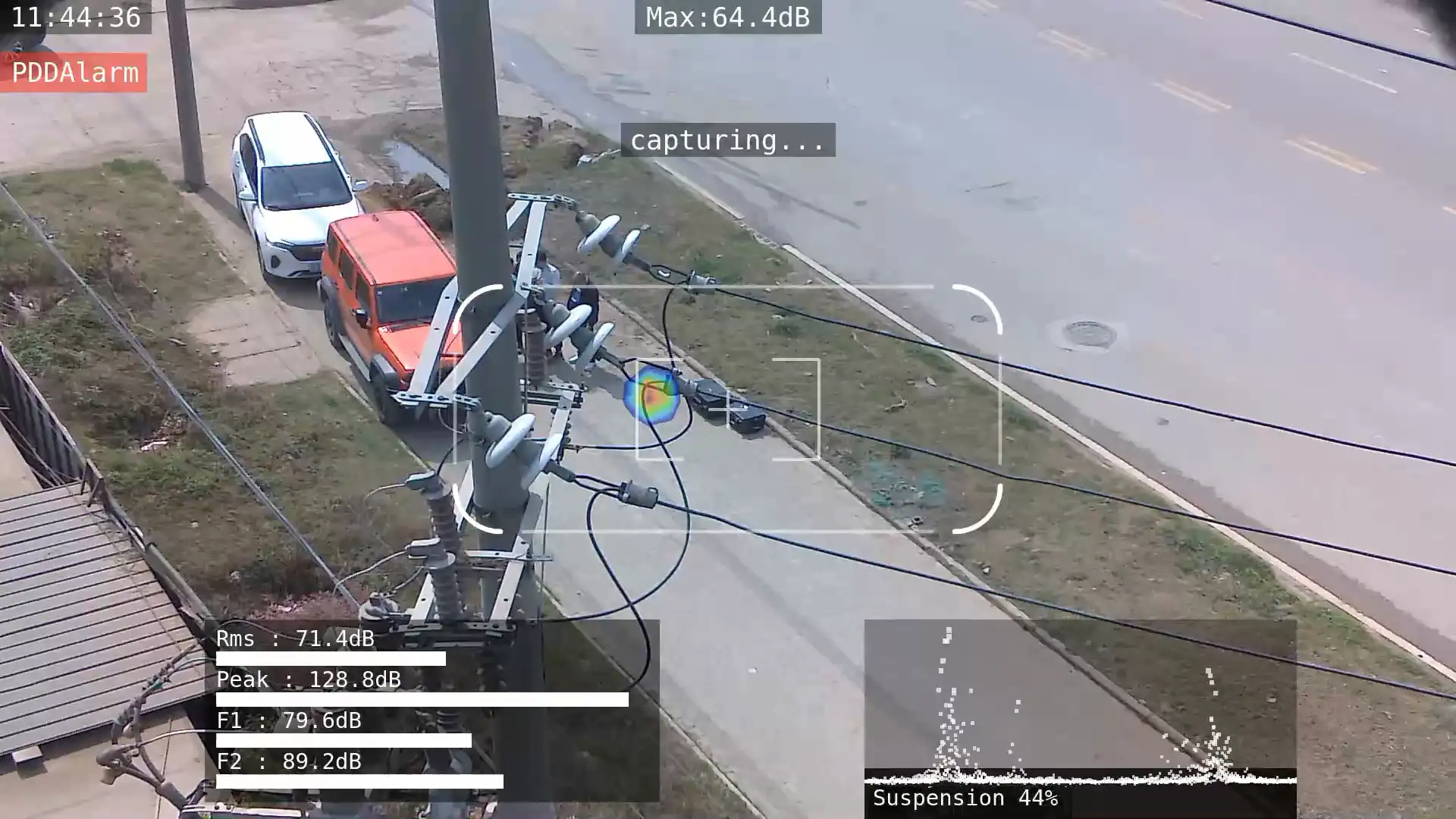

Identify the Type of Partial Discharge

The acoustic imaging camera installed on the drone can recognize and identify the type of partial discharge, providing accurate equipment defect diagnosis. By using AI based classification algorithms and PRPD maps, three types of discharges can be distinguished: surface discharge, suspended discharge, and corona discharge.

AI based classification algorithm

Distinguish the characteristics of three types of discharge

PRPD graph technology makes fault diagnosis more intuitive

Distinguishing between faults and noise based on PRPD graph of different partial discharge types

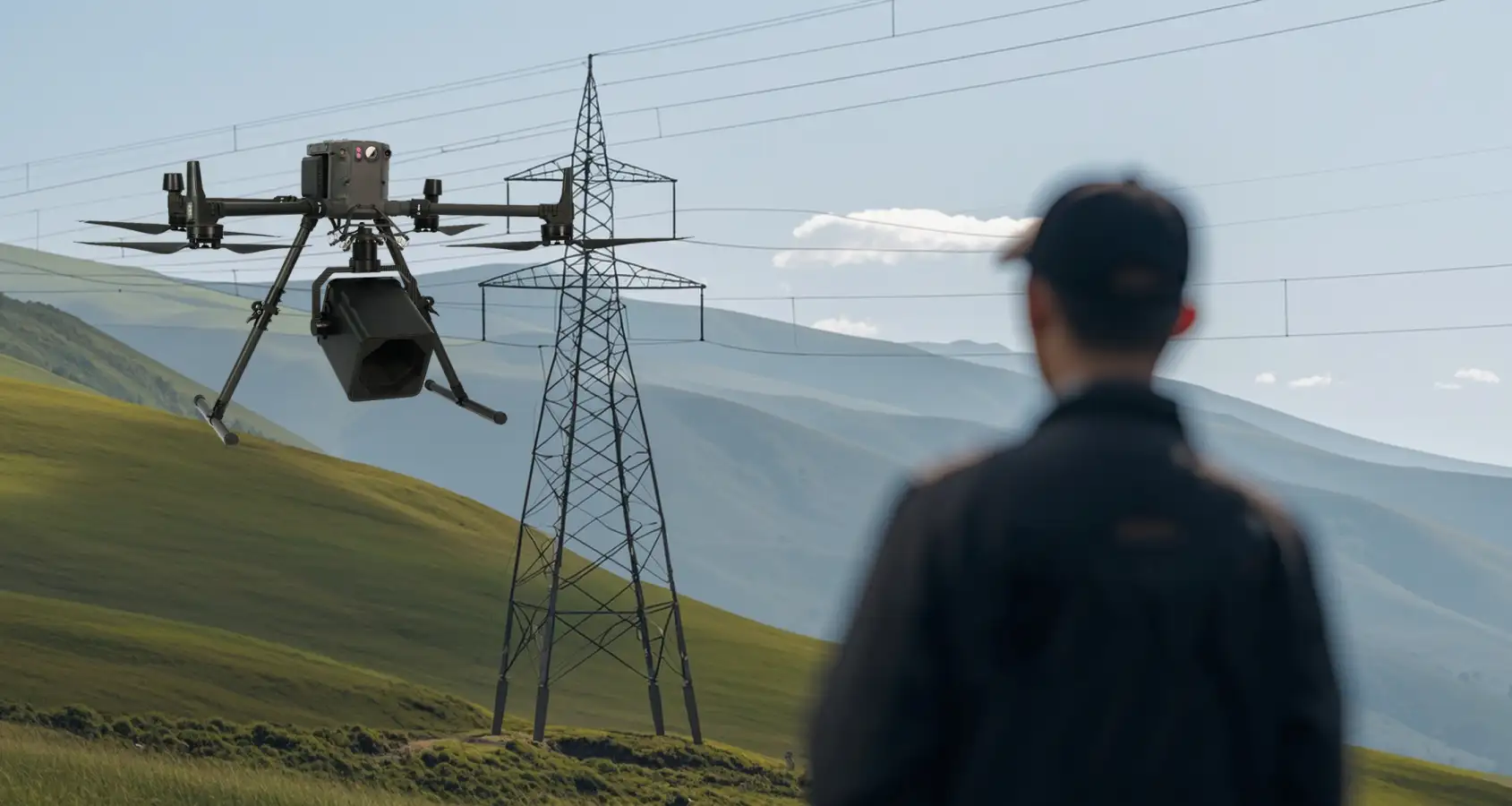

Easy to Reach Remote Areas

The stable operation of the power system is crucial for national energy security, as power lines may be located in hazardous terrain such as mountains, rivers, and lakes, making manual inspections difficult and challenging. With the help of acoustic equipment installed by drones, users can efficiently detect power facilities in hazardous areas.

Fearless of terrain challenges

Relying on drones, the device can function in dangerous terrain

Efficient detection

With the help of drones, equipment can improve the efficience of inspections

Less Cost Compared to UV Cameras & Helicopters

Compared to UV imaging cameras, drone acoustic imaging cameras provide an economical and efficient solution. It is high-resolution imaging technology and provides accurate defect diagnosis at an extremely low cost, offering users a more cost-effective option.

More intuitive imaging

Compared to ultraviolet imaging, acoustic imaging can pinpoint faults more accurately.

Acoustic solutions are more cost-effective

Acoustic imaging technology equipment not only performs effectovely, but also is more cost-effective.

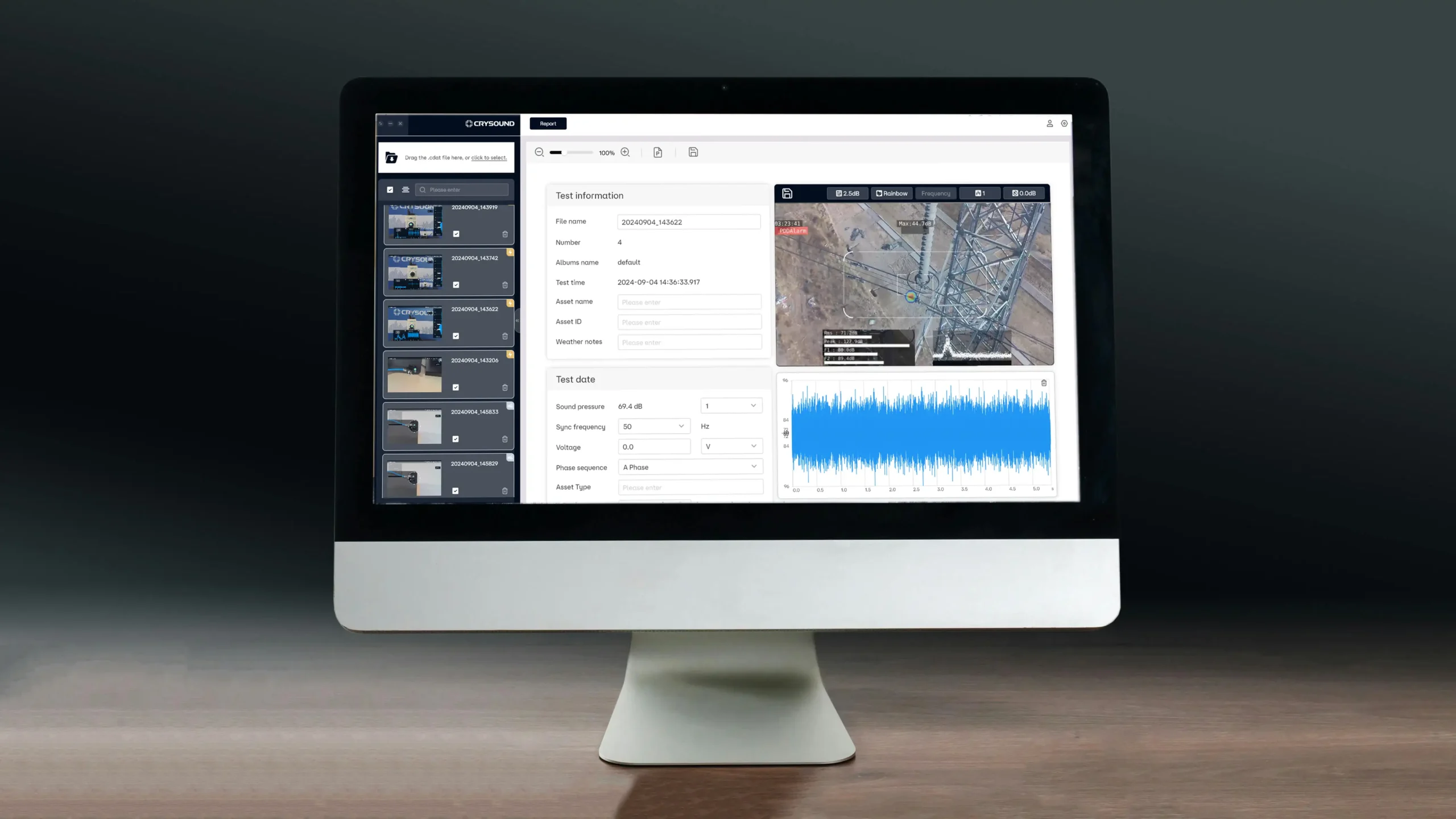

Create & Share Reports

The drone acoustic imaging camera optimizes data collection and reporting, enabling users to quickly generate detailed reports and efficiently convey key information. This simplified process can accelerate the decision-making process, promote better collaborative work, and significantly improve work efficiency and safety.

Key information

The report contains key information about defects, which is more valuable

Report sharing

Simplify workflow and improve collaborative efficiency
