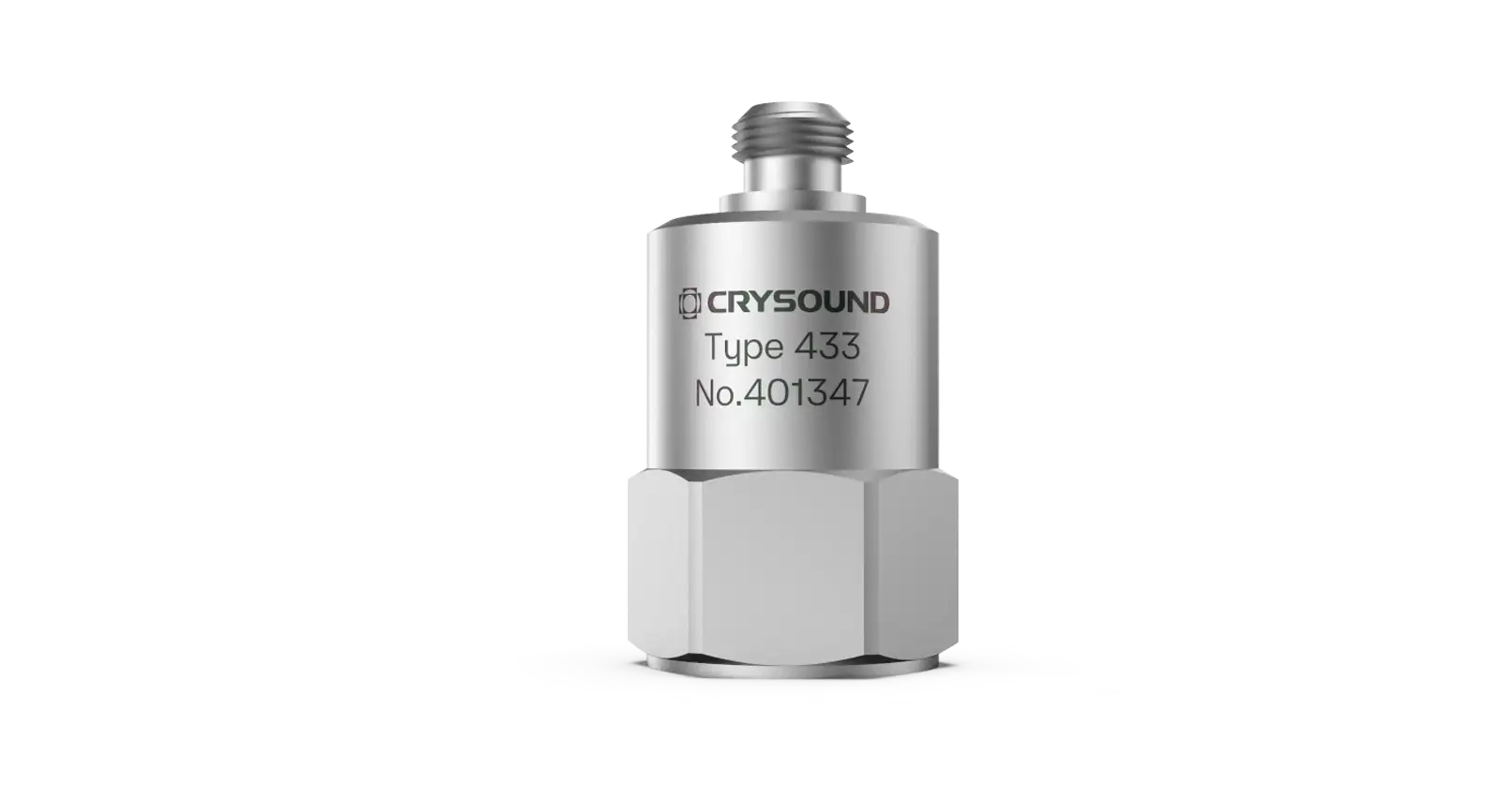

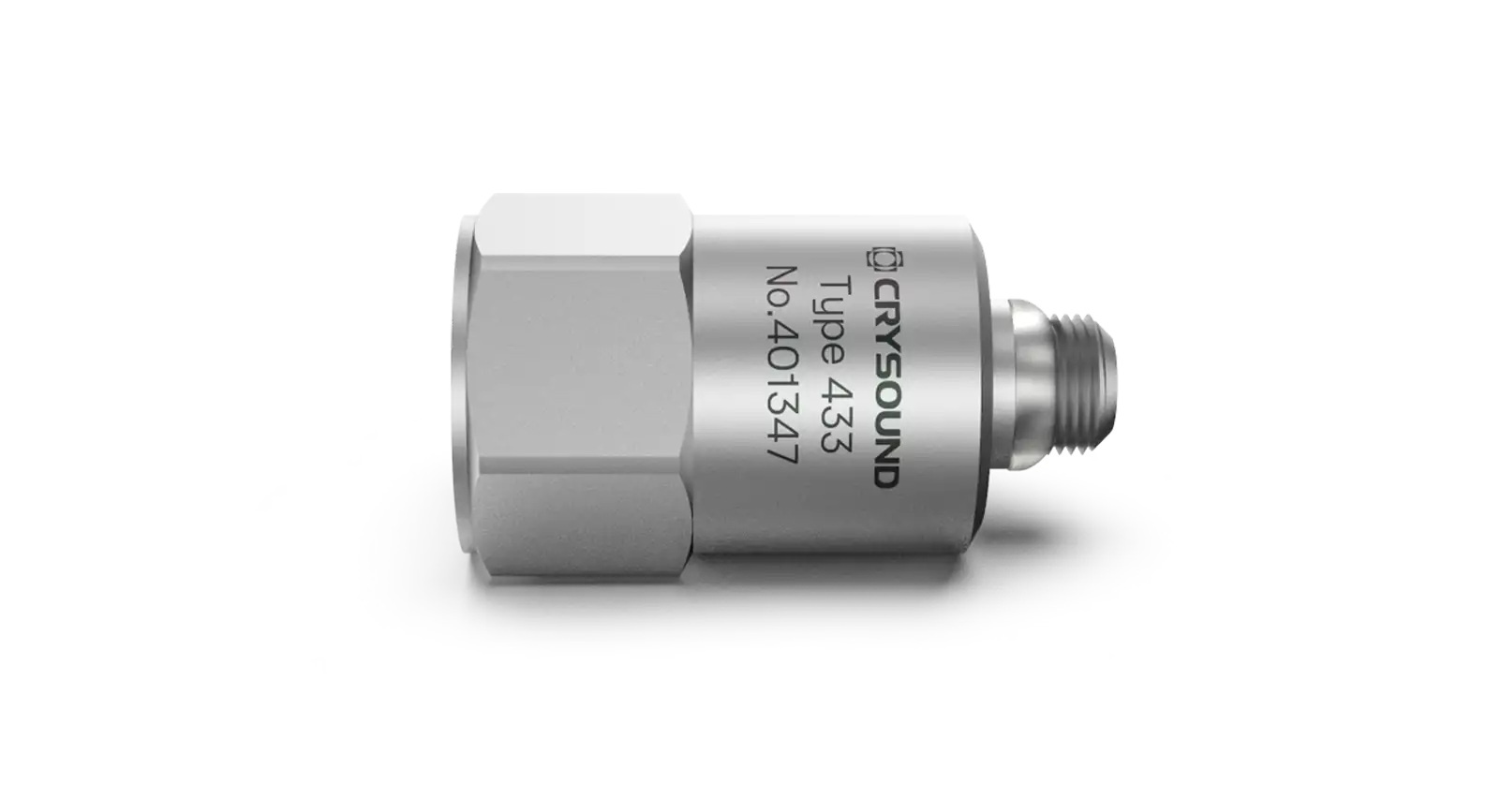

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz
The CRY433 is a single-axis acceleration sensor designed for precision and versatility. It features a 10-32 UNF output mode on the top, allowing it to be securely mounted to objects using a 10-32 UNF bolt. This sensor is ideal for detecting small movements in laboratory and scientific research, as well as for real-time vibration monitoring of industrial equipment.
The CRY433 can be fitted with armored shielded cables, enabling accurate measurement of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference
Technical Specifications
Measuring Range (peak)
±50g pk
Measuring Range (peak)
100mV/g(160Hz)
Frequency Response
0.5 Hz to 8 kHz(±1 dB)
Transverse Sensitivity
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
-9V - 12V
Maximum Shock Level
±3000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Top M5
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
13 g
Main Features
- Top 10-32UNF (M5, Microdot) connection
- M5 bolt mounting
- Built-in IEPE preamplifier
