Measure Sound Better

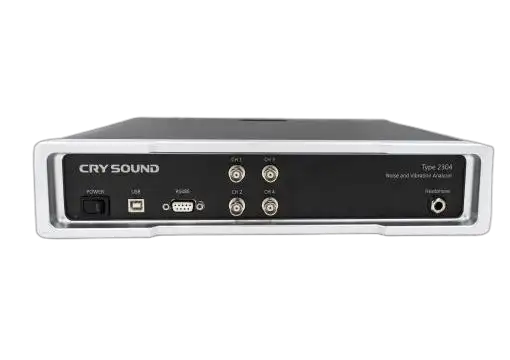

CRY2304 Noise and vibration analyzer is a new type of test instrument for noise and vibration analysis launched by CRYSOUND. The host uses USB 2.0 transmission protocol to communicate with the host computer, and supports synchronous input of noise and vibration signals with 4 channels. The analysis frequency range is 10 Hz – 80 kHz, and its noise floor is as low as -110 dBV, which is sufficient for high precision acquisition and high-quality analysis of noise and vibration in most cases.

CRY2304 Noise and vibration analysis system

The analysis frequency range is 10 Hz - 80 kHz, and its noise floor is as low as -110 dBV, which is sufficient for high precision acquisition and high-quality analysis of noise and vibration in most cases.

Product Highlights

Comprehensive interface and functionality

The CRY2304 is a high-performance data acquisition and signal analysis system. It integrates multiple analog input channels with built-in ICP power supply for simultaneous noise and vibration measurement.

The device supports RS-485 communication and Modbus RTU protocol, enabling remote instrument control, data retrieval, and automated measurement processes.

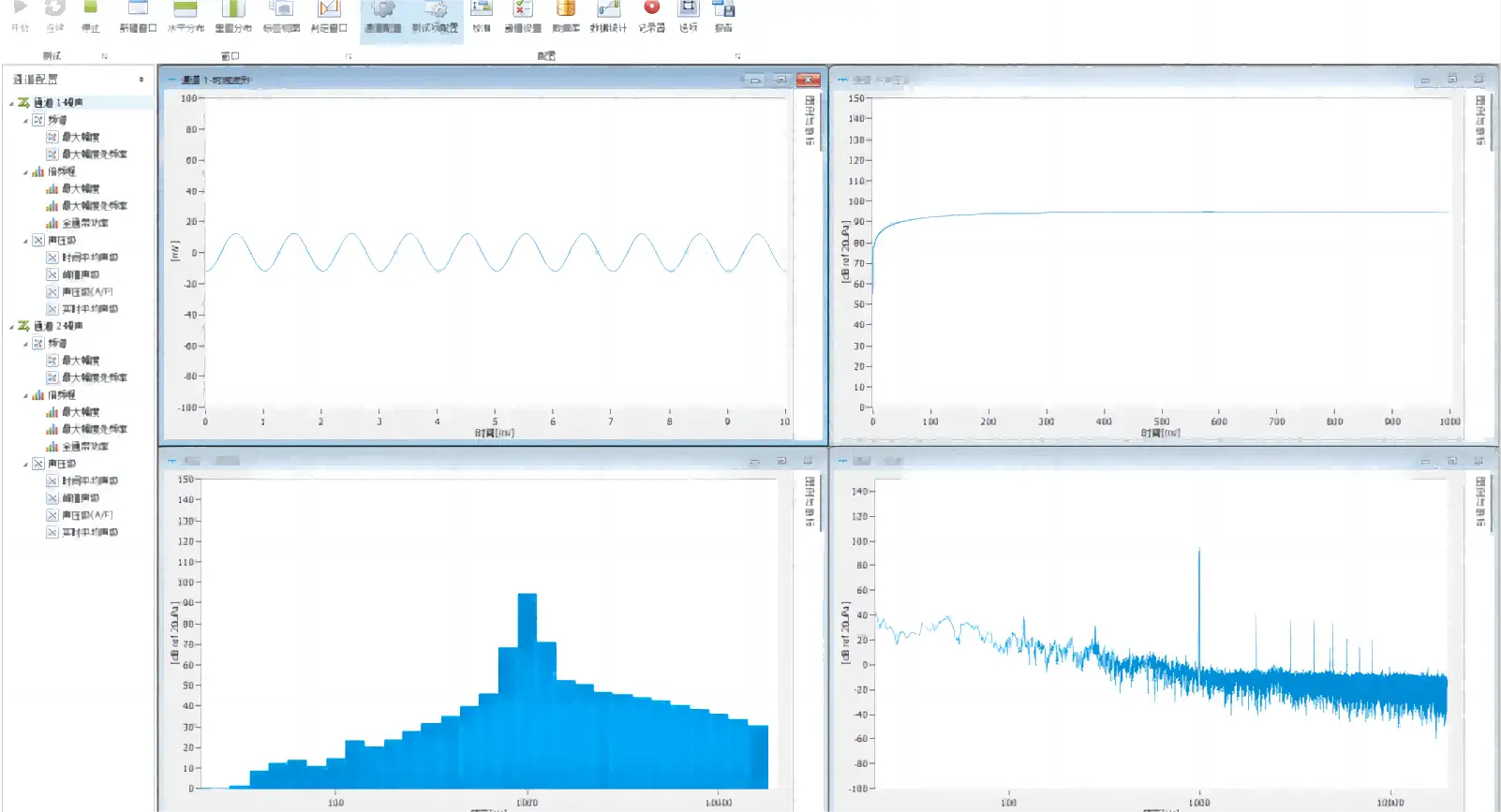

Bundled CRY2300 software supports time-domain, octave, and FFT analysis on Windows 7/10, meeting diverse data processing and analysis needs.

Sleek interface.

user-friendly operation.

Simultaneous support for noise and vibration testing.

Technical Specifications

Number of acquisition channels

4-channel input

ADC sampling resolution

24-bit

ADC sampling frequency

44.1kHz~192kHz

Test frequency range

10Hz~80kHz

ICP /lEPE power supply

4mA(24VDC)

Input impedance

10kΩ

Frequency Response

<±0.1dB(20Hz~20kHz)

Gain

-20dB~30dB

Noise floor

-100dBV(Bandwidth:20kHz,A-weighted)

Total Harmonic Distortion

0.001%(1V,1000Hz)

Equipment power supply

50Hz,220V+10%

Total Harmonic Distortion

0.001%(1V,1000Hz)

Operating temperature range

0~+40℃

Humidity range

≤80% RH

Weight

3500g

Size

L*W*H=284mm*332mm*70mm

Main Features
