PD Detection in Common Scenarios
Identify PD at a Glance

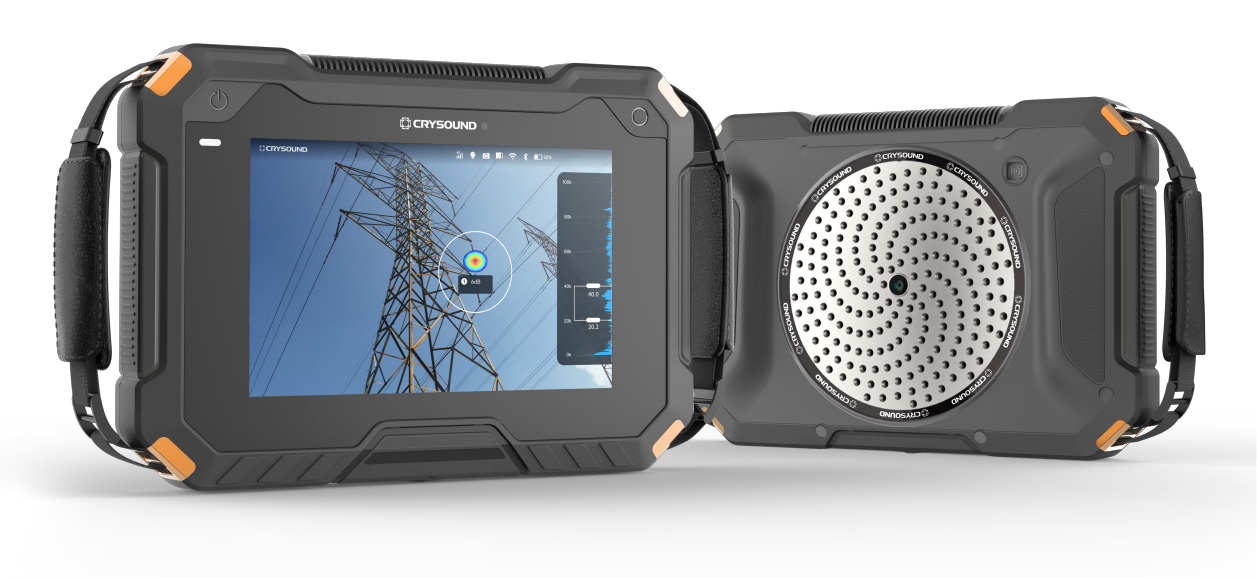

The Acoustic Imaging Camera converts the ultrasound emitted by a partial discharge into an acoustic field localization and superimposes it on the visible light picture captured in real time. With its ability to cover long distances and a wide field of view, the Acoustic Imaging Camera can quickly identify partial discharges
Locate PD in real-time
As the camera scans the area, it instantly visualizes the location of PD on the screen.
Works for all PD types
Inspection teams can quickly and accurately assess the operation of switch cabinet components using acoustic imaging camera, thereby identifying safety hazards in a timely manner.
Safety operation requirements applicable to various scenarios

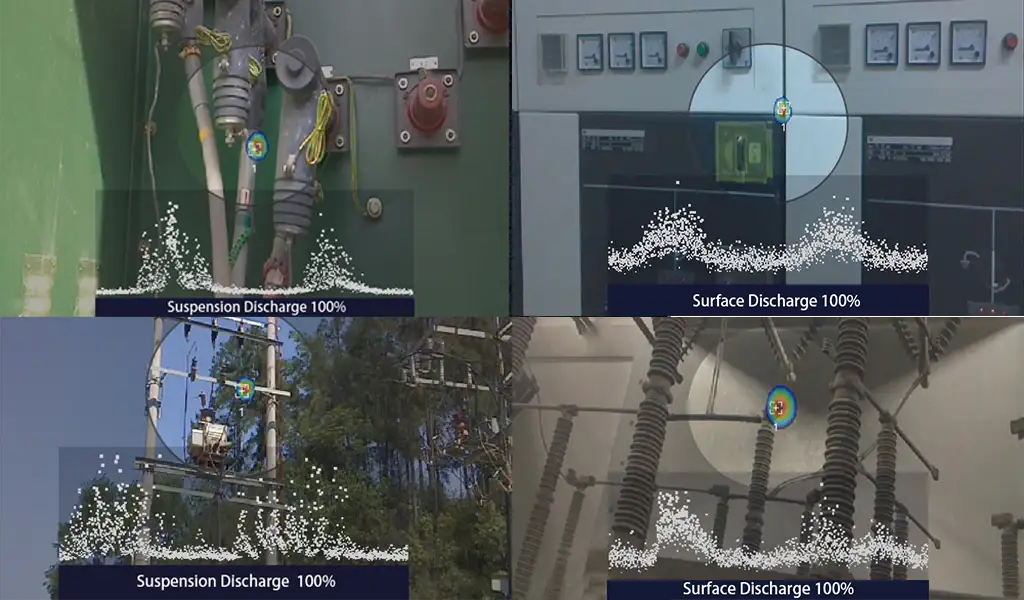

Acoustic imaging technology, as a non-contact detection means, can ensure the life safety of the staff in the working environment with dense high-voltage facilities. In different power system scenarios, the handheld acoustic imager can accurately analyze partial discharge defects in many different types of key equipment.
Electricity Substations
In substation scenarios, the Acoustic Imaging Camera can efficiently monitor the operation of switchgear, cables, high-voltage chamber porcelain vases, switch insulators, and other equipment while also investigating potential safety hazards.
Distribution system
Distribution lines transport energy to any location that requires electricity, resulting in long and complex distribution lines. The Acoustic Imaging Camera provide ultra-long-distance detection capabilities, allowing inspectors to readily detect numerous equipment on towers from a comfortable distance, ensuring the power system's safe operation.
Listening + PRPD mapping to get more accurate localized discharge type determination

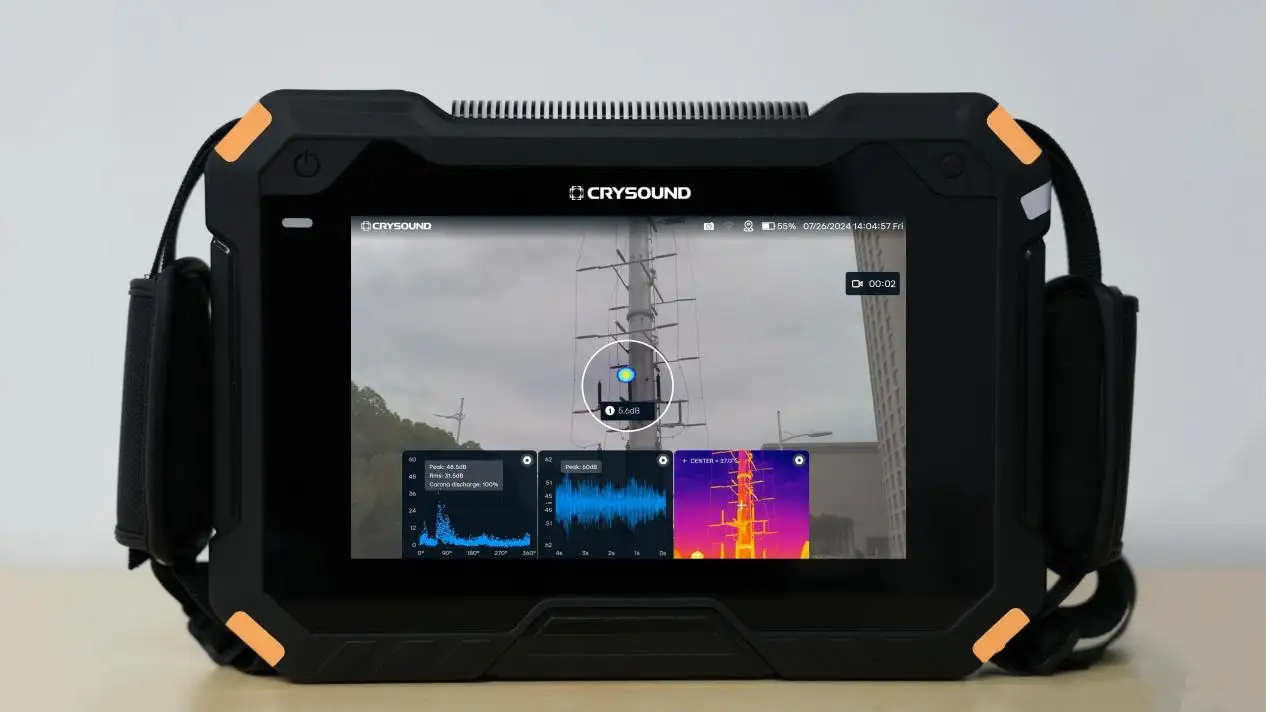

The natural environment has many sound sources in the ultrasonic frequency band, and this situation is especially common in power plants. In order to distinguish the interfering sound sources more effectively, we apply the PRPD map recognition function, which helps us to distinguish the discharge types in the complex environment. Also, our equipment is equipped with an ultrasonic listening function, which can convert audio models in the ultrasonic frequency band into audible sound through a series of processing.
More accurate judgment
The method of listening and mapping can improve the accuracy of the fault identification.
Eliminate the interference of irrelevant sound sources
PRPD mapping can clearly determine the type of sound source.
Minimal Training Requirements
Other PD detection solutions require specialized training to interpret images, distinguish between true PD and false positives, and navigate complex industrial environments. With sophisticated acoustic camera technology, users can quickly learn how to operate the device, saving time and improving work efficiency.
Intuitive display
The screen of the acoustic camera presents vivid images with a touchscreen interface.
No experts needed
The device is user-friendly, requiring little training to operate.
Measuring the extent of PD

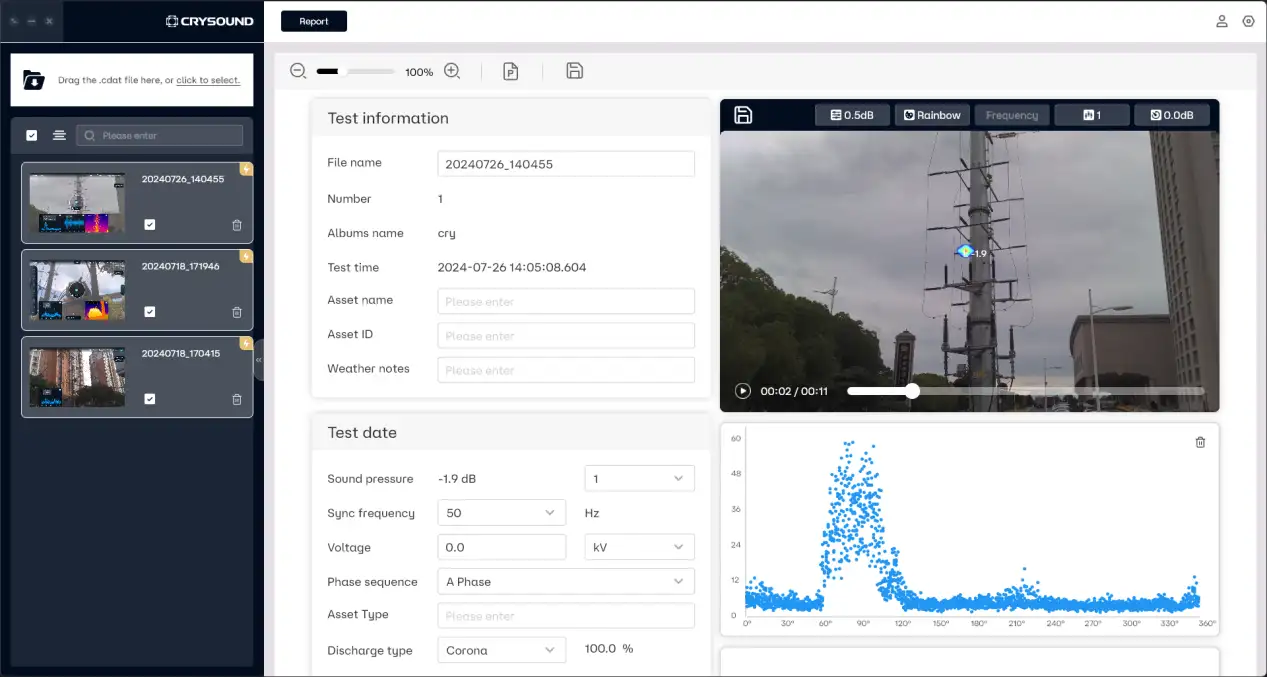

Acoustic imaging cameras use advanced algorithms to quantify partial discharge by analyzing factors such as sound pressure levels, partial discharge types, and other characteristics. By considering variables such as component value, risk of outage, and more, acoustic imaging cameras can help customers make more informed decisions.
See the extent of PD
Based on the measured dB SPL value, the acoustic camera calculates the leak rate and economic loss of each leak
Streamline the reporting process
Using reporting tools, data can be shared between teams to prioritize repairs and optimize resource allocation
System Devices
CRY8124 Advanced Acoustic Imaging Camera
Microphone array
200 channels MEMS microphone
Frequency range
2k - 100k Hz
SPL range
28 - 132 dB
CRY578 Bluetooth LE Audio Interface
Bluetooth Version
v5.4
Profile
A2DP Source/Sink V1.3, AVRCP Target/Controller V1.6, HFP Hands Free/Audio Gateway V1.7, HSP Headset/Audio Gateway V1.2
Codec
SBC, AAC, aptX Series, LHDC, LDAC, LC3, LC3 plus, mSBC, CVSD
CRY8500 Series SonoCam Pi Acoustic Camera
Mic Array
128, up to 208 channels
Beamforming Frequency
200 - 20k Hz (110cm array)
NAH Frequency
20 - 20k Hz (110cm array)
CRY3018 Sound Calibrator
Frequencies
1000 Hz, 250 Hz
Frequency Accuracy
< 0.5 Hz
Sound Pressure Levels (SPL)
94 dB / 114 dB
