Gas Leak Detection in a Negative Pressure Environment
Outdated Methods Lack Accuracy & Efficiency
The gas concentration alarm relies on gas entering the device, which can be problematic in a negative pressure environment. This makes it challenging to detect negative pressure leaks using the soap bubble method. Additionally, infrared detectors can be influenced by temperature variations. As a result, these methods may fail to identify negative pressure leaks and can lead to inefficiencies.
Low efficiency, missed leaks
A large number of vacuum devices results in low efficiency and a high likelihood of missed leaks during manual maintenance.
Traditional methods are ineffective

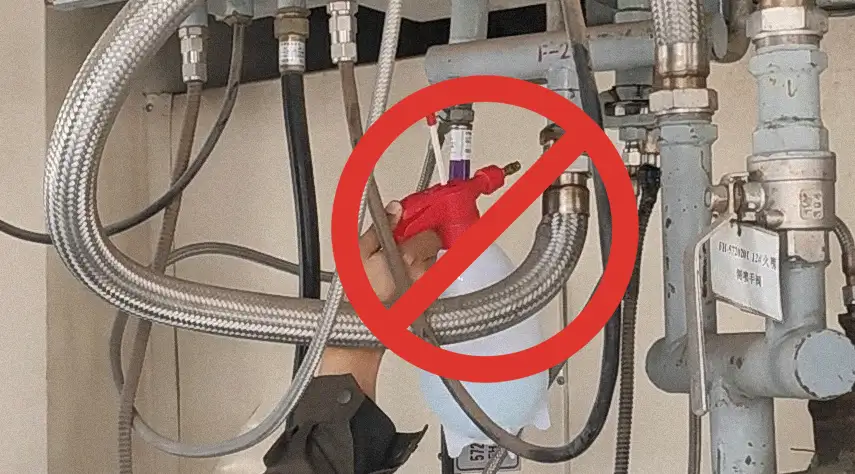

Under negative pressure, the "soapy water method" for detecting vacuum leaks can only be carried out during a facility shutdown.
Difficulty detecting leaks in hazardous areas
During inspections of pipeline flanges at high altitudes and extreme temperatures, personnel may encounter significant risks, including falls from heights, burns, and frostbite.
Use Case: Unlocatable Vacuum Leaks
As an example, a chemical company has struggled for an extended period to achieve the necessary vacuum level, impacting its production capacity. The factory’s current detection methods are inadequate, requiring the system to be filled with nitrogen to increase pressure before using soapy water to identify leaks. This approach is both time-consuming and labor-intensive, leading to substantial financial losses.
Quickly locate vacuum leaks in minutes

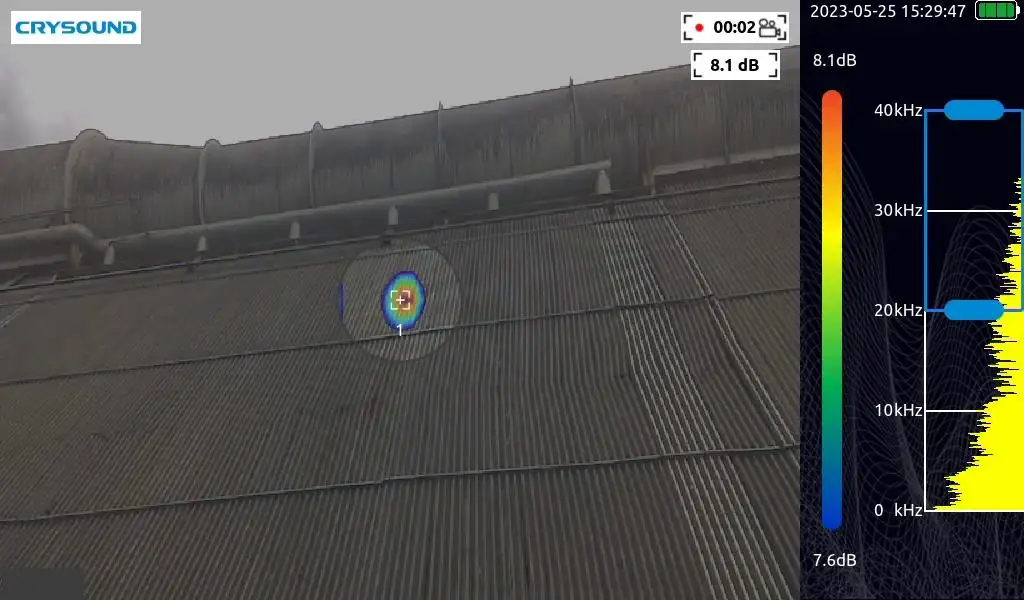

After the onsite technicians conducted an inspection using the acoustic camera, they were able to locate a critical vacuum leak position within minutes.
Reduced unnecessary downtime
Inspection teams efficiently covered large areas in a short time, minimizing both planned and unplanned downtime and reducing overall shutdowns.
Use Case: Minimizing Safety Risks

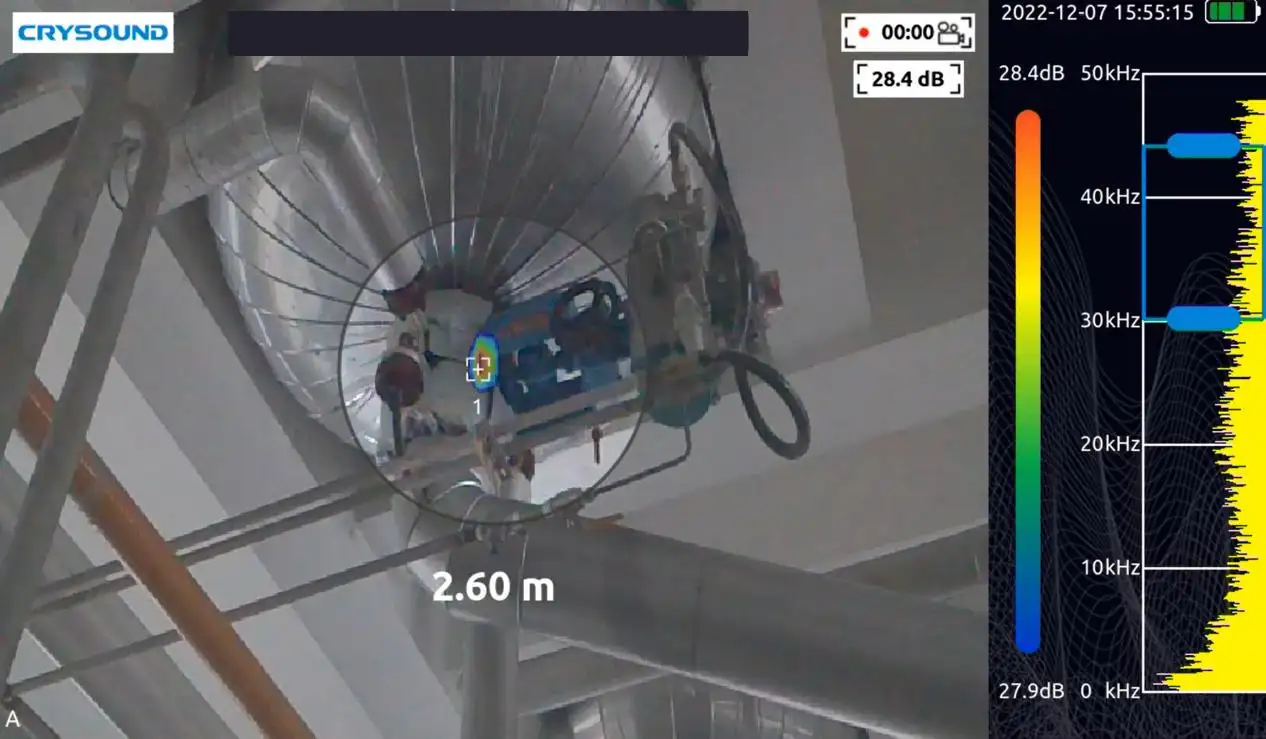

As an example, a coal chemical company’s air-cooling pipeline carries high-temperature gas (70°C) under negative pressure. The thin pipe walls and aging equipment make it prone to leaks. While personnel using ultrasonic listening devices can identify a general area of the leak, they must approach closely to pinpoint the exact location, creating a immediate safety concern.
Quickly locate leaks
The acoustic imaging device features a 62° field of view, enabling it to scan and display multiple leaks simultaneously within its range, resulting in faster and more efficient detection.
No need for users to come in contact with high temperatures
Field personnel can accurately pinpoint the exact location of leaks using an acoustic camera, avoiding the need to endure high temperatures.
Use Case: Quickly Confirm Vacuum Leaks

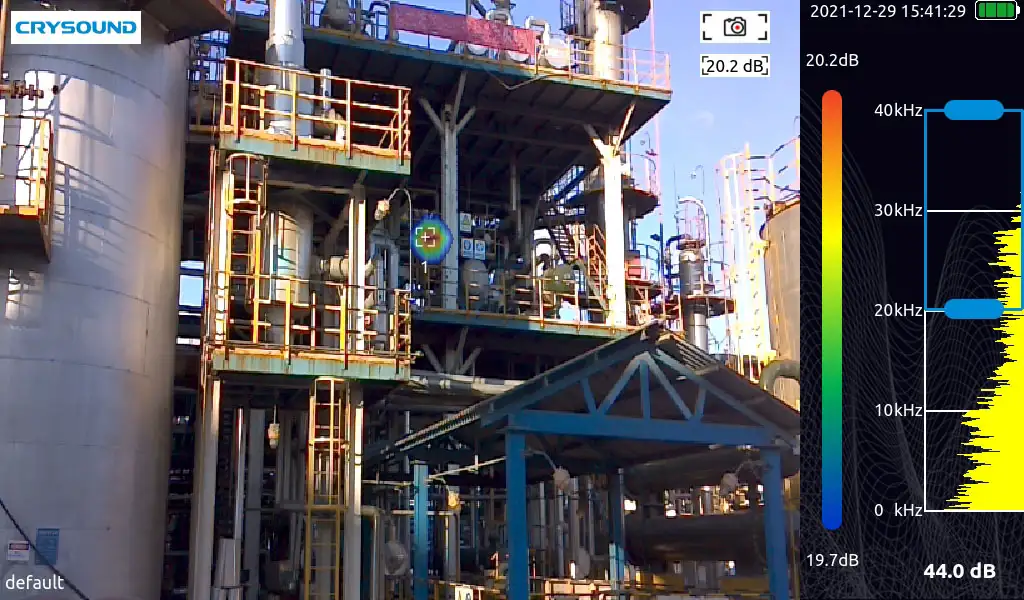

As an example, a photovoltaic manufacturing company is experiencing a sudden drop in airflow within its negative pressure pipelines, which is failing to meet production requirements. Compounding the issue, there are no effective methods for detecting vacuum leaks. The exhaust ducts are both high and complex, and personnel currently assess potential leaks by physically touching the pipes, which exposes them to the risk of burns.
Improve efficiency and safety
Onsite personnel do not need to work at heights, they can use acoustic imaging devices to conduct remote leak detection from a safe distance.
No manual contact required
An acoustic imaging device is a non-contact, intelligent detection tool that eliminates the need for personnel to physically touch the equipment, enhancing safety in the process.
Remote + real-time imaging
Instantly identify leak points in the area, effectively avoiding energy waste and economic losses.
System Devices
CRY8124 Advanced Acoustic Imaging Camera
Microphone array
200 channels MEMS microphone
Frequency range
2k - 100k Hz
SPL range
28 - 132 dB
CRY578 Bluetooth LE Audio Interface
Bluetooth Version
v5.4
Profile
A2DP Source/Sink V1.3, AVRCP Target/Controller V1.6, HFP Hands Free/Audio Gateway V1.7, HSP Headset/Audio Gateway V1.2
Codec
SBC, AAC, aptX Series, LHDC, LDAC, LC3, LC3 plus, mSBC, CVSD
CRY8500 Series SonoCam Pi Acoustic Camera
Mic Array
128, up to 208 channels
Beamforming Frequency
200 - 20k Hz (110cm array)
NAH Frequency
20 - 20k Hz (110cm array)
CRY3018 Sound Calibrator
Frequencies
1000 Hz, 250 Hz
Frequency Accuracy
< 0.5 Hz
Sound Pressure Levels (SPL)
94 dB / 114 dB
