Continuous 24/7 Online Monitoring for PD

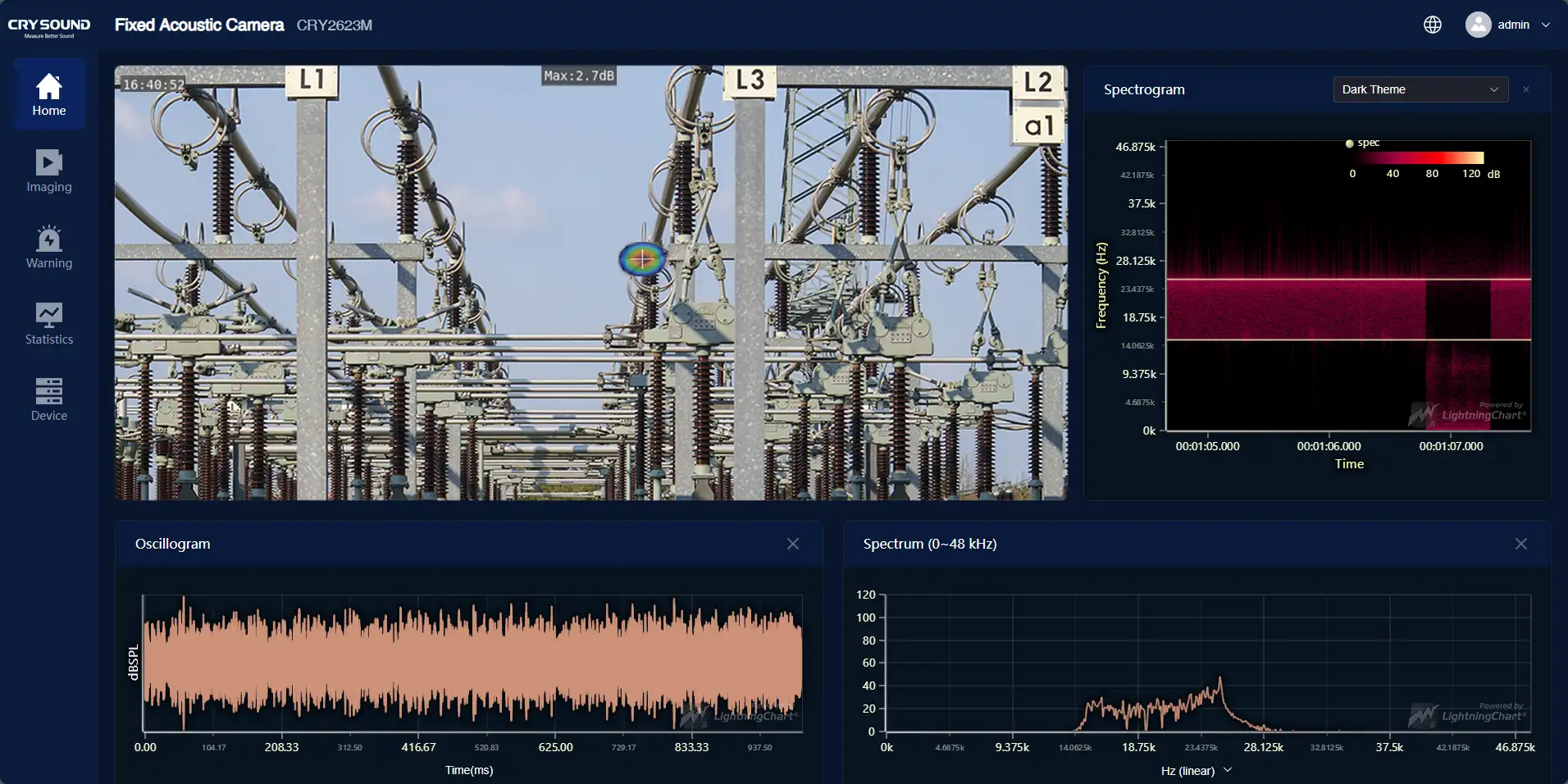

Supporting Software Functions
A fixed acoustic imaging camera is a comprehensive and highly customizable device that integrates multiple mainstream protocols such as RTSP, HTTP, MODBUS, and MQTT, providing developers with a powerful development environment.
Integrate multiple mainstream development protocols
The device supports RTSP, HTTP, MODBUS, MQTT, etc.
Dual platform deployment of applications
The device supports deployment of applications on both web and PC platforms (see below).

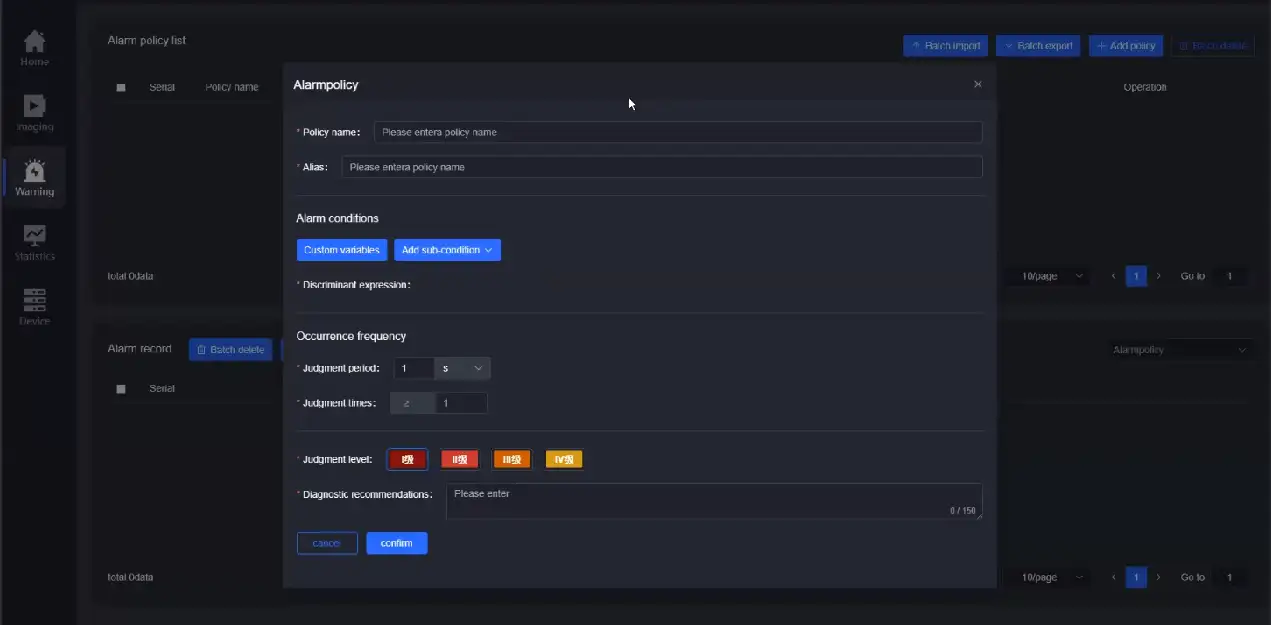

Support Custom Work Settings
The device supports application deployment on both web and PC platforms, delivering visualized sound and image data. Users can also customize a wide range of device settings, including basic configurations such as network, time, and storage; monitoring parameters like cloud mapping, split screen, frequency, and dynamic range; operational modes such as steady state and high sensitivity; and monitoring data settings including logs and alarms.
Custom settings
The device supports many custom settings, Including basic knowledge, work mode settings, etc.
Monitoring parameter settings
Set various monitoring parameters, such as alarm parameters and more.

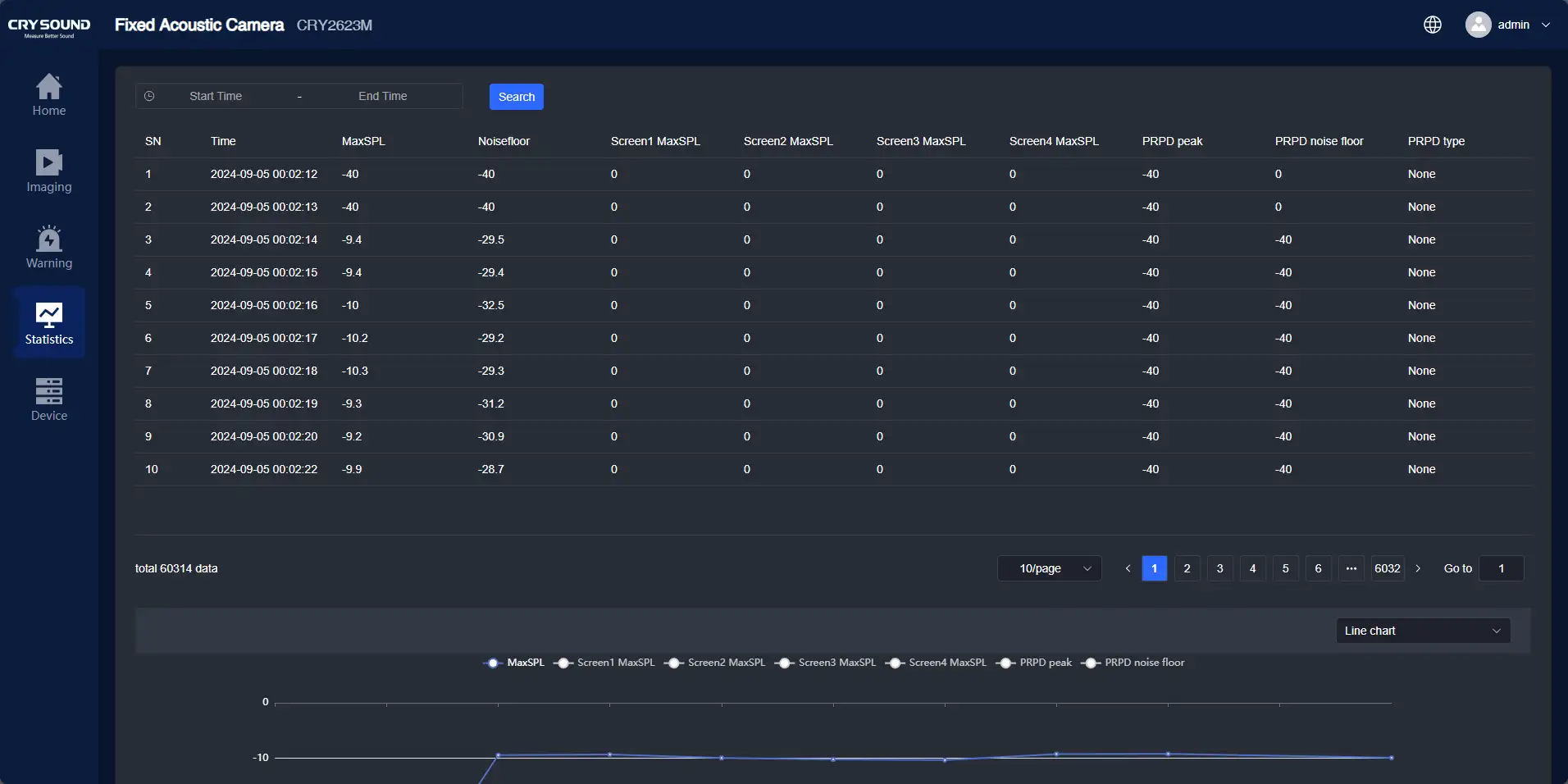

Get 24-hour Online Monitoring and Real-Time Feedback on Equipment
Substation operational safety is a critical aspect of power system safety management. This solution allows the audio-visual security system to be mounted on a bracket or pan-tilt, enabling unmanned, continuous monitoring of multiple key lines. It intelligently delivers partial discharge alarm notifications with precise positioning, significantly reducing the risk of safety incidents.
24h online monitoring
Maintain safe operations of the power system throughout the day.
Intelligent push of alarm information
Reduce the risk of safety accidents.
System Devices
CRY8124 Advanced Acoustic Imaging Camera
Microphone array
200 channels MEMS microphone
Frequency range
2k - 100k Hz
SPL range
28 - 132 dB
CRY578 Bluetooth LE Audio Interface
Bluetooth Version
v5.4
Profile
A2DP Source/Sink V1.3, AVRCP Target/Controller V1.6, HFP Hands Free/Audio Gateway V1.7, HSP Headset/Audio Gateway V1.2
Codec
SBC, AAC, aptX Series, LHDC, LDAC, LC3, LC3 plus, mSBC, CVSD
CRY8500 Series SonoCam Pi Acoustic Camera
Mic Array
128, up to 208 channels
Beamforming Frequency
200 - 20k Hz (110cm array)
NAH Frequency
20 - 20k Hz (110cm array)
CRY3018 Sound Calibrator
Frequencies
1000 Hz, 250 Hz
Frequency Accuracy
< 0.5 Hz
Sound Pressure Levels (SPL)
94 dB / 114 dB
